Radio/Navigation System Schematics

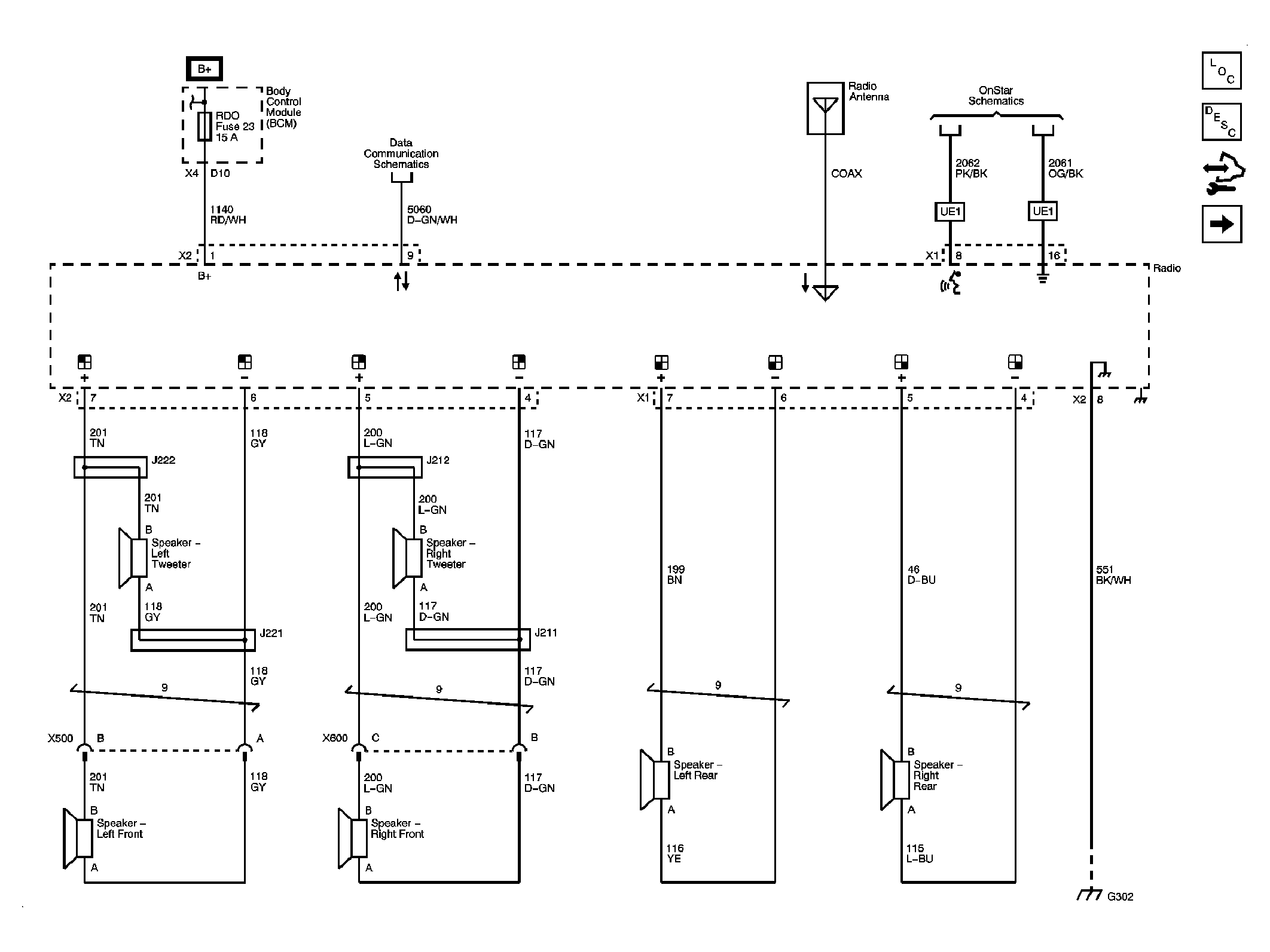

Fig 1: Radio, Speakers (UW5)
GM2049629Courtesy of GENERAL MOTORS CORP.

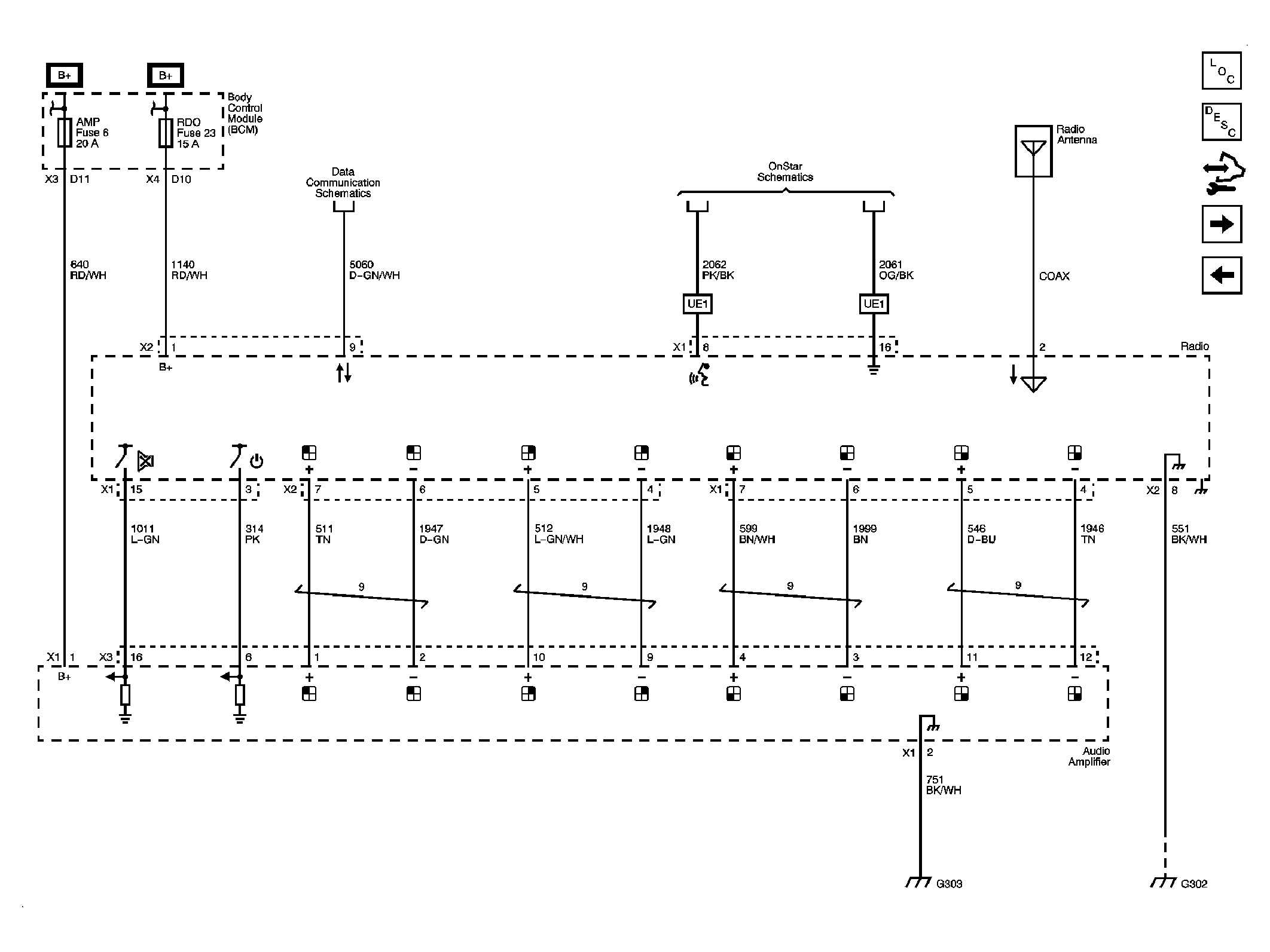

Fig 2: Amplifier Power, Speakers (UQ3) (1 of 2)
GM2049631Courtesy of GENERAL MOTORS CORP.

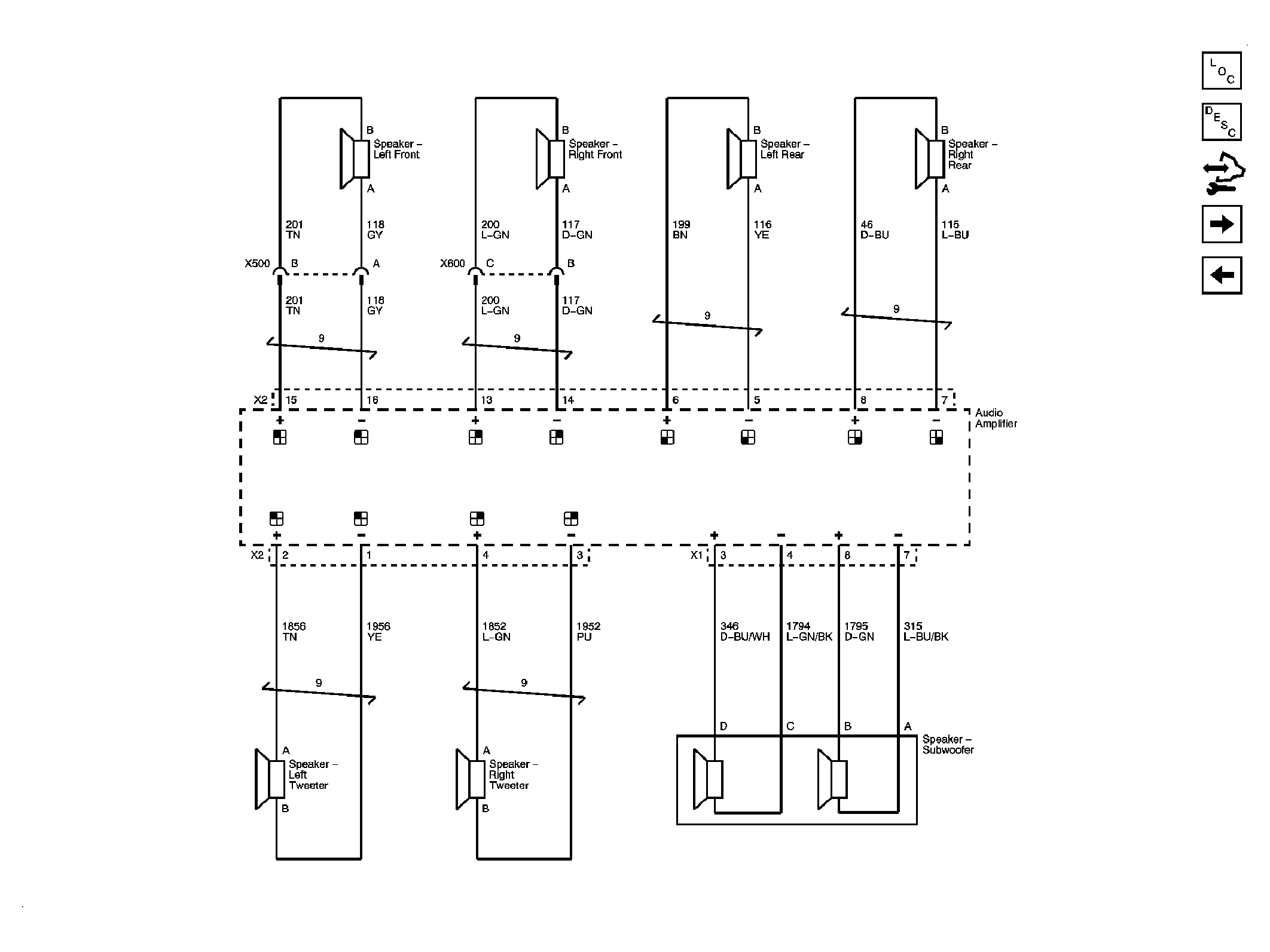

Fig 3: Amplifier Power, Speakers (UQ3) (2 of 2)
GM2049633Courtesy of GENERAL MOTORS CORP.

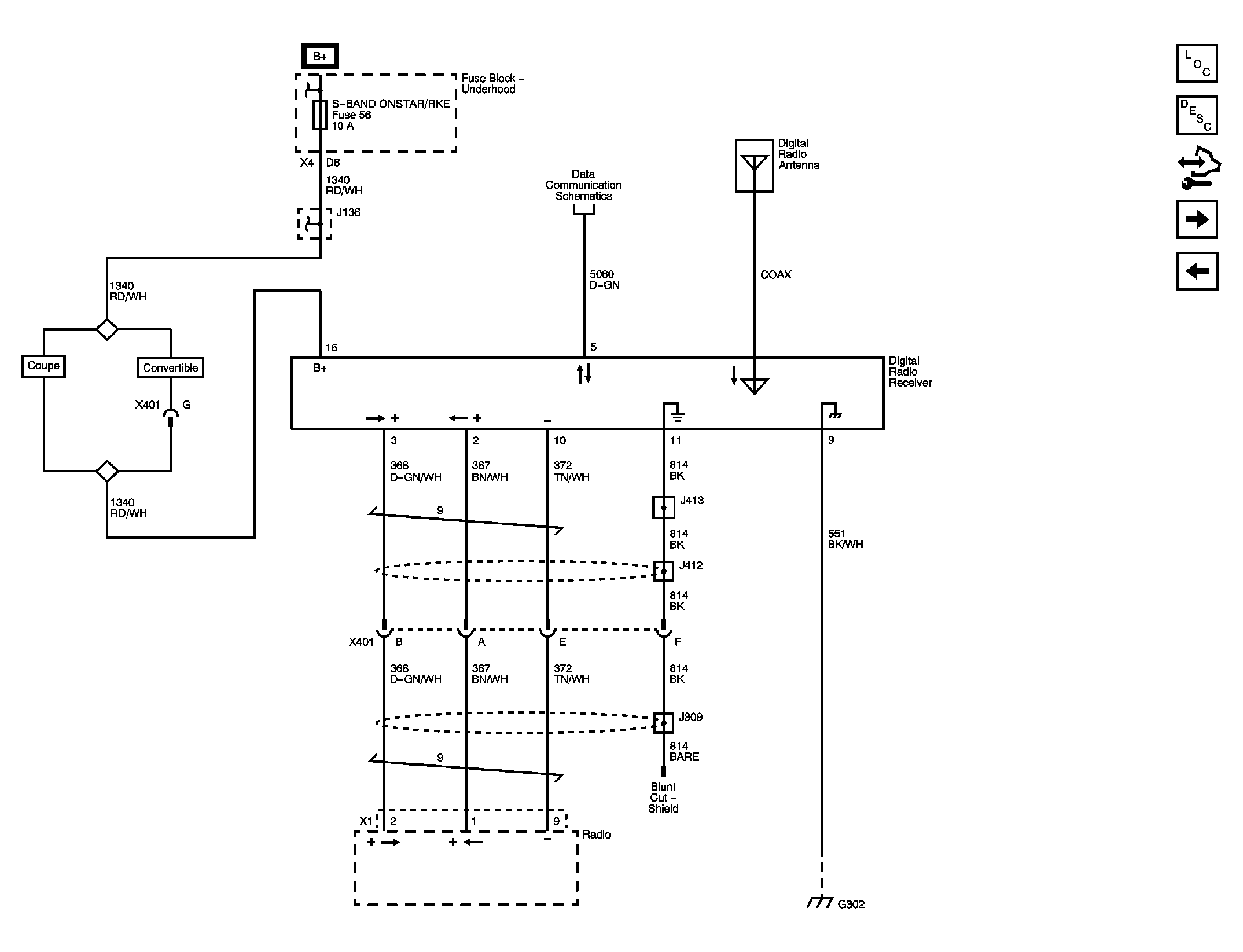

Fig 4: Digital Radio Receiver (U2K)
GM2049635Courtesy of GENERAL MOTORS CORP.

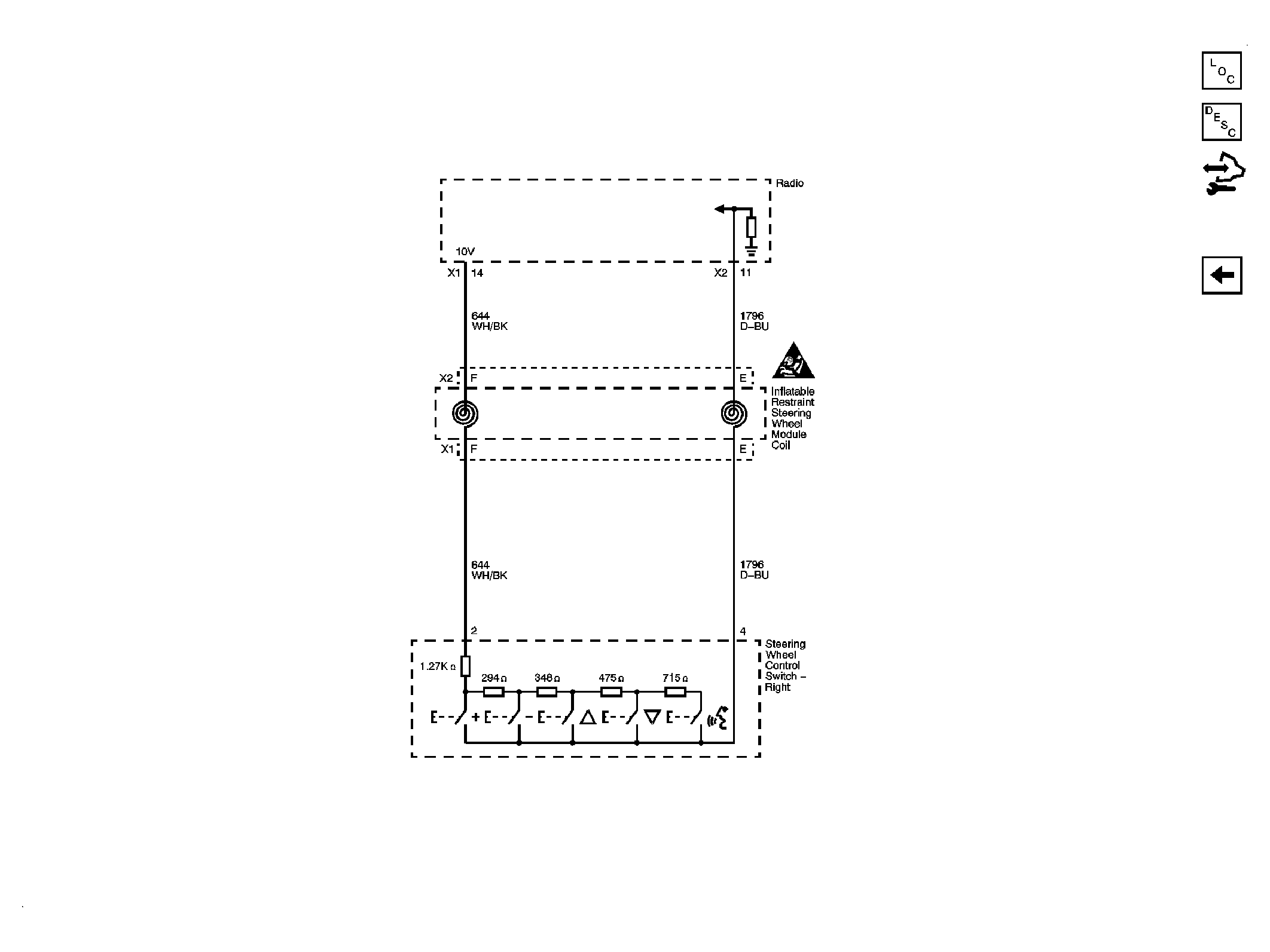

Fig 5: Redundant Radio Controls
GM2049638Courtesy of GENERAL MOTORS CORP.
