Roof Lift Off Panel/Window Latch Handle Replacement

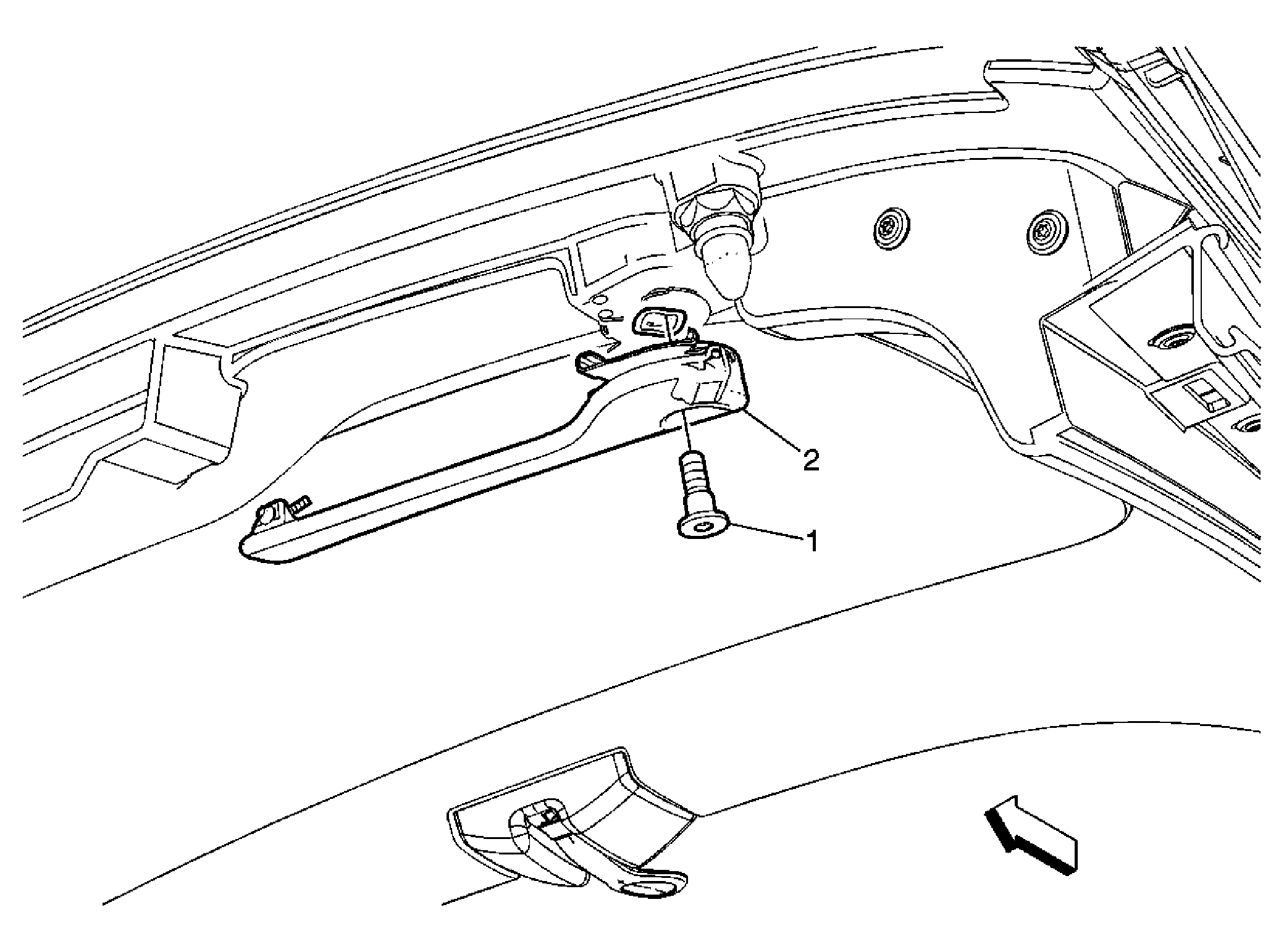

Fig 1: Identifying Roof Lift Off Panel/Window Latch Handle

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Roof Lift Off Panel Front Latch Handle Fastener CAUTION: Refer to Fastener Caution Tighten: 18 N.m (13 lb ft)
2	Roof Lift Off Panel Front Latch Handle Procedure Install the wave washer on the top of the latch handle. Align the front latch handles in a closed position before installing the bolt.

Callout

Component Name

Roof Lift Off Panel Front Latch Handle Fastener

CAUTION: Refer to Fastener Caution

Tighten: 18 N.m (13 lb ft)

Roof Lift Off Panel Front Latch Handle

Procedure
