Cruise Control Schematics
Cruise Control Schematics

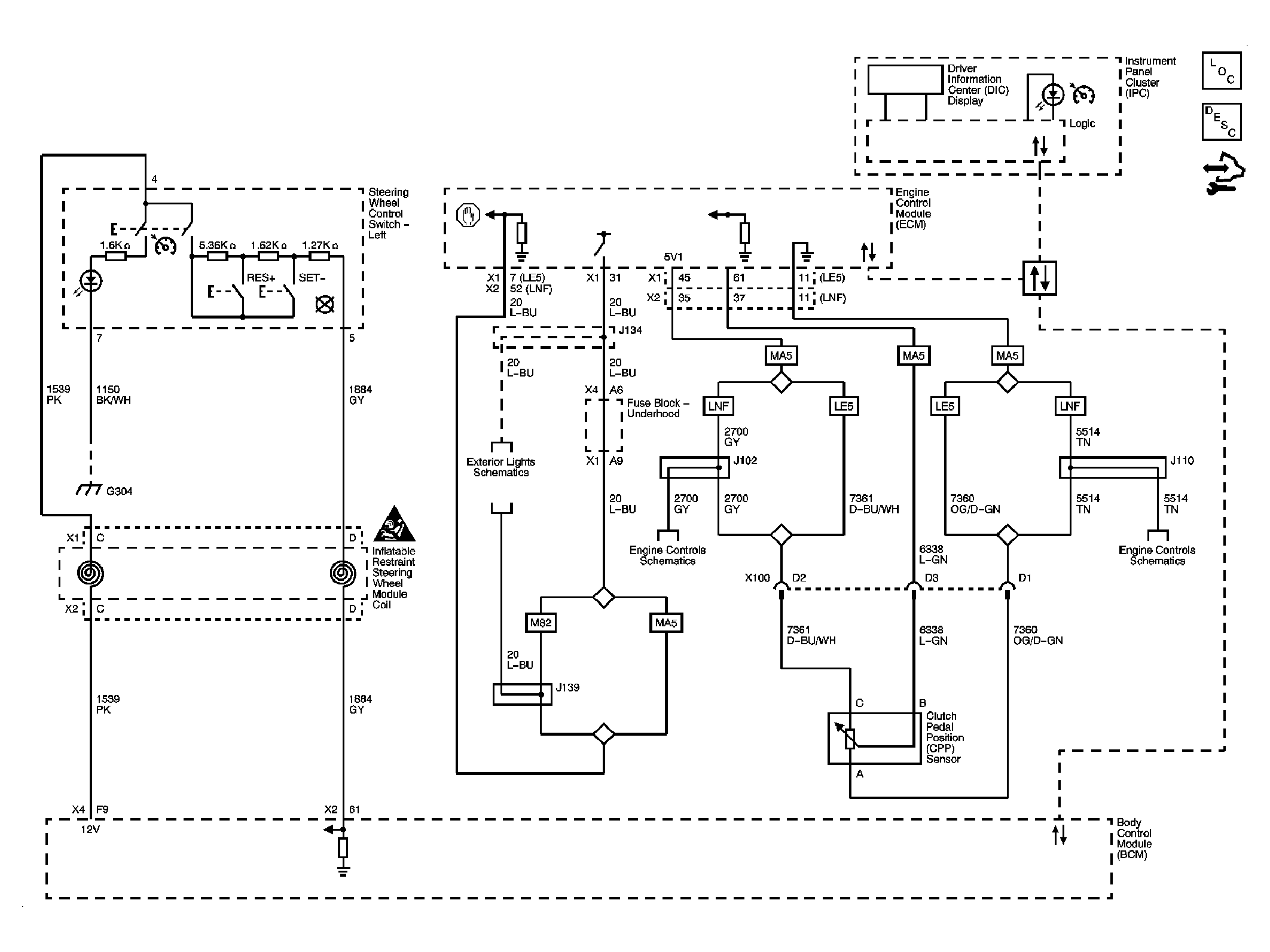

Fig 1: Cruise Control
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
