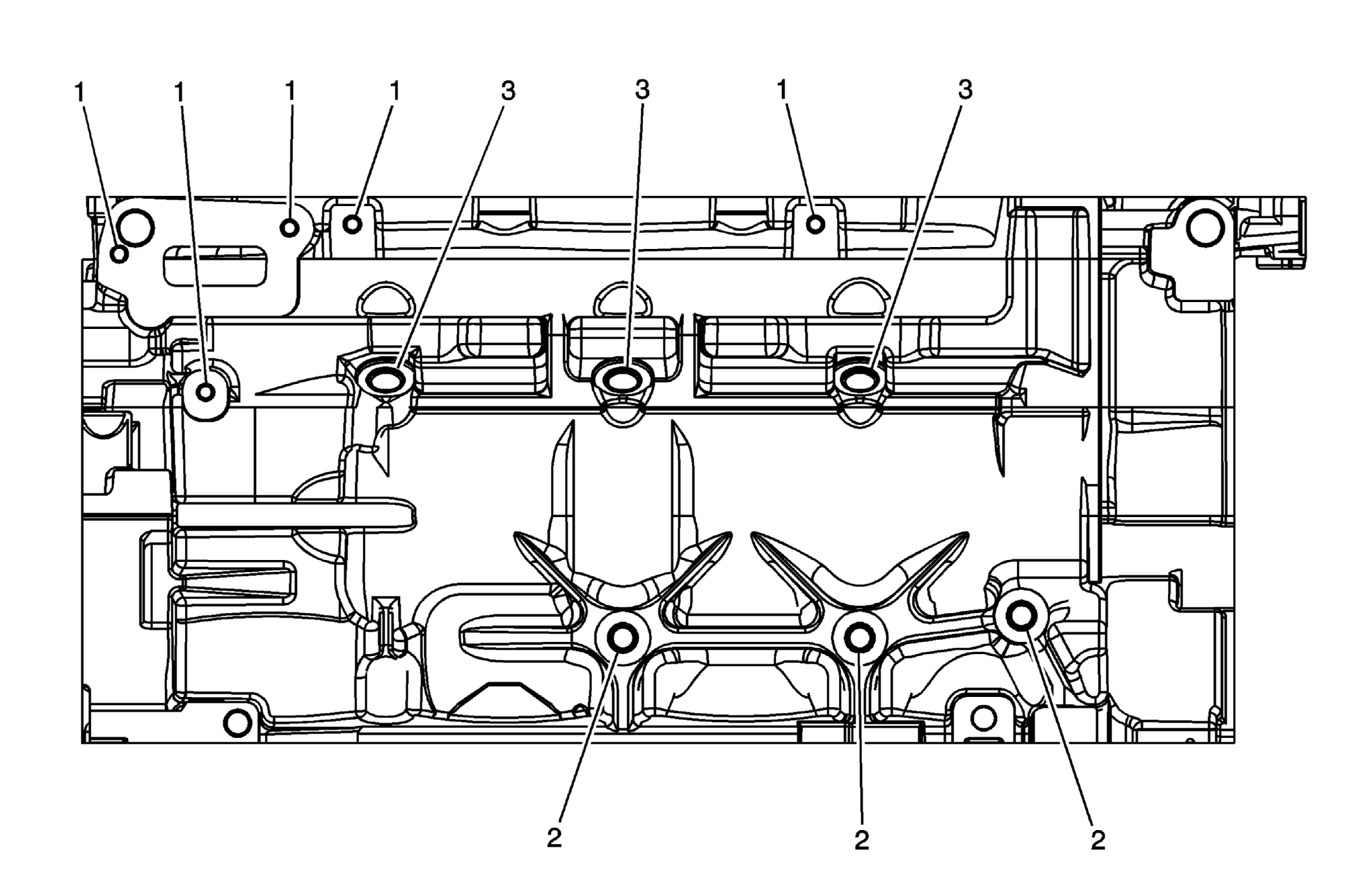

Engine Block - Right Side View
Courtesy of GENERAL MOTORS CORP.
| Service Call Out |
Thread Size |
Insert |
Drill |
Counterbore Tool |
Tap |
Driver |
Drill Depth (Maximum) |
Tap Depth (Maximum) |
| J 42385-850 |
MM |
(IN) |
MM |
(IN) |
| 1 |
M6 x 1 |
205 |
201 |
202 |
203 |
204 |
20.5 |
0.807 |
16 |
0.63 |
| 2 |
M10 x 1.5 |
215 |
211 |
212 |
213 |
214 |
23.5 |
0.925 |
18.5 |
0.73 |
| 3 |
M12 x 1.75 |
865 |
856 |
857 |
858 |
859 |
19.5 |
0.768 |
12.5 |
0.49 |
