Installation Procedure

    Fig 1: View Of Ignition Coils
    GM1578474Courtesy of GENERAL MOTORS CORP.
  1. Install the ignition coil(s).
    2. CAUTION: Refer to Fastener Caution .
  2. Install the ignition coil bolt(s) and tighten to 10 N.m (89 lb in).

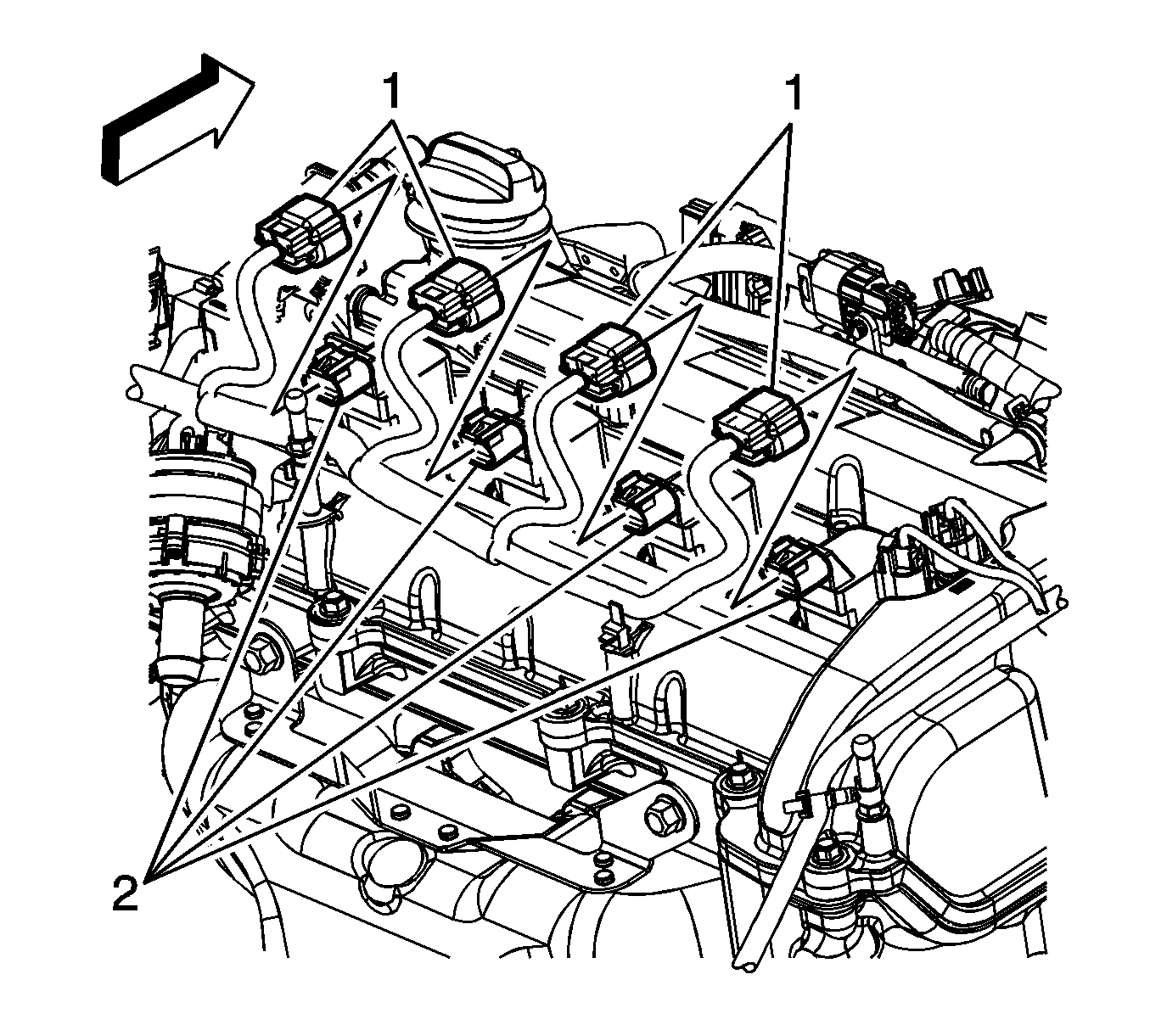

    3. Fig 2: Identifying Ignition Coils & Connectors
    GM1890099Courtesy of GENERAL MOTORS CORP.
  3. Connect the engine wiring harness electrical connector(s) (1) to the ignition coil(s) (2).
  4. Install the air cleaner outlet duct. Refer to Air Cleaner Outlet Duct Replacement .
