Air Cleaner Assembly Replacement

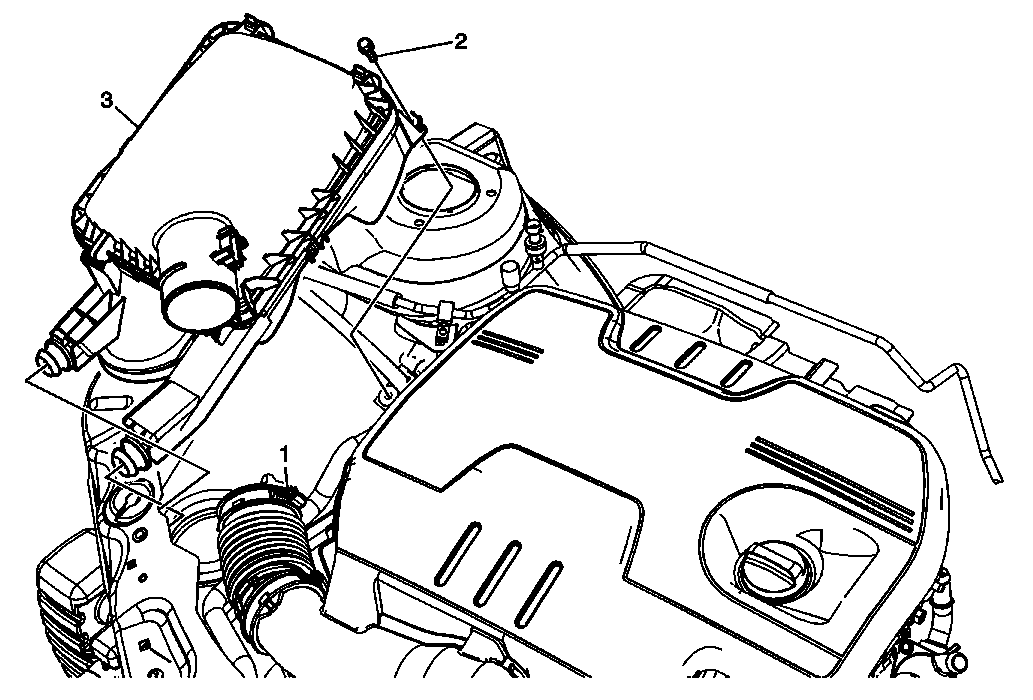

Fig 1: Identifying Air Cleaner Assembly (2nd Design) Components

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
Preliminary Procedure: Remove the mass airflow (MAF) sensor. Refer to Mass Airflow Sensor with Intake Air Temperature Sensor Replacement .
1	Air Cleaner Outlet Duct Clamp CAUTION: Refer to Fastener Caution . Procedure: Loosen the clamp in order to slide the duct off. Tighten: 4 N.m (35 lb in)
2	Air Cleaner Bolt Tighten: 10 N.m (89 lb in)
3	Air Cleaner Assembly
