Installation Procedure

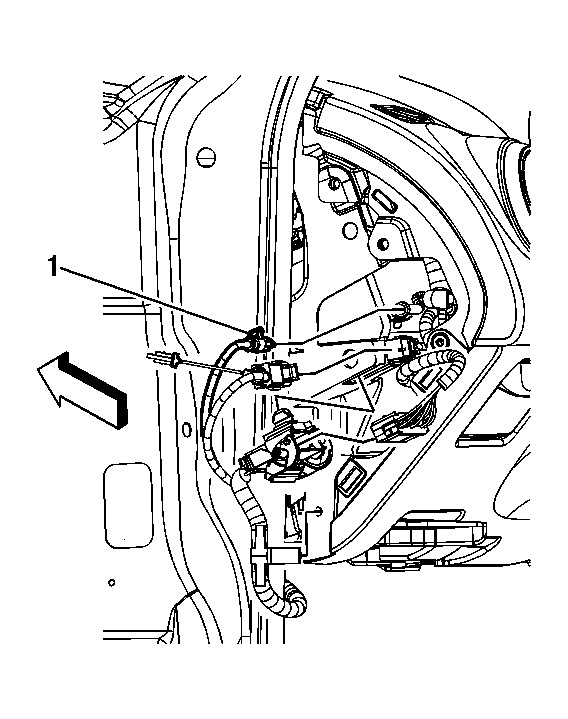

    Fig 1: Identifying Antenna Cable
    GM1792830Courtesy of GENERAL MOTORS CORP.
  1. Install the coaxial antenna cables into the vehicle.
  2. Use electrical tape, or tie straps, to secure the antenna extension cable to the wiring harness.

    Secure the cable to the harness at least every 150 mm (6 in).

  3. Connect the antenna lead (1) to the I/P extension cable.

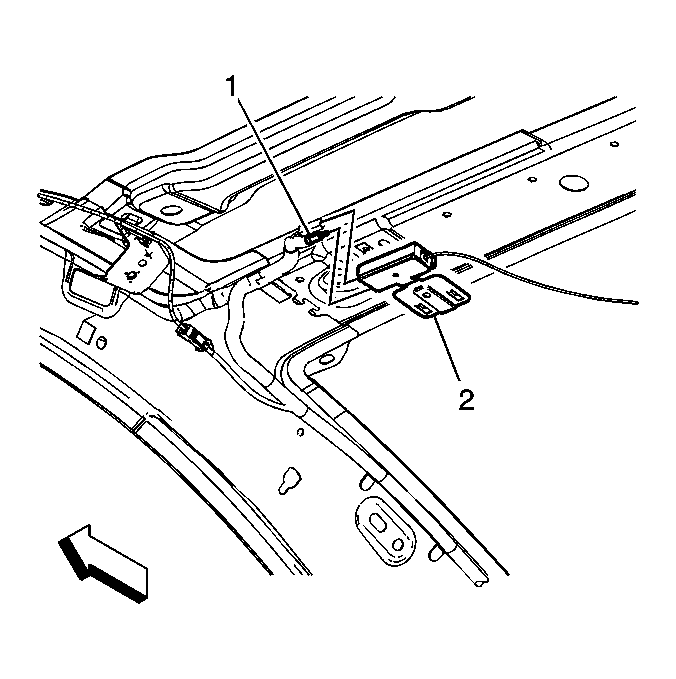

    4. Fig 2: Identifying Cable Lead & Antenna Module/Antenna Base
    GM1791931Courtesy of GENERAL MOTORS CORP.
  4. Connect the antenna lead (1) to the antenna module/antenna base (2).
  5. Install the headliner. Refer to Headlining Trim Panel Replacement .
  6. Install the carpet. Refer to Front Floor Panel Carpet Replacement and Rear Floor Panel Carpet Replacement .
  7. Install the left hand I/P outer trim cover. Refer to Instrument Panel Outer Trim Cover Replacement .
