Removal Procedure

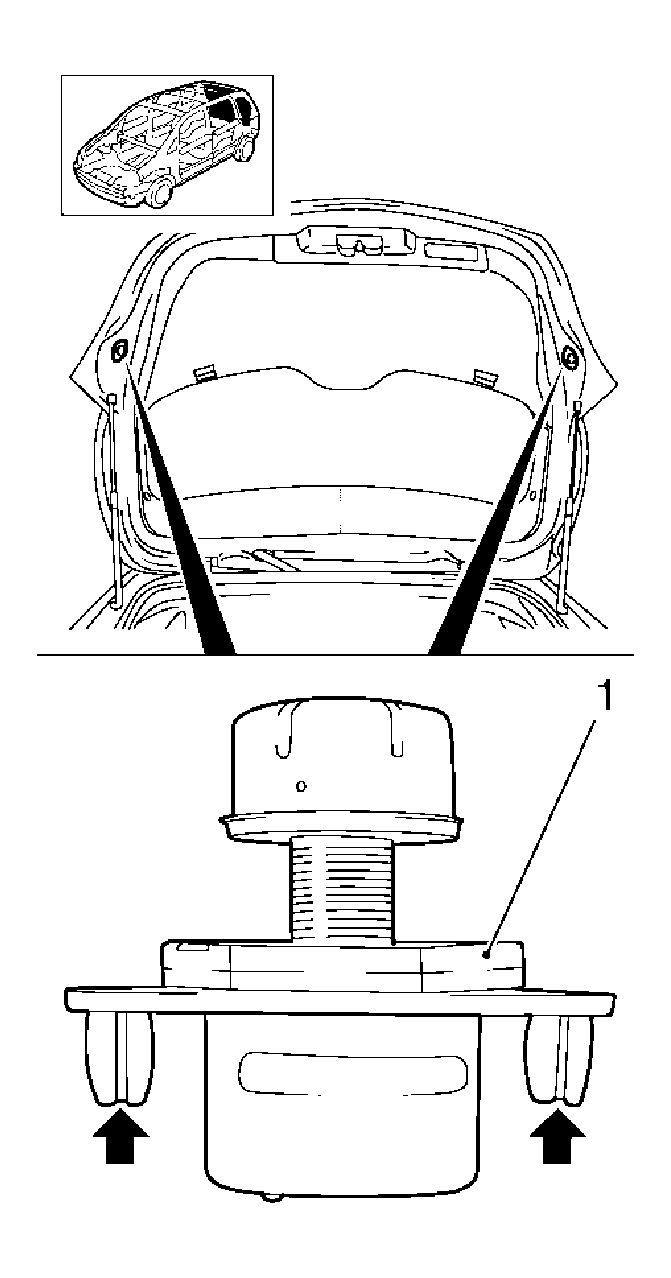

    Fig 1: View Of Liftgate Bumper And Push Pins
    GM1947378Courtesy of GENERAL MOTORS CORP.
  1. Remove the push pins (2).
  2. Remove the bumper (1).
