Removal Procedure

  1. Remove the front side door trim panel. Refer to Front Side Door Trim Panel Replacement (Coupe) or Front Side Door Trim Panel Replacement (Sedan) .

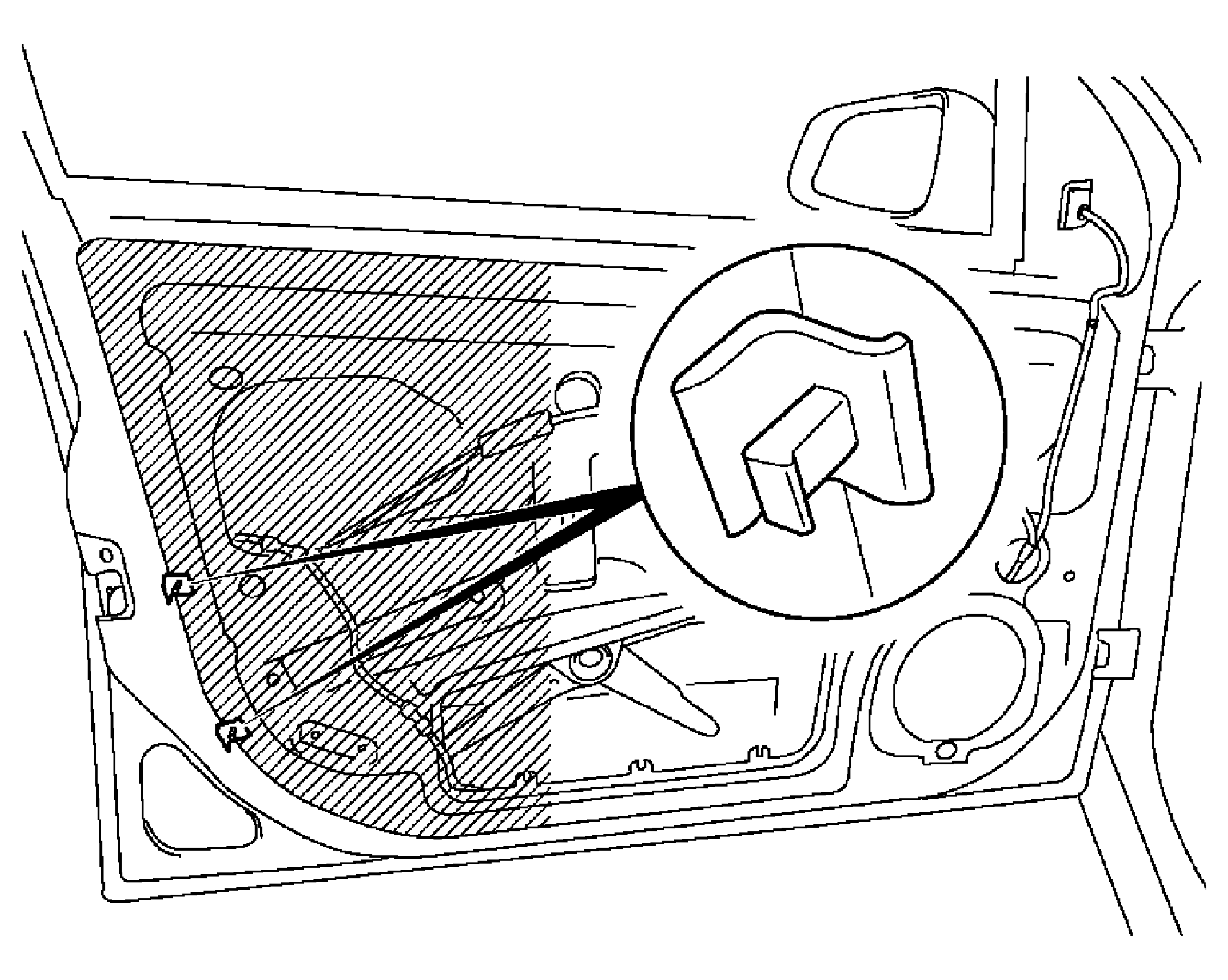

    2. Fig 1: View Of Water Vapor Barrier
    GM1937550Courtesy of GENERAL MOTORS CORP.
  2. Partly loosen the water vapor barrier.
    • Remove the 2 front door retainer base inner paneling.
    • Loosen the water vapor barrier in the area of the hatching.
  3. Disconnect the lock catch wiring harness plug.

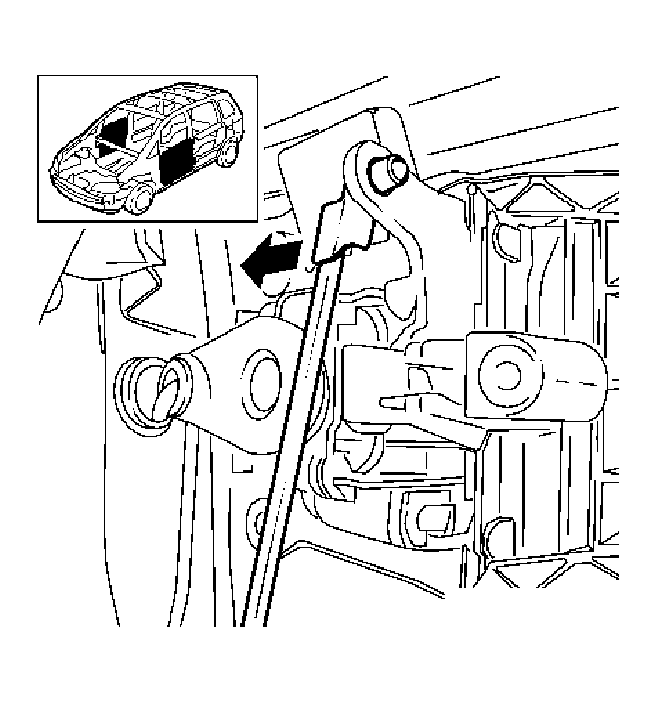

    4. Fig 2: View Of Fastening Pins Between Door Handle And Lock
    GM1941020Courtesy of GENERAL MOTORS CORP.
  4. Remove the fastening pins between door handle and lock.

    Remove the plastic retainer and release the fastening pins.

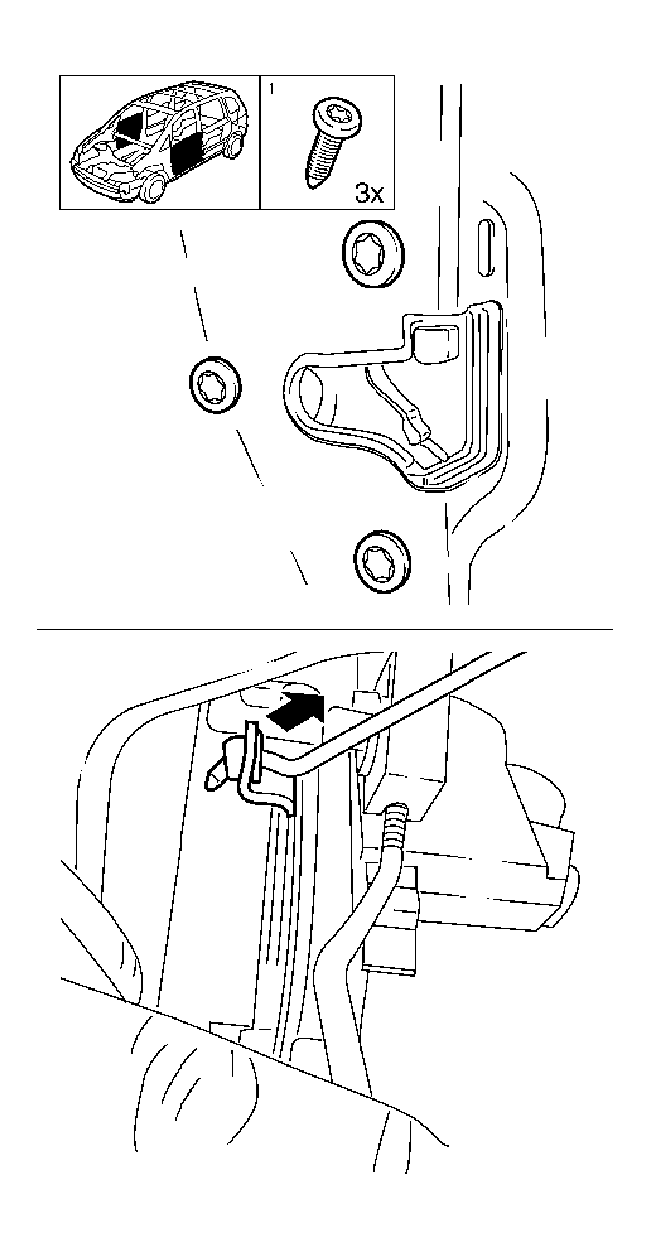

    5. Fig 3: View Of Front Door Lock Bolts
    GM1941191Courtesy of GENERAL MOTORS CORP.
  5. Remove the front door lock.
    • Remove the 3 bolts.
    • Disconnect the connector linkage of the lock cylinder and remove the lock.

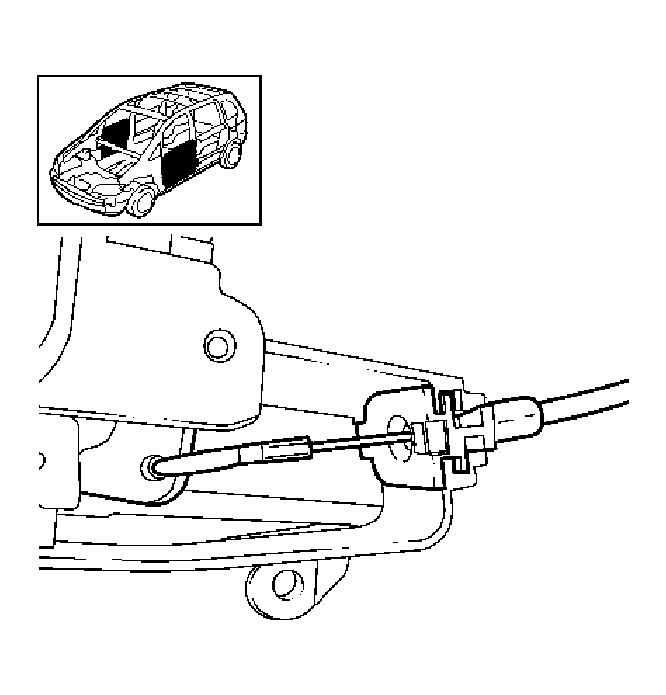

    6. Fig 4: View Of Cable From Front Door Inner Door Actuation
    GM1941193Courtesy of GENERAL MOTORS CORP.
  6. Remove the cable from the inner door actuation.

    Disconnect the cable from the bracket and take out of lock.
