Removal Procedure
WARNING:
High voltage-Do not touch components in the xenon dipped beam when the dipped beam is switched on. Ignition and light switch OFF.
NOTE:
When replacing the control unit, before removing the control unit, carry out a "Reset" using TECH 2. For reprogramming procedures, refer to Control Module References
.
- Disconnect the battery.
- Remove the headlamp control module.

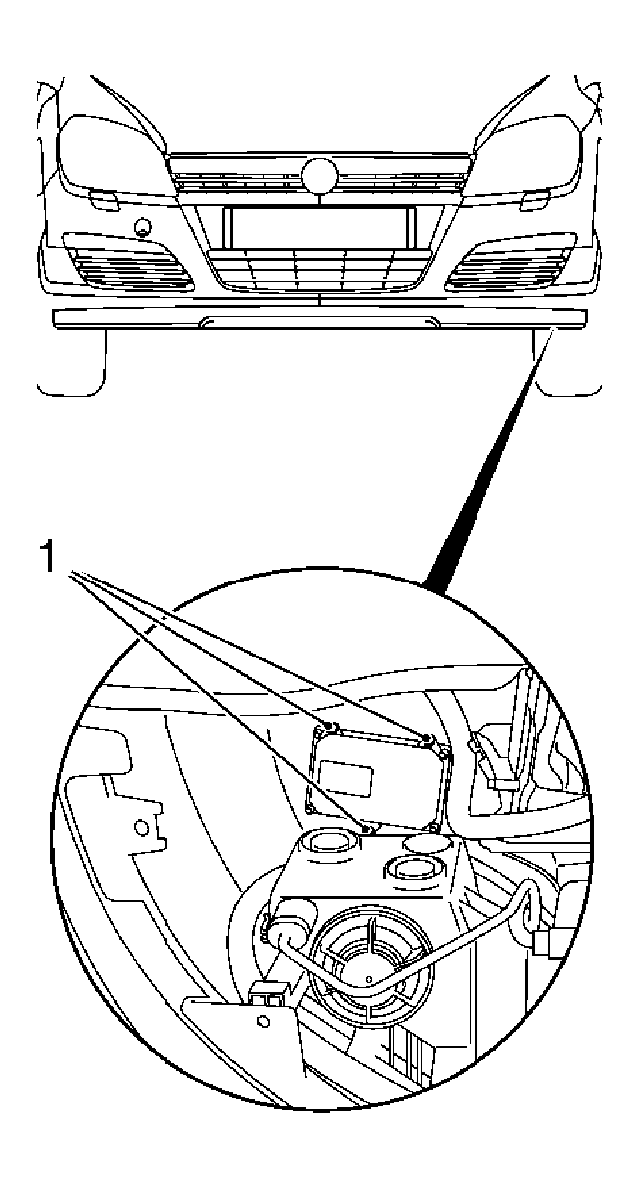

- Remove the 3 bolts (1).
- Remove the control unit.
WARNING:
Refer to Battery Disconnect Warning
.
