Removal Procedure

  1. Turn the steering wheel from the straight-ahead position by 90 degrees to the left.
    2. Fig 1: View Of Steering Wheel Control Switch Panel Bolt
    GM1950613Courtesy of GENERAL MOTORS CORP.
  2. Release the steering wheel control switch panel.

    Remove the bolt (1).

  3. Turn the steering wheel from the straight ahead position by 90 degrees to the right.

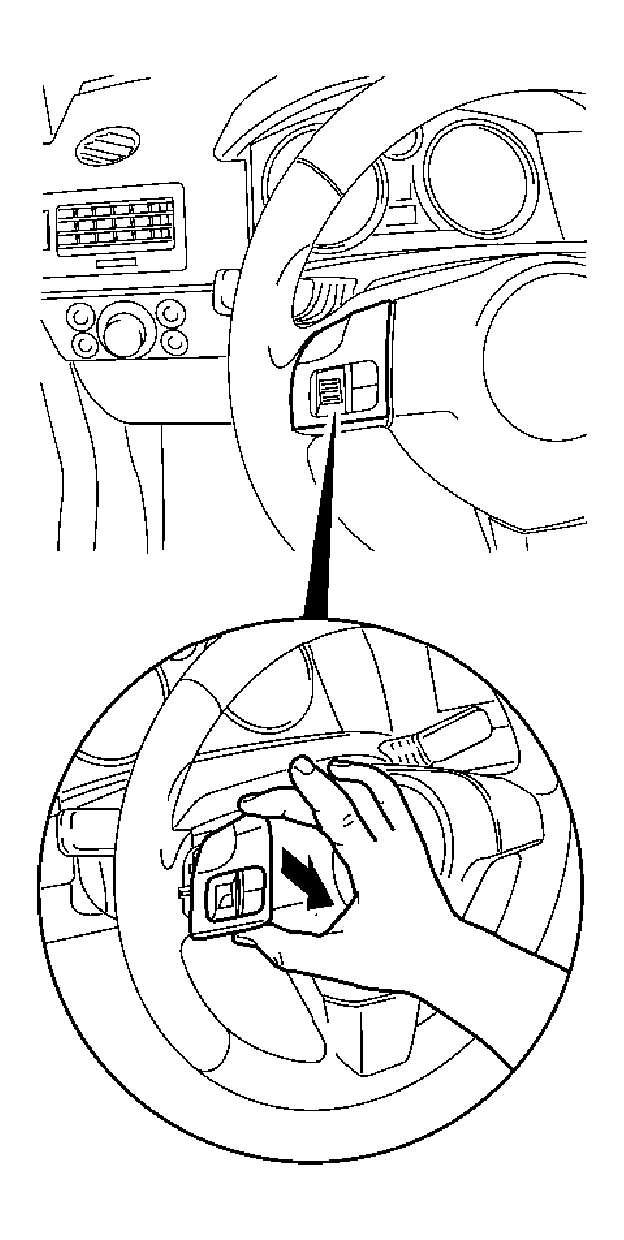

    4. Fig 2: View Of Steering Wheel Control Switch Panel
    GM1950614Courtesy of GENERAL MOTORS CORP.
  4. Remove the panel of the steering wheel control switch panel.

    Remove the panel in the direction of the arrow.

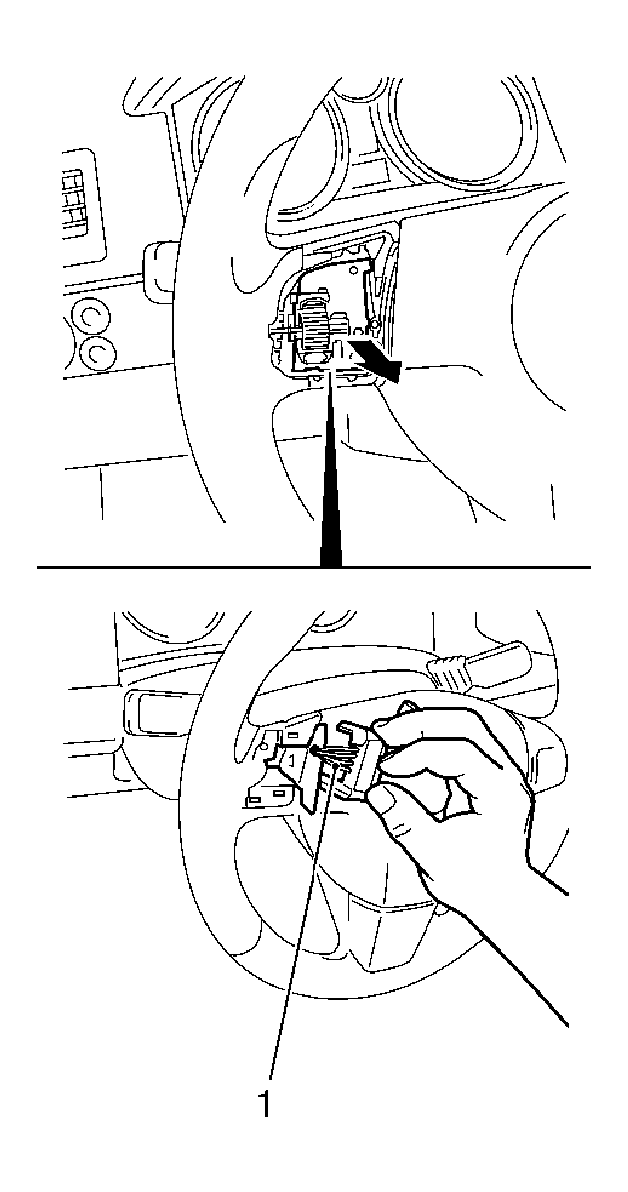

    5. Fig 3: View Of Switch Plate And Wiring Harness Plug
    GM1950615Courtesy of GENERAL MOTORS CORP.
  5. Remove the switch plate.
    • Release the switch plate.
    • Disconnect the wiring harness plug.
  6. The second switch is removed and installed similar.
