Moveable Window Schematics

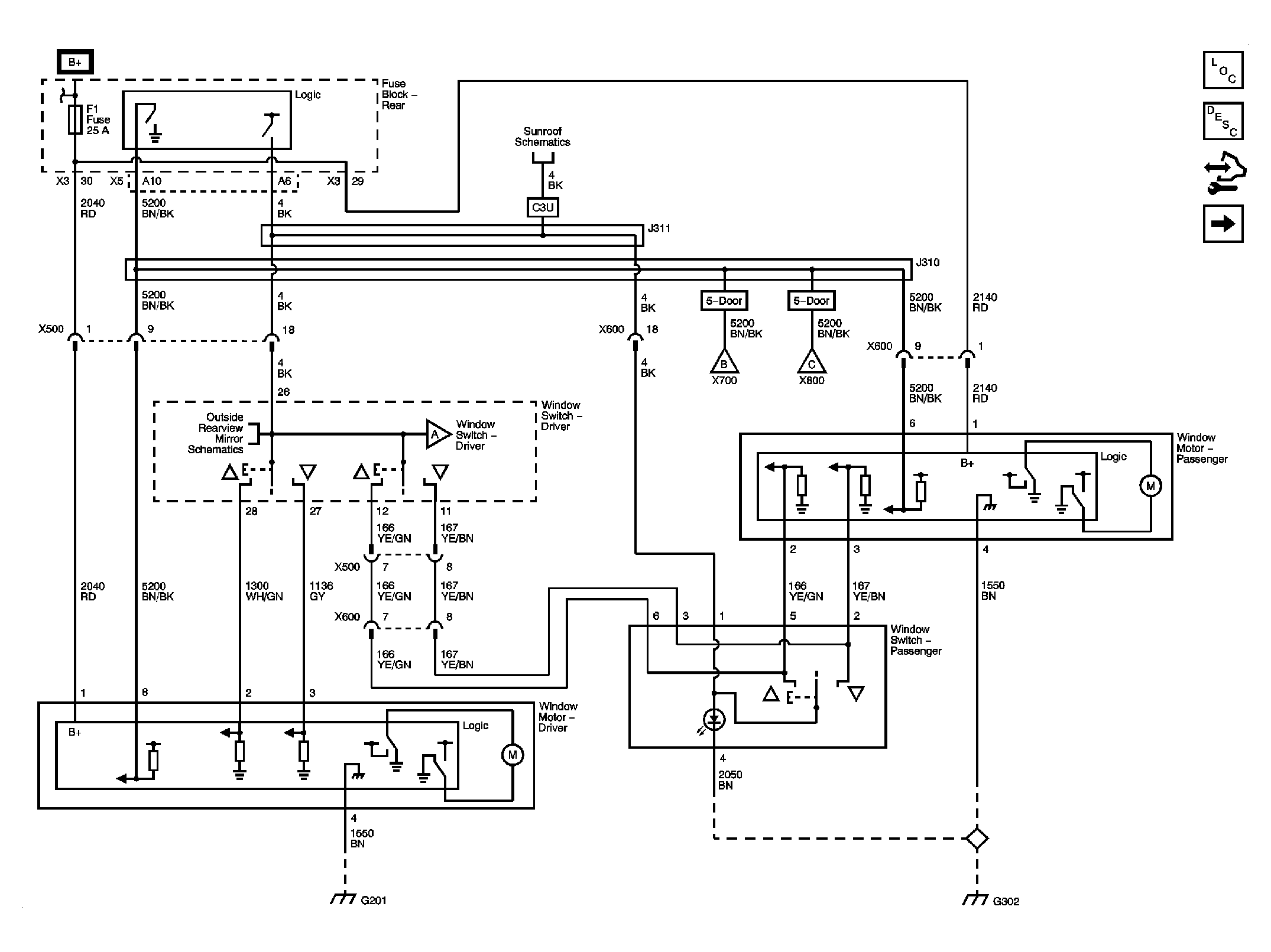

Fig 1: Driver/Passenger Window Motors and Switches

GM2151388

Courtesy of GENERAL MOTORS CORP.

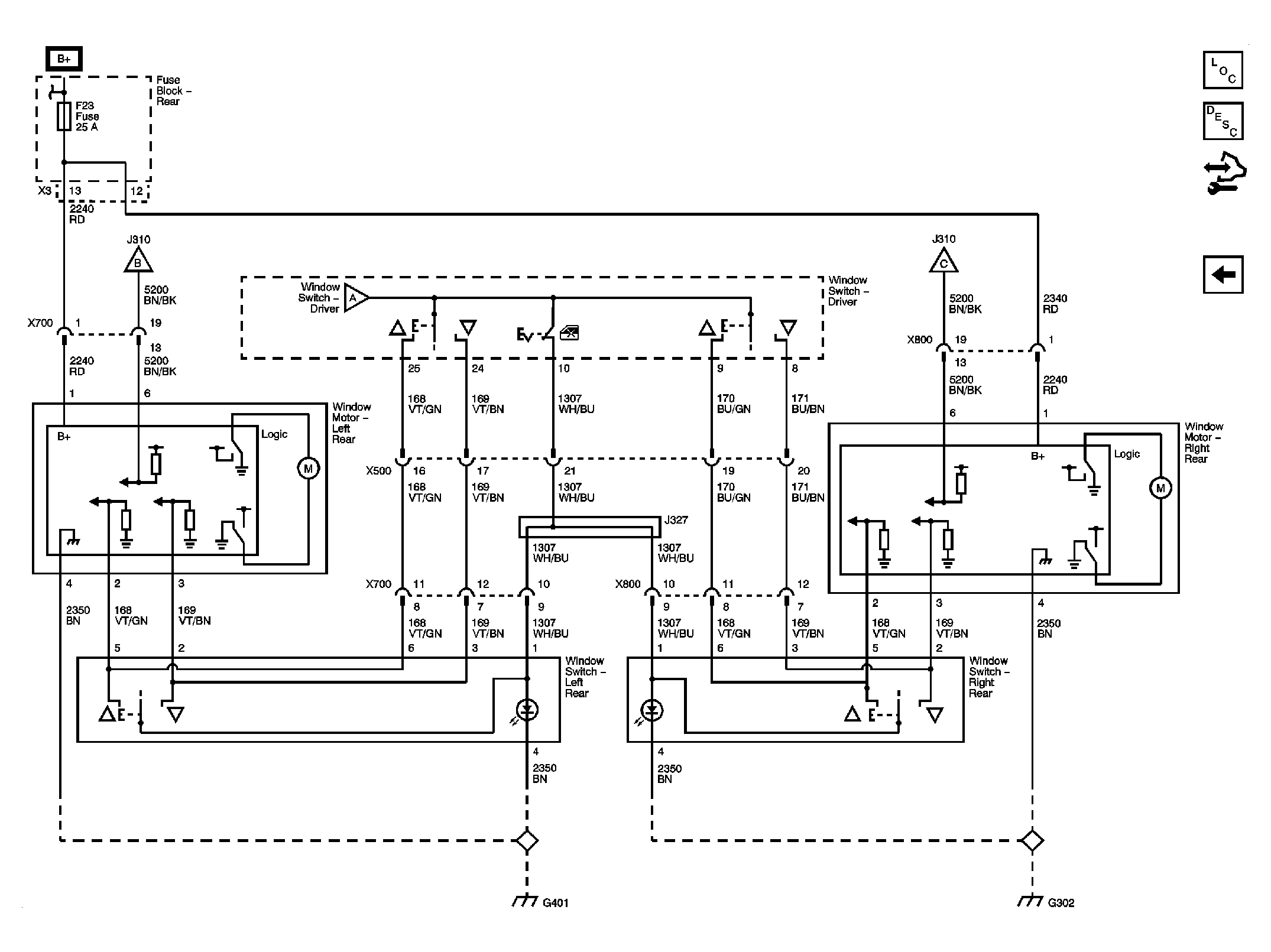

Fig 2: Left/Right Rear Window Motors and Switches

GM2151397

Courtesy of GENERAL MOTORS CORP.
