Electrical Component Locator: Motors
MOTORS LOCATION
| Component | Location |
|---|---|
| Air Temperature Actuator (1) | Right side of HVAC unit. See Figure. |
| Blower Motor (3) | Right side of dash. See Figure. |
| Brake Booster Pump Motor | Left of power steering control module. |
| Door Lock Motor (Driver/Passenger) (6) | Respective front door. See Figure. |
| Door Lock Motor (Left/Right Rear) (4) | Respective rear door. See Figure. |

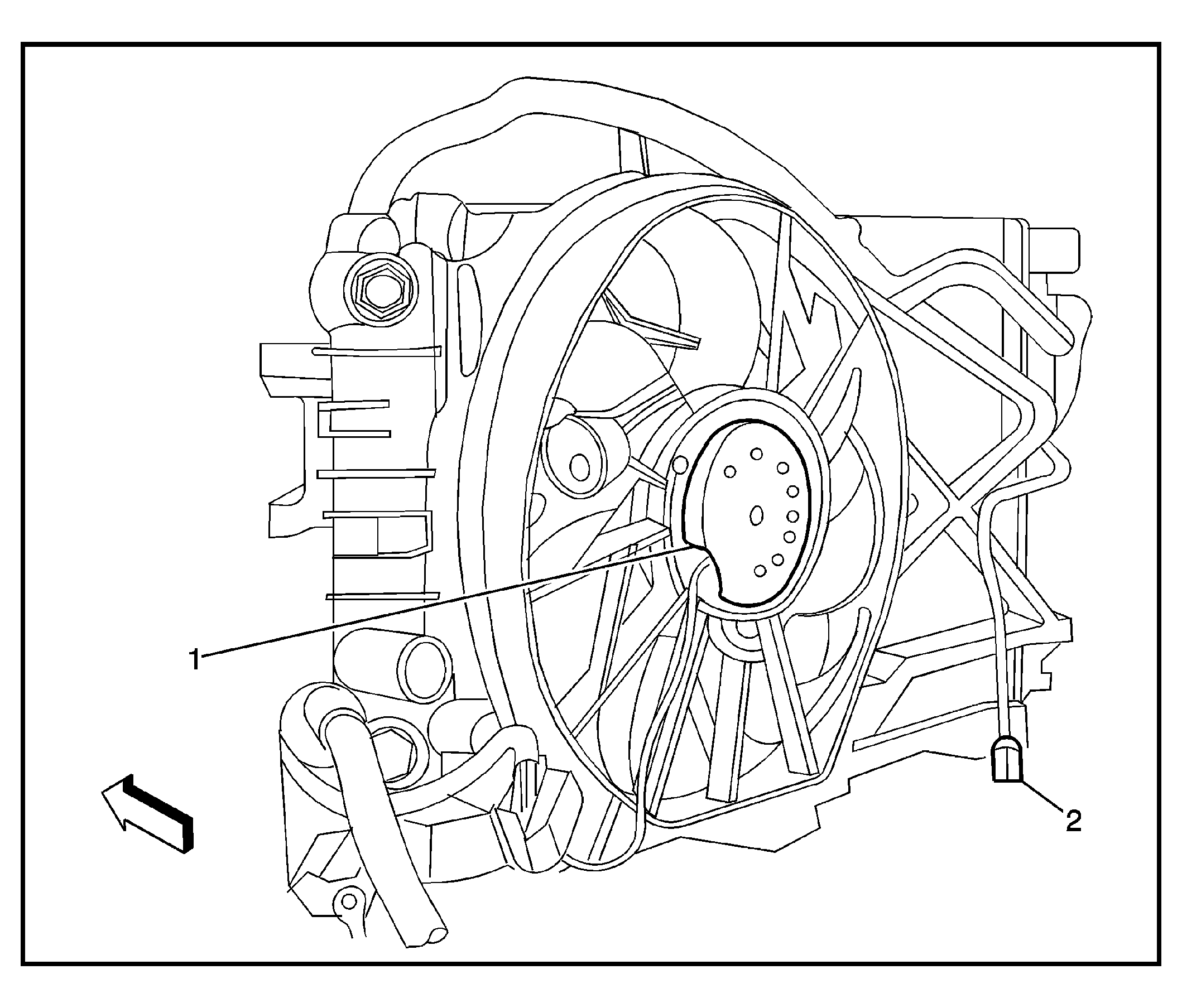

| Engine Cooling Fan (Left) (1) | Behind left side of radiator. See Figure. |
| Engine Cooling Fan (Right) (2) | Behind right side of radiator. See Figure. |
| Engine Cooling Fan (1) | Behind radiator. See Figure. |

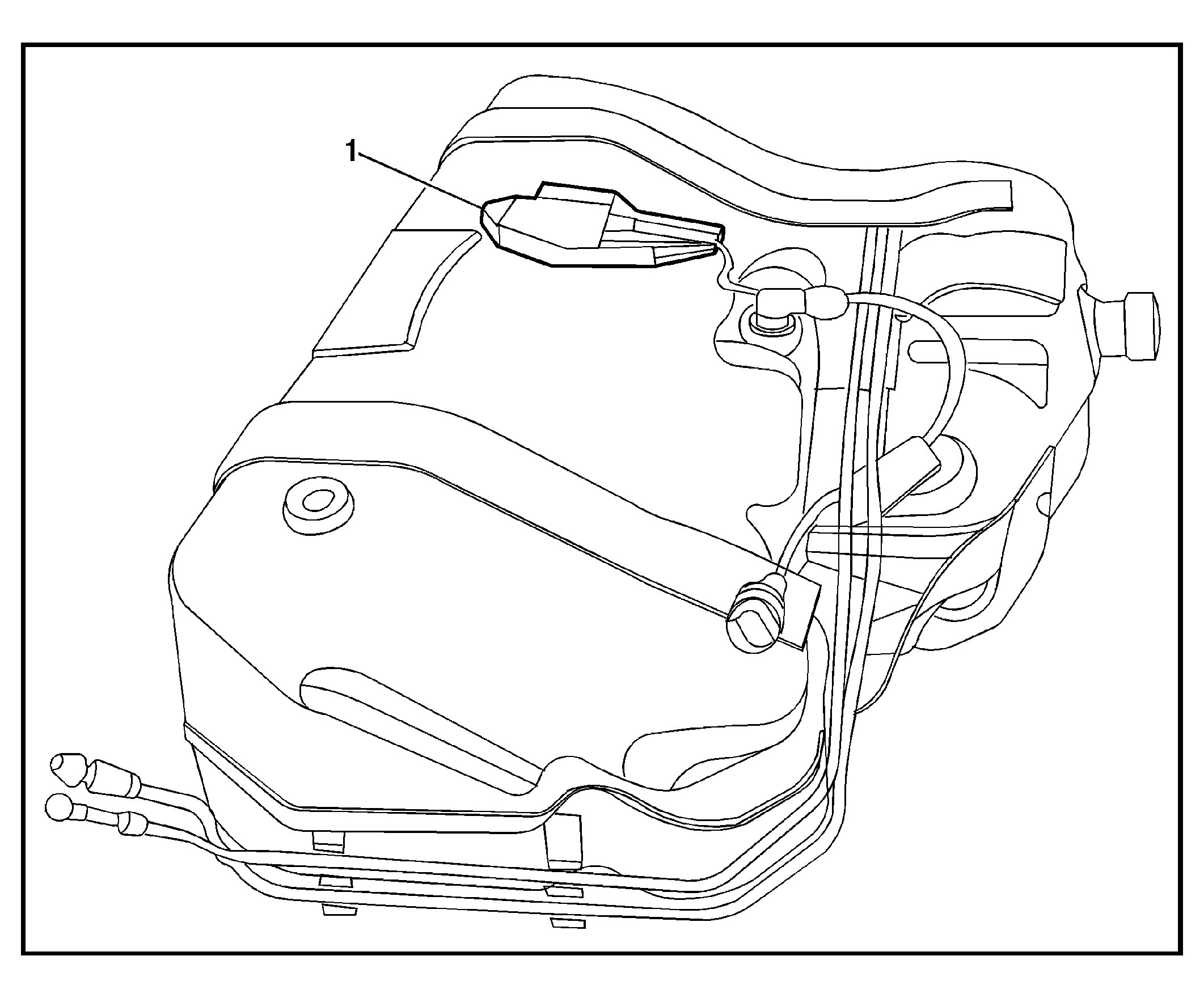

| Fuel Pump (1) | Top of fuel tank. See Figure. |
| Liftgate Latch Assembly (2) | In liftgate. See Figure. |
| Mode Actuator (3) | Right side of HVAC unit. See Figure. |
| Outside Rearview Mirror (Left/Right) (3) | Respective front door. See Figure. |
| Rear Window Wiper Motor (1) | In liftgate. See Figure. |
| Recirculation Actuator (2) | Top center of HVAC unit. See Figure. |
| Sunshade (Left/Right) | Above respective rear window. |
| Throttle Body (3) | Right front of engine. See Figure. |
| Window Motor (Driver/Passenger) (5) | Respective front door. See Figure. |
| Window Motor (Left/Right Rear) (3) | Respective rear door. See Figure. |
| Windshield Washer Fluid Pump (4) | Left side of engine compartment. See Figure. |
| Windshield Wiper Motor (5) | Rear of engine compartment. See Figure. |
