Hybrid Controls Schematics

WARNING: This page is about a different car, the 2008 Chevrolet Malibu. However, it is still accessible from the selected car via links, so may be relevant.

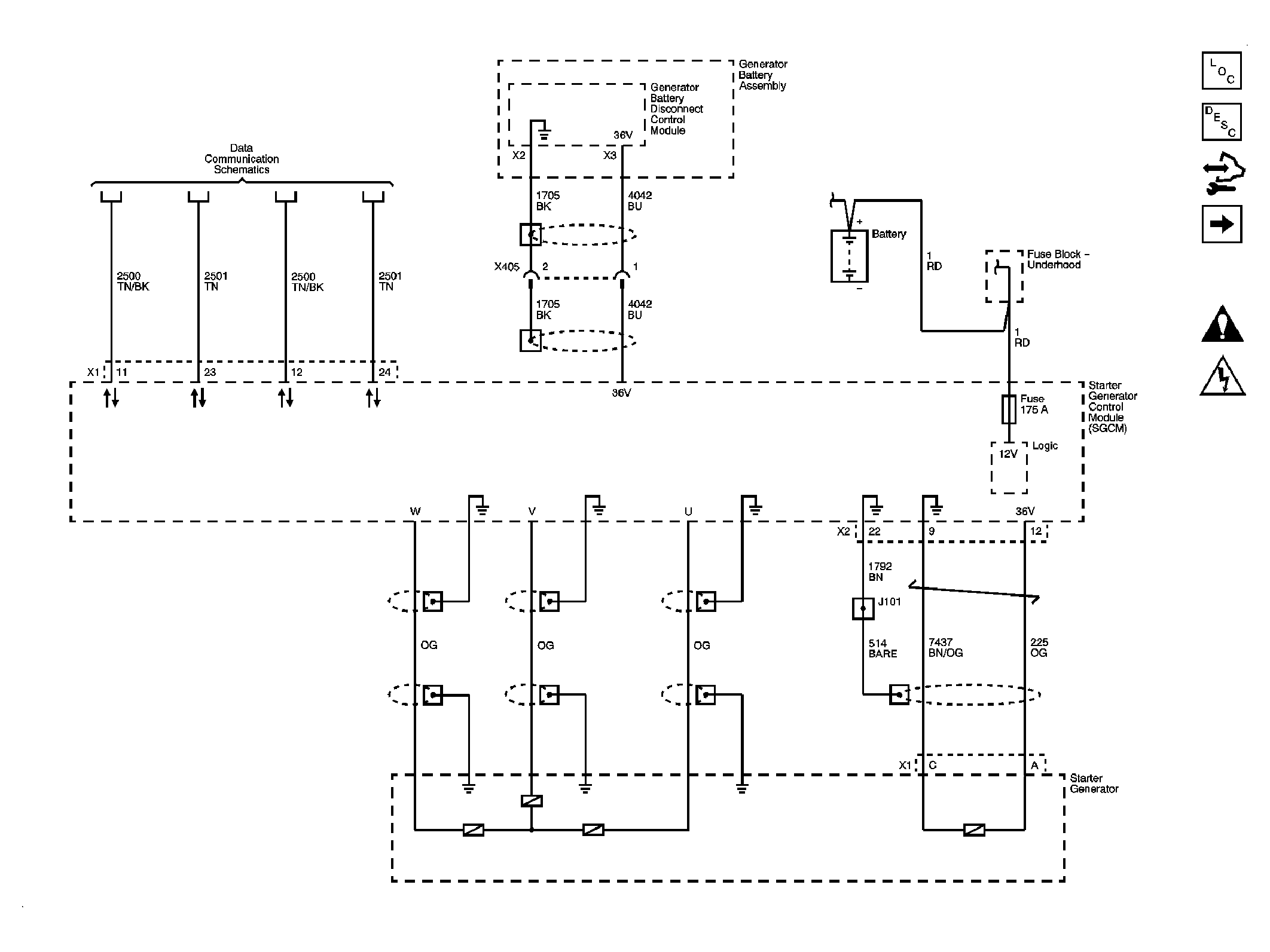

Fig 1: A/C Field Voltage Schematic
GM1993113Courtesy of GENERAL MOTORS CORP.

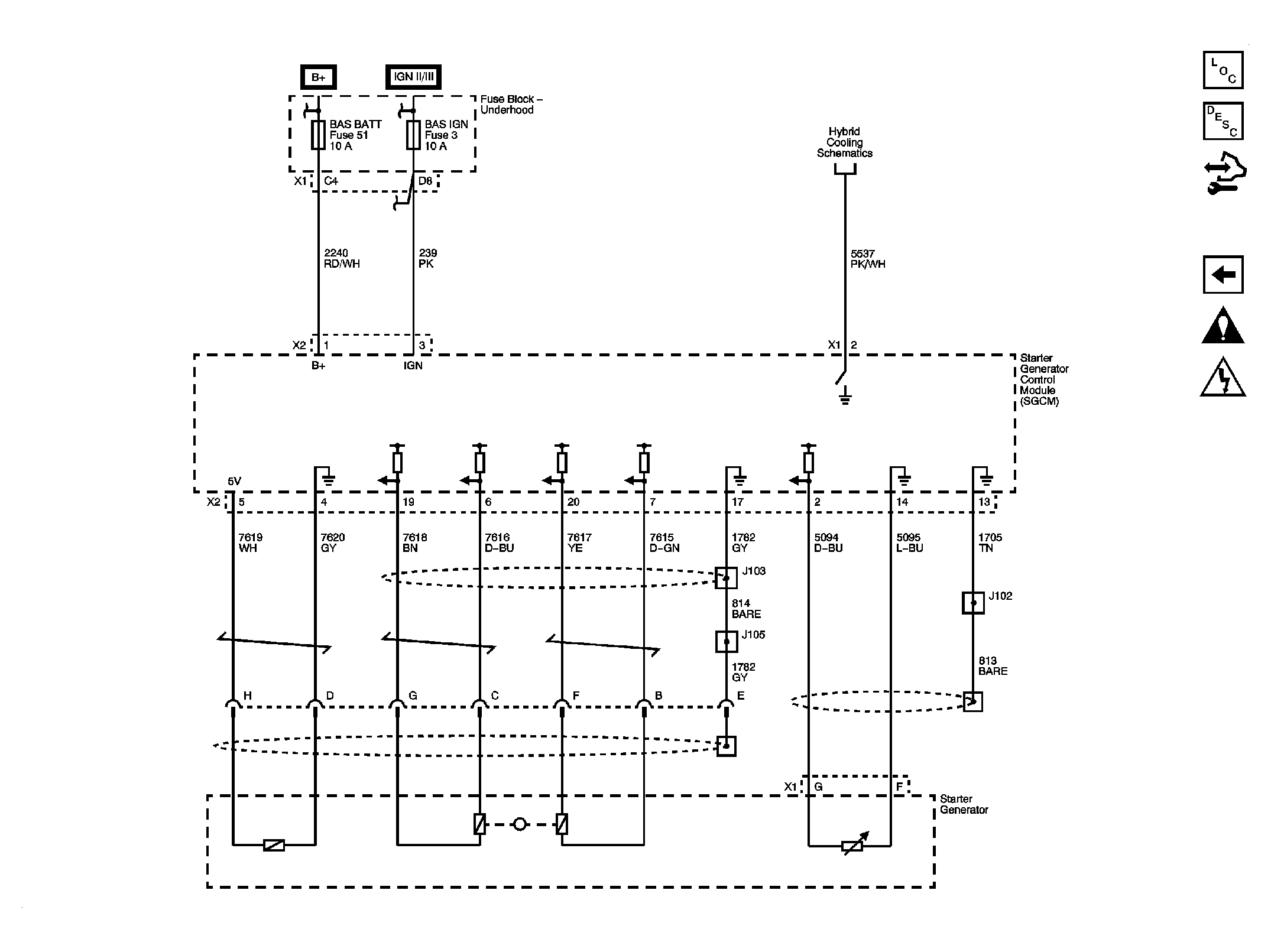

Fig 2: Motor Controls Schematic
GM1993114Courtesy of GENERAL MOTORS CORP.
