Installation Procedure

WARNING: This page is about a different car, the 2007 Saturn Sky. However, it is still accessible from the selected car via links, so may be relevant.

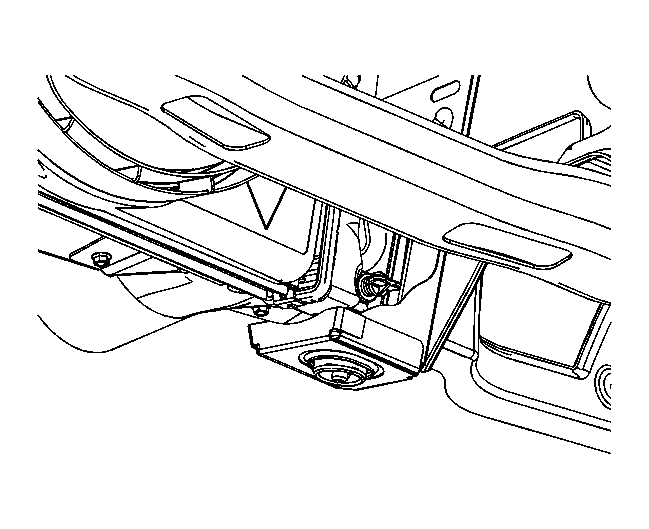

    Fig 1: Radiator Drain Cock
    GM1696009Courtesy of GENERAL MOTORS CORP.
  1. Tighten the radiator drain cock. Tighten the radiator drain cock by hand only.
  2. Lower the vehicle.
  3. Fill the cooling system. Refer to Draining and Filling Cooling System (GE-47716)  or Draining and Filling Cooling System (2.4L LE5 Only) .
