Luggage Compartment/Rear of Vehicle Component Views

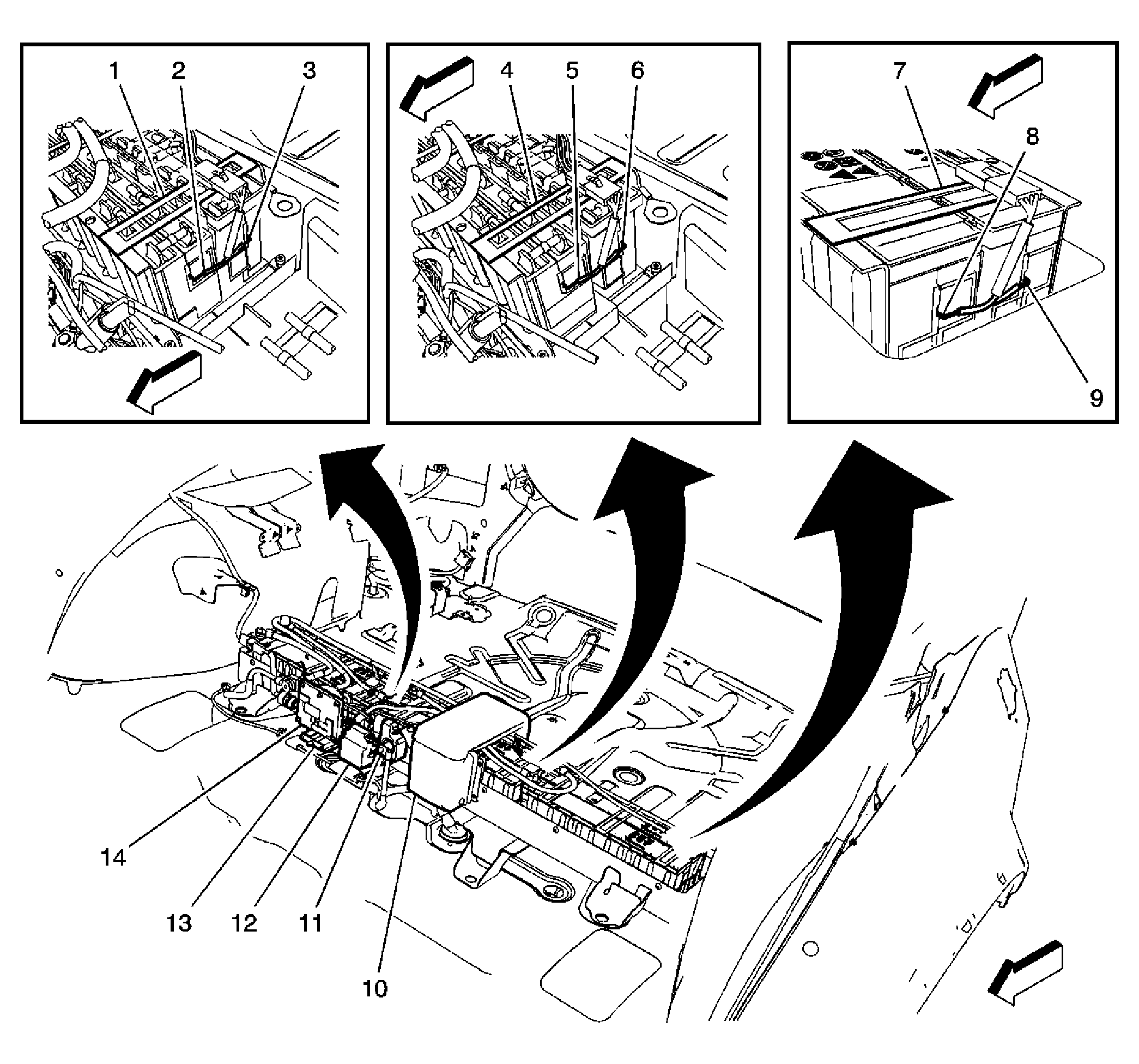

Fig 1: Generator Battery Assembly (HP7)

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Generator Battery 1
2	Generator Battery Temperature Sensor 1A
3	Generator Battery Temperature Sensor 1B
4	Generator Battery 2
5	Generator Battery Temperature Sensor 2A
6	Generator Battery Temperature Sensor 2B
7	Generator Battery 3
8	Generator Battery Temperature Sensor 3A
9	Generator Battery Temperature Sensor 3B
10	Generator Battery Vent Fan
11	Main Contactor Relay
12	Battery Disconnect Switch
13	Generator Battery Disconnect Control Module

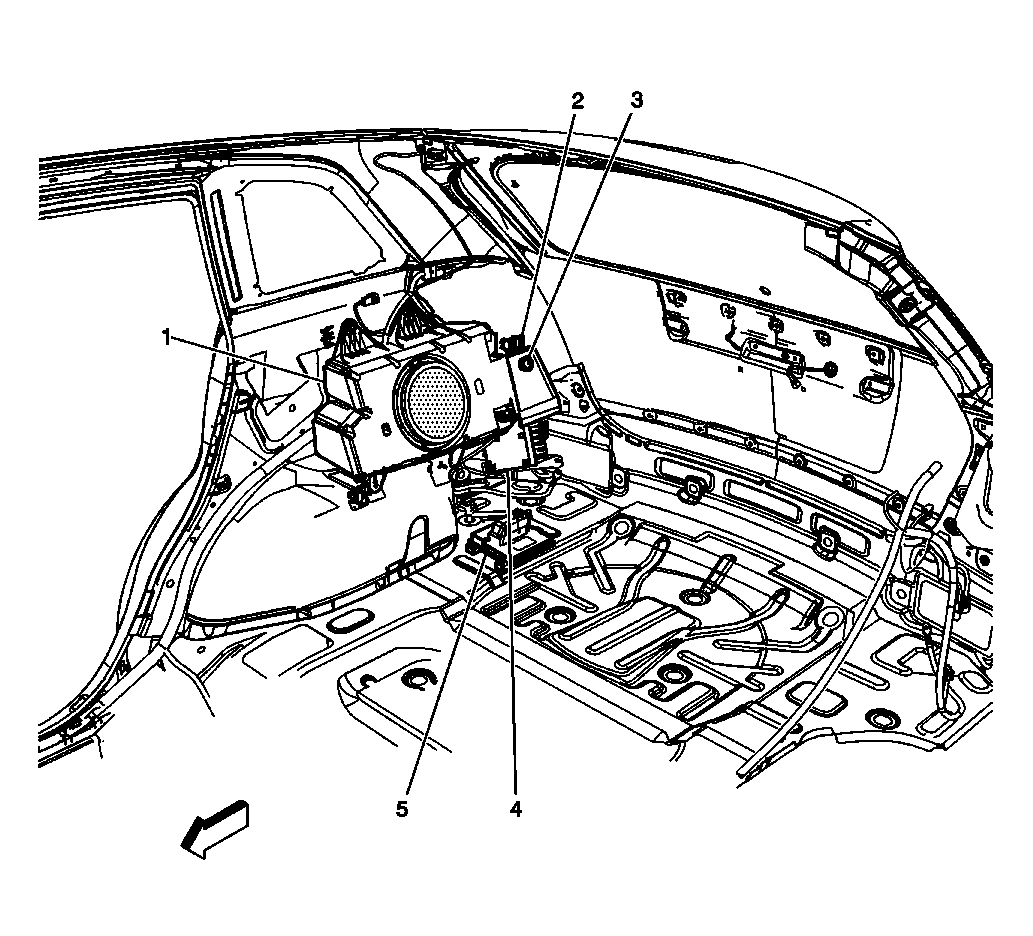

Fig 2: Right Side Of The Luggage Compartment

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Speaker - Subwoofer (WBM)
2	Rear Compartment Courtesy Lamp - Right
3	Accessory Power Outlet - Rear
4	Fuel System Control Module (FSCM)

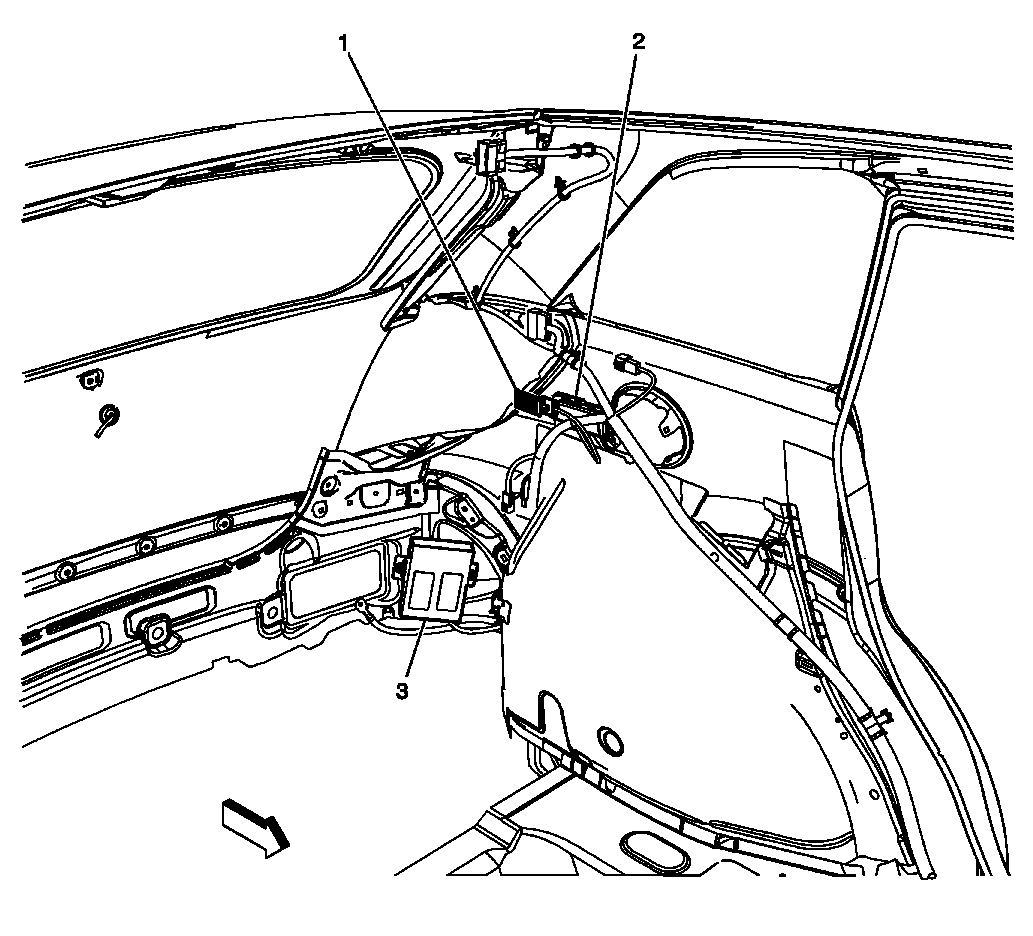

Fig 3: Left Side Of The Luggage Compartment

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Rear Compartment Courtesy Lamp - Left
2	Fuel Door Latch Actuator
3	Digital Radio Receiver (U2K)

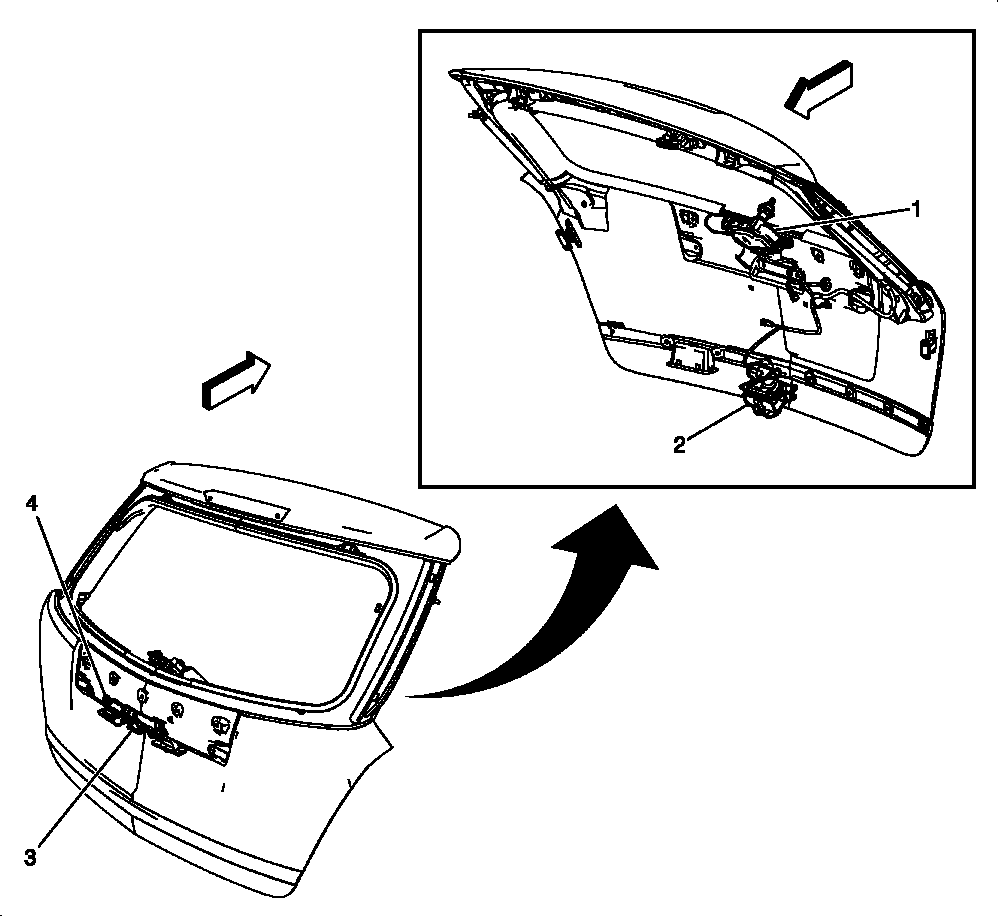

Fig 4: Liftgate Components

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Rear Window Wiper/Washer Module
2	Liftgate Latch Actuator
3	Liftgate Release Switch

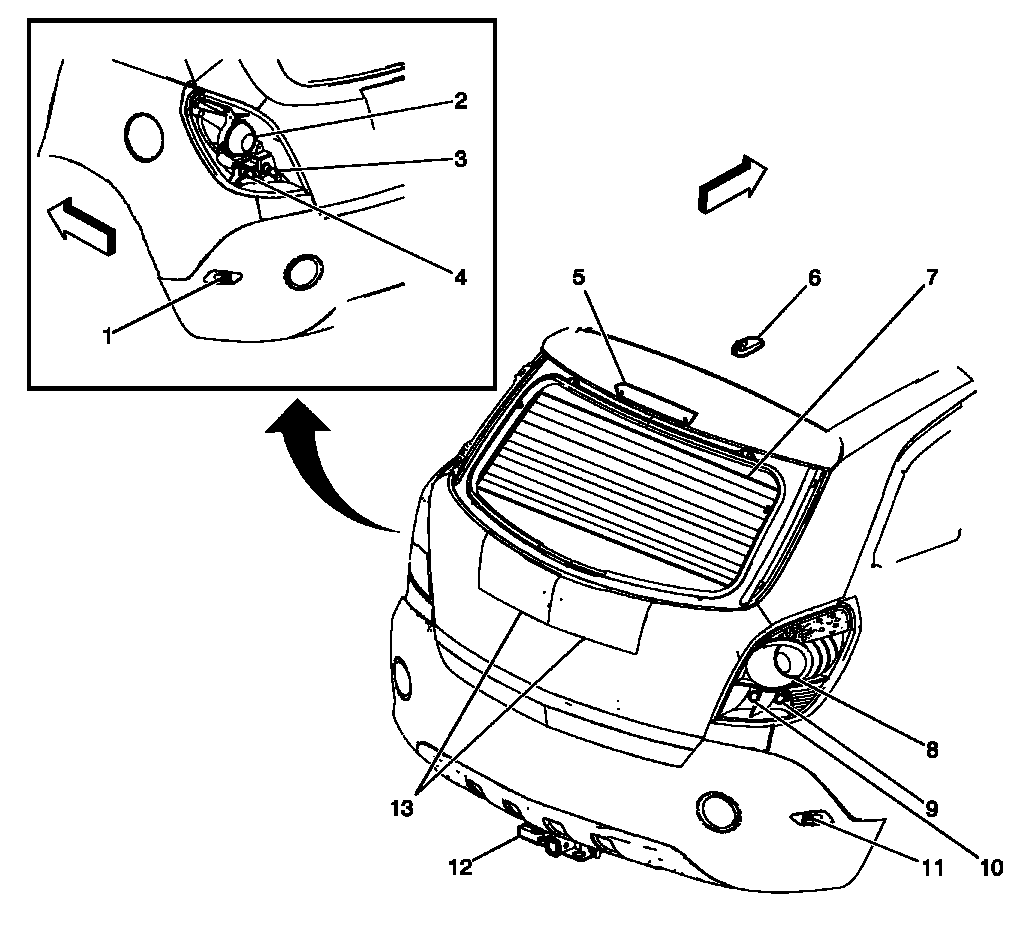

Fig 5: Rear Fascia Lighting Components

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Marker Lamp - Left Rear
2	Tail/Stop Lamp - Left
3	Backup Lamp - Left
4	Turn Signal Lamp - Left Rear
5	Center High Mounted Stop Lamp (CHMSL)
6	Digital Radio/Cellular Telephone/Radio Antenna (U2K/UE1)
7	Rear Window Defogger Grid
8	Tail/Stop Lamp - Right
9	Turn Signal Lamp - Right Rear
10	Marker Lamp - Right Rear
11	Trailer Connector
12	License Lamps
