Fuse Block - I/P X1

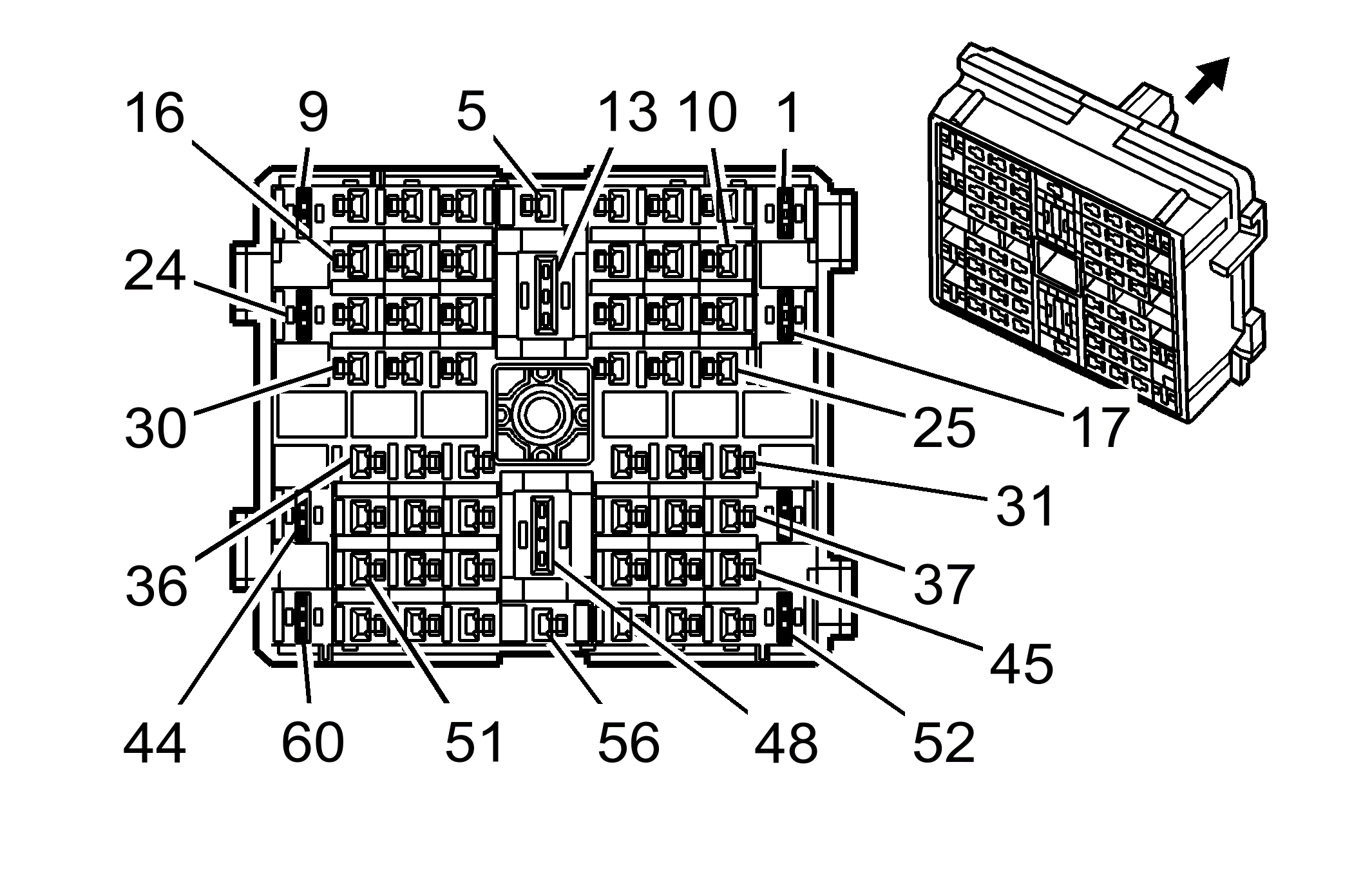

Fig 1: Fuse Block - I/P X1
GM1835062Courtesy of GENERAL MOTORS CORP.
Fuse Block - I/P X1

Pin Wire Circuit Function
1 2 YE 643 Accessory Voltage
2 - - Not Used
3 0.35 TN 28 Horn Relay Control
4 0.5 GY 589 DRL Resistor Supply Voltage
5 0.35 L-BU 1344 Trunk Release Relay Control
6 0.35 BN 253 Trunk Release Relay Control
7 0.5 RD/WH 1840 Battery Positive Voltage (UUC)
0.5 RD/WH 1840 Battery Positive Voltage (UUC)
8 0.35 BN 41 Ignition 3 Voltage (KA1)
0.35 BN 41 Ignition 3 Voltage (KA1)
9-10 - - Not Used
11 0.35 TN 28 Horn Relay Control
12 - - Not Used
13 5 RD/WH 2040 Battery Positive Voltage
14 0.8 RD/WH 3140 Battery Positive Voltage
15 0.5 RD/WH 1840 Battery Positive Voltage (U2K)
16 0.35 BN 41 Ignition 3 Voltage (AE8)
17 2 YE 743 Accessory Voltage
2 YE 743 Accessory Voltage
18 0.35 PK 239 Ignition 1 Voltage
19 0.5 PK 339 Ignition 1 Voltage
20 0.5 OG 228 Windshield Washer Pump Control
21 0.8 RD/WH 1240 Battery Positive Voltage
22 - - Not Used
23 0.5 L-BU 6128 Rear Closure Unlatch Motor Unlatch Control
24 0.8 BN 141 Ignition 3 Voltage
25 0.35 YE 5199 Run/Crank Relay Coil Control
26-27 - - Not Used
28 0.8 RD/WH 1340 Battery Positive Voltage
29-30 - - Not Used
31 0.35 TN 755 RAP Relay Coil Control
32 0.5 PK 639 Ignition 1 Voltage
33 0.35 L-GN/BK 592 DRL Relay Control
34 0.8 RD/WH 1440 Battery Positive Voltage
35 - - Not Used
36 0.5 RD/WH 1940 Battery Positive Voltage
37 0.8 RD/WH 2640 Battery Positive Voltage
38 - - Not Used
39 0.8 RD/WH 2840 Battery Positive Voltage
40-41 - - Not Used
42 0.8 RD/WH 1540 Battery Positive Voltage
43 0.35 OG 2268 Windshield Washer Relay Control
44 2 RD/WH 2940 Battery Positive Voltage
45 0.35 YE 143 Accessory Voltage
46 0.5 YE 343 Accessory Voltage
47 0.5 GY 295 Door Lock Actuator Lock Control
48 6 RD/WH 140 Battery Positive Voltage
49 0.5 TN 294 Door Lock Actuator Unlock Control
50 0.5 RD/WH 2540 Battery Positive Voltage
51 0.8 RD/WH 2740 Battery Positive Voltage
52 2 RD/WH 440 Battery Positive Voltage (AE8)
53 - - Not Used
54 0.35 L-BU 5921 Driver Door Unlock Relay Control
55 0.5 TN 694 Driver Door Lock Actuator Unlock Control
56 0.35 L-BU 195 Door Lock Control
57 0.8 BK 450 Ground
58 0.35 WH 194 Door Unlock Control
59-60 - - Not Used
Connector Part Information
  • OEM: 13579292
  • Service: See Catalog
  • Description: 60-Way F Hybrid (GY)
Terminal Part Information
  • Pins: 1, 44, 52
  • Terminal/Tray: 1241408-1/28
  • Core/Insulation Crimp: A/B
  • Release Tool/Test Probe: J-38125-557/J-35616-42 (RD)
  • Pins: 3-8, 11, 13-21, 23-25, 28, 31-34, 36- 37, 39, 42-43, 45-51, 54-58
  • Terminal/Tray: See Terminal Repair Kit
  • Core/Insulation Crimp: See Terminal Repair Kit
  • Release Tool/Test Probe: See Terminal Repair Kit
