Door Component Views

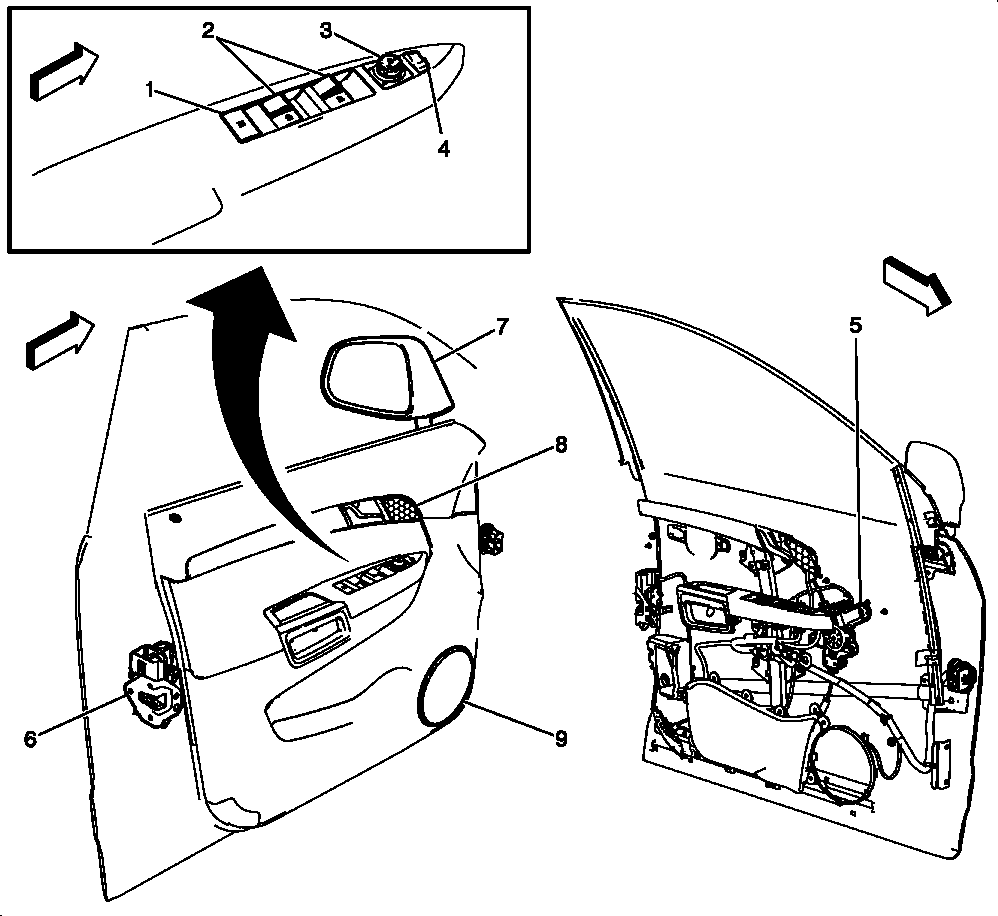

| Callout | Component Name |
|---|---|
| 1 | Rear Window Lock - Out Switch |
| 2 | Window Switch - Driver |
| 3 | Outside Rearview Mirror Switch |
| 4 | Door Lock Switch - Driver |
| 5 | Window Motor - Driver |
| 6 | Courtesy Lamp - Left Front Door |
| 7 | Door Latch Assembly - Driver |
| 8 | Outside Rearview Mirror - Driver |
| 9 | Speaker - Left Front - Tweeter (UW6) |
| 10 | Speaker - Left Front Door |
| Callout | Component Name |
|---|---|
| 1 | Outside Rearview Mirror - Passenger |
| 2 | Door Latch Assembly - Passenger |
| 3 | Courtesy Lamp - Right Front Door |
| 4 | Speaker - Right Front Door |
| 5 | Window Switch - Passenger |
| 6 | Speaker - Right Front - Tweeter (UW6) |
| 7 | Window Motor - Passenger |

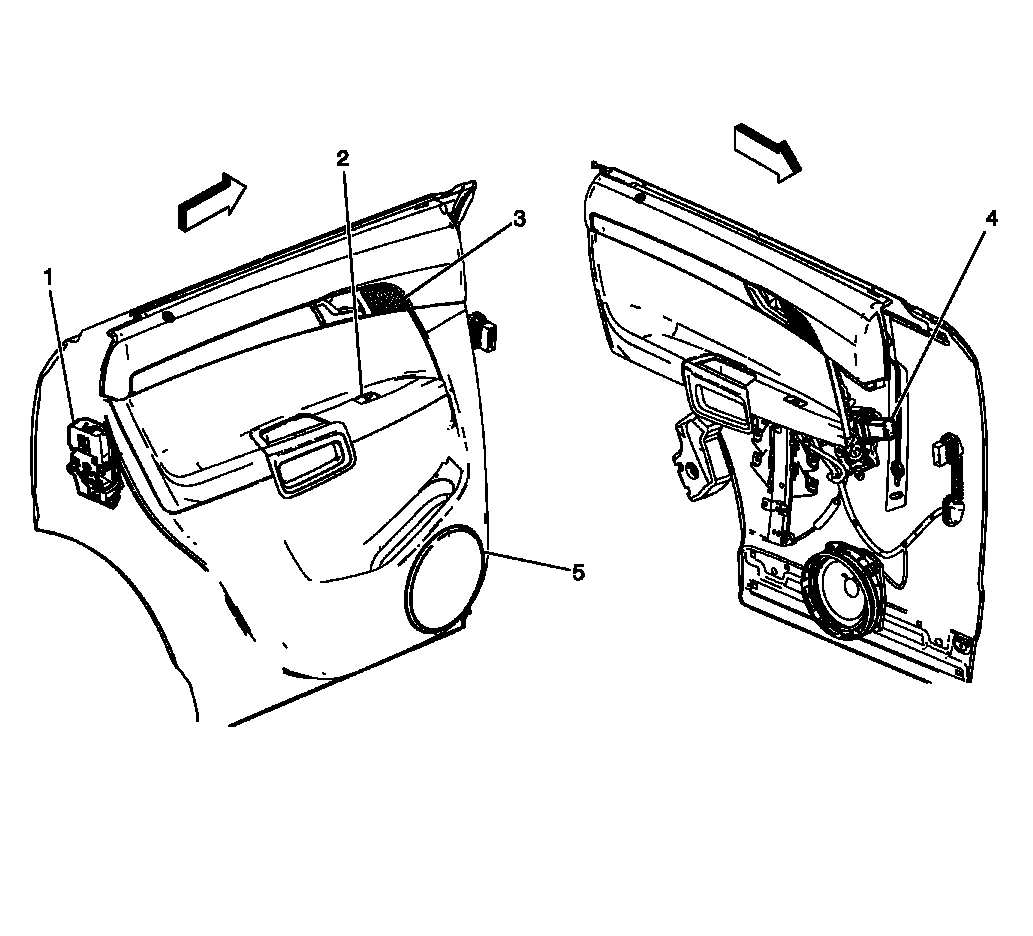

| Callout | Component Name |
|---|---|
| 1 | Door Latch Assembly - Left Rear |
| 2 | Window Switch - Left Rear |
| 3 | Speaker - Left Rear - Tweeter (UW6) |
| 4 | Window Motor - Left Rear |
| 5 | Speaker - Left Rear Door |
