Windshield Washer Fluid Pump - Rear

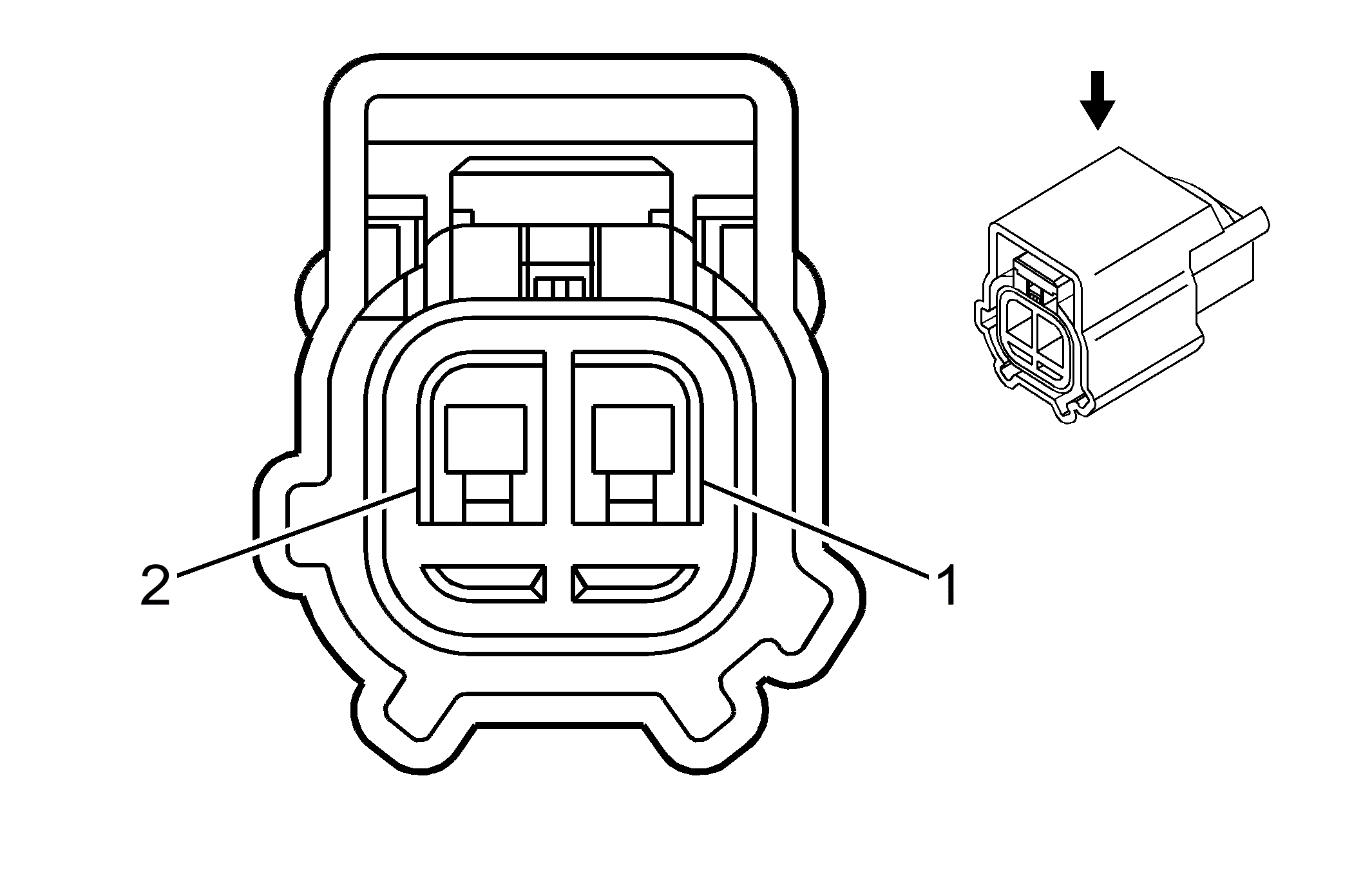

Fig 1: Windshield Washer Fluid Pump - Rear
GM1977742Courtesy of GENERAL MOTORS CORP.
Windshield Washer Fluid Pump - Rear

Pin Wire Circuit Function
1 0.8 D-GN 392 Rear Window Washer Pump Control
2 0.8 BK 150 Ground
Connector Part Information
  • OEM: 15416991
  • Service: See Catalog
  • Description: 2-Way F 1.5, Sealed (BK)
Terminal Part Information
  • Terminal/Tray: 7116-4103-08/9
  • Core/Insulation Crimp: E/1
  • Release Tool/Test Probe: 12094430/J-35616-2A (GY)
