Window Motor - Left Rear

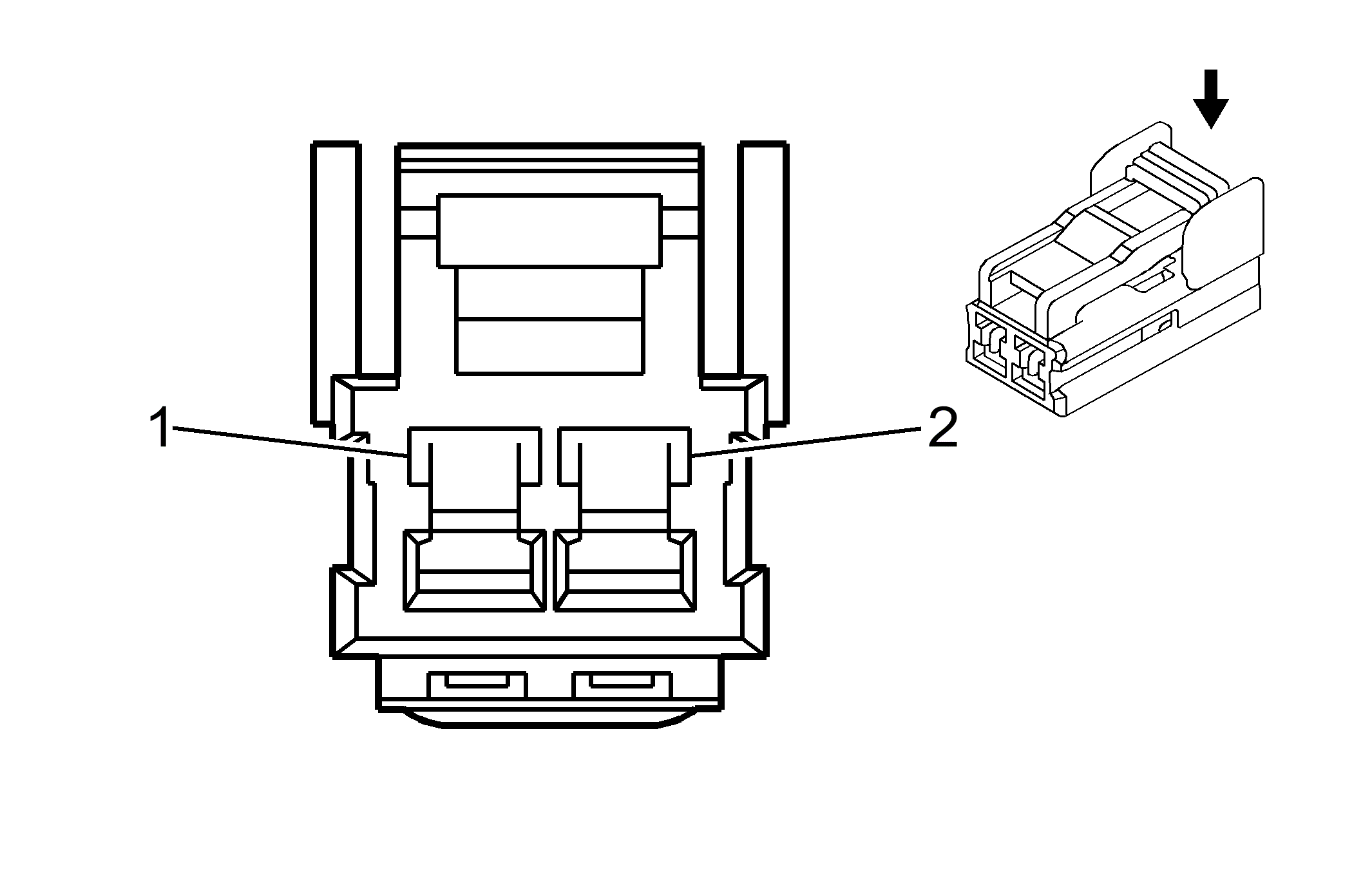

Fig 1: Window Motor - Left Rear
GM1962074Courtesy of GENERAL MOTORS CORP.
Window Motor - Left Rear

Pin Wire Circuit Function
1 2 D-BU 668 Power Window Motor Left Rear Up Control
2 2 BN 669 Power Window Motor Left Rear Down Control
Connector Part Information
  • OEM: 13524077
  • Service: See Catalog
  • Description: 2-Way F 250 Sealed (BK)
Terminal Part Information
  • Terminal/Tray: See Terminal Repair Kit
  • Core/Insulation Crimp: See Terminal Repair Kit
  • Release Tool/Test Probe: See Terminal Repair Kit
