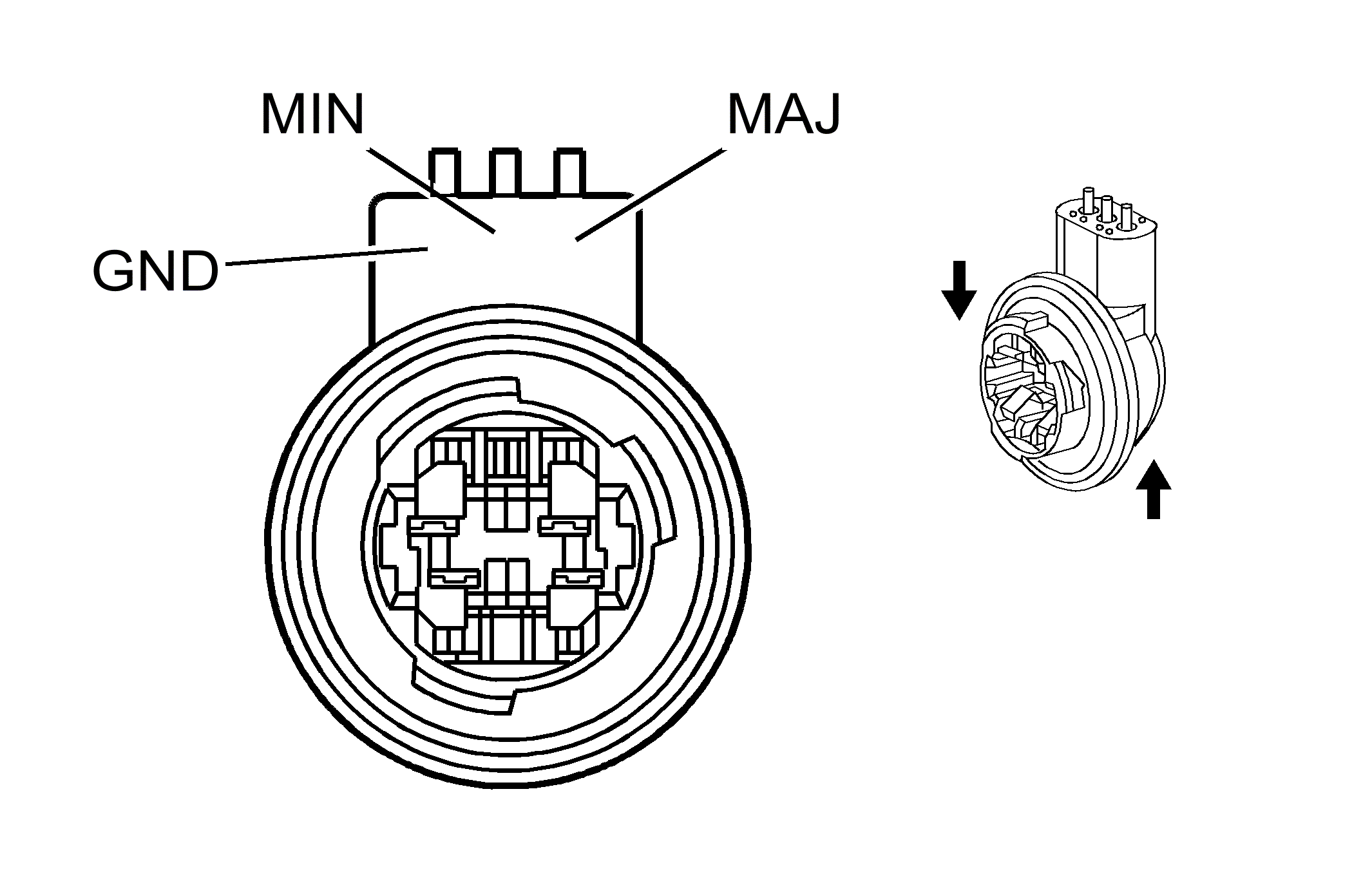

Turn Signal Lamp - Left Rear
Courtesy of GENERAL MOTORS CORP. Turn Signal Lamp - Left Rear
| Pin |
Wire Color |
Circuit No. |
Function |
| MAJ |
0.5 D-BU |
18 |
Left Rear Turn Lamp Supply Voltage |
| MIN |
- |
- |
Not Used |
| GND |
0.5 BK |
650 |
Ground |
Connector Part Information
- OEM: 021780959
- Service: See Catalog
- Description: 3-Way F Bulb 3057 Socket (BK)
|
