Transmission Pump (HP7)

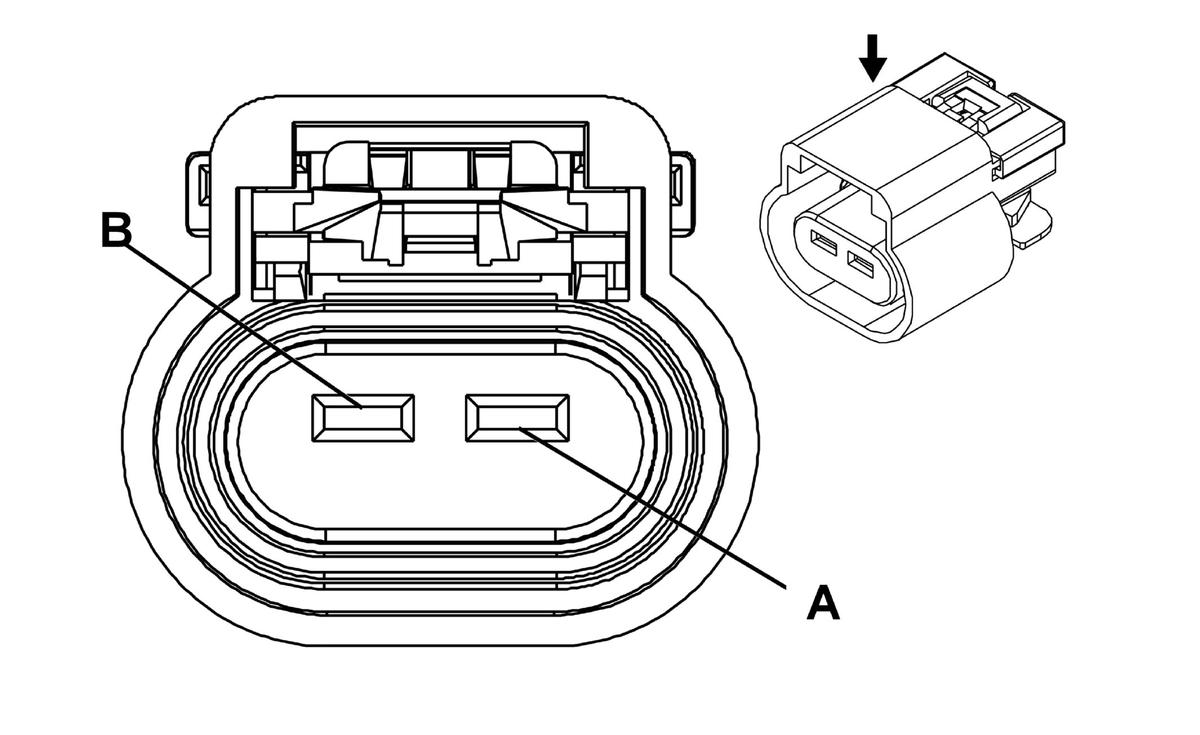

Fig 1: Transmission Pump (HP7)
GM1526384Courtesy of GENERAL MOTORS CORP.
Transmission Pump (HP7)

Pin Wire Circuit Function
A 3 BN/RD 7435 Transmission Pump High Reference
B 3 D-BU/WH 7436 Transmission Pump Low Reference
Connector Part Information
  • OEM: 15326677
  • Service: 88953351
  • Description: 2-Way F GT 150 Series Sealed (BK)
Terminal Part Information
  • Terminal/Tray: 15304720/19
  • Core/Insulation Crimp: 4/5
  • Release Tool/Test Probe: 15315247/J-35616-4A (PU)
