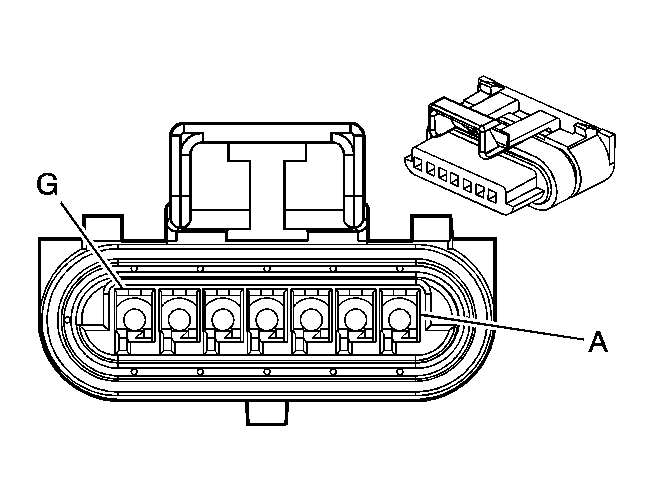

Starter Generator X1 (HP7)
Courtesy of GENERAL MOTORS CORP. Starter Generator X1 (HP7)
| Pin |
Wire |
Circuit |
Function |
| A |
0.8 OG |
225 |
Generator Turn On Signal |
| B |
- |
- |
Not Used |
| C |
0.5 BN/OG |
7437 |
Generator Control |
| D-E |
- |
- |
Not Used |
| F |
0.5 L-BU |
5095 |
Module Temperature Low Reference |
| G |
0.5 D-BU |
5094 |
Module Temperature Signal |
Connector Part Information
- OEM: 12162836
- Service: See Catalog
- Description: 7-Way F (BK)
|
Terminal Part Information
- Terminal/Tray: See Terminal Repair Kit
- Core/Insulation Crimp: See Terminal Repair Kit
- Release Tool/Test Probe: See Terminal Repair Kit
|
