Starter Generator Control Module (SGCM) X2 (HP7)

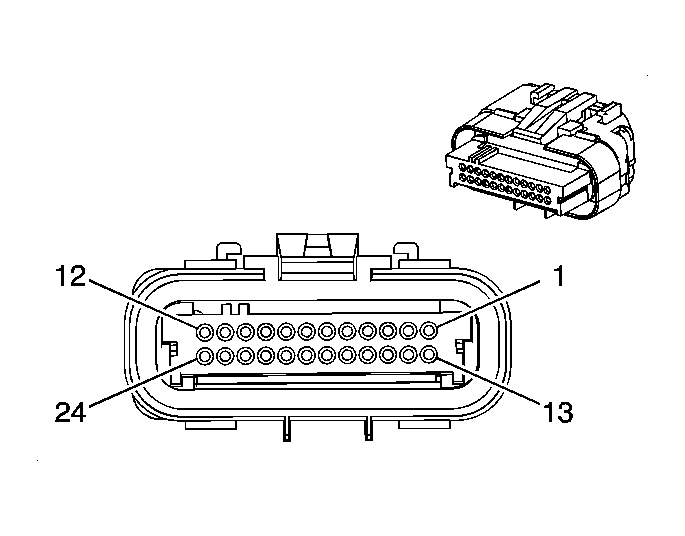

Fig 1: Starter Generator Control Module (SGCM) X2 (HP7)

Courtesy of GENERAL MOTORS CORP.

Pin	Wire	Circuit	Function
1	0.5 RD/WH	40	Battery Positive Voltage
2	0.5 D-BU	5094	Module Temperature Signal
3	0.35 L-BU	5986	Serial Data Communication Enable
4	0.5 GY	9018	Resolver Motor Negative
5	0.5 WH	9017	Resolver Motor Positive
6	0.5 D-BU	9020	Resolver Signal #3
7	0.5 D-GN	9022	Resolver Signal #4
8	0.8 PU	910	Hill Hold Valve 1 Control
9	0.5 BN/OG	7437	Low Reference
10-11	-	-	Not Used
12	0.8 OG	225	Generator Turn On Signal
13	0.35 RD	701	Drain Wire
14	0.5 L-BU	5095	Module Temperature Low Reference
15	0.35 PU	5087	High Voltage Interlock Loop Signal
16	0.35 PU	5087	High Voltage Interlock Loop Signal
17	0.35 RD	701	Drain Wire
18	-	-	Not Used
19	0.5 L-BU	9019	Resolver Signal #1
20	0.5 L-GN	9075	Resolver Signal #2
21	0.8 L-GN	911	Hill Hold Valve 2 Control
22	0.35 RD	701	Drain Wire
23-24	-	-	Not Used

Connector Part Information

Terminal Part Information
