Rear Window Wiper/Washer Module

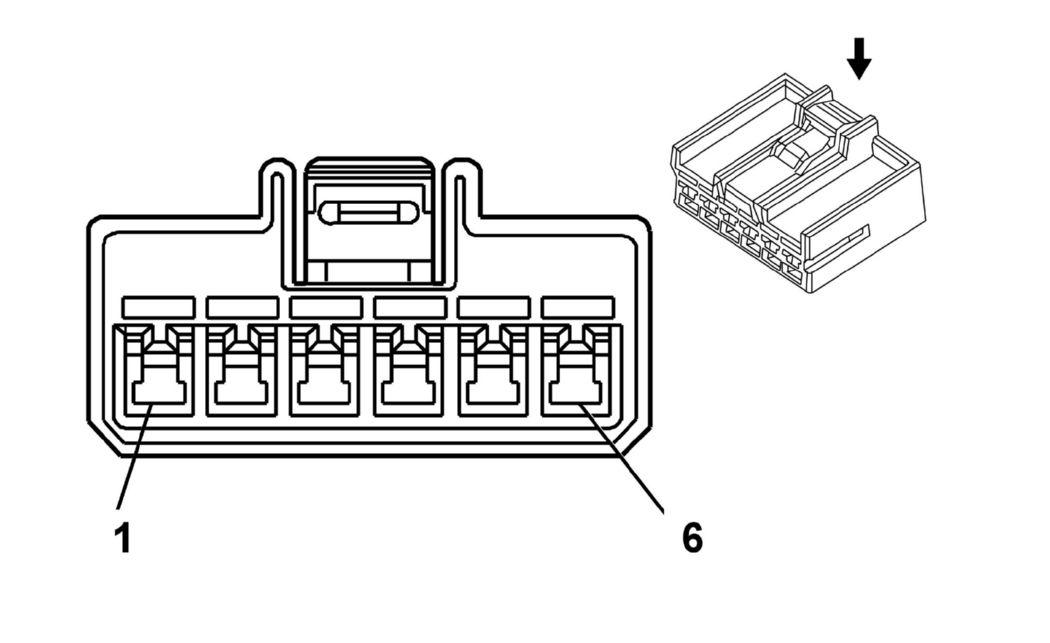

Courtesy of GENERAL MOTORS CORP. Rear Window Wiper/Washer Module
| Pin |
Wire |
Circuit |
Function |
| 1 |
0.35 GY |
391 |
Rear Window Wiper Switch Signal |
| 2 |
- |
- |
Not Used |
| 3 |
0.35 PK/BK |
1303 |
Liftgate Ajar Switch Signal |
| 4 |
1 BK |
650 |
Ground |
| 5 |
1 RD/WH |
2240 |
Battery Positive Voltage |
| 6 |
0.8 D-GN |
392 |
Rear Window Washer Pump Control |
Connector Part Information
- OEM: 936230-1
- Service: See Catalog
- Description: 6-Way F 090 II Series (NA)
|
Terminal Part Information
- Terminal/Tray: See Terminal Repair Kit
- Core/Insulation Crimp: See Terminal Repair Kit
- Release Tool/Test Probe: See Terminal Repair Kit
|
