Rain Sensor (CE1)

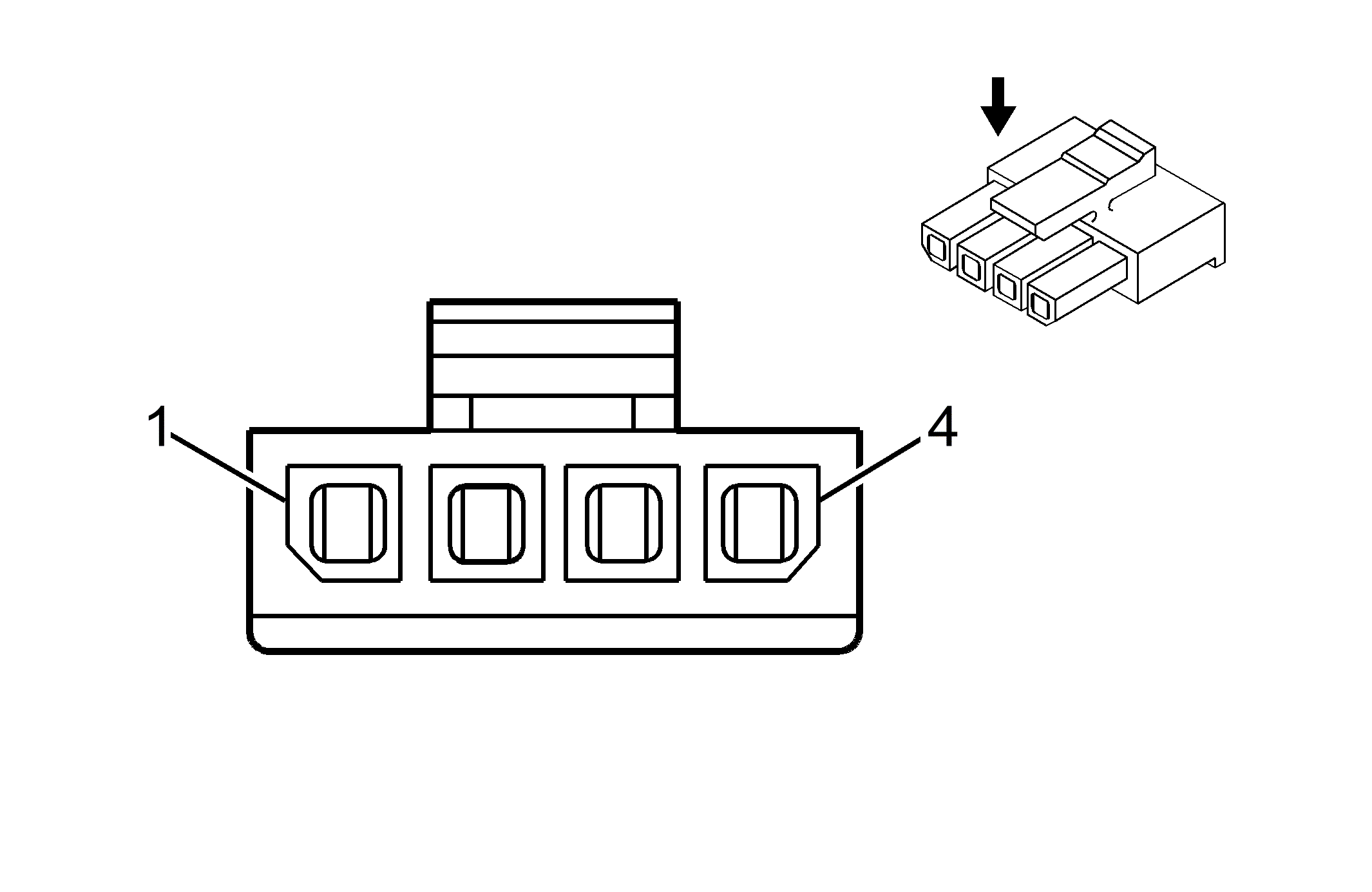

Fig 1: Rain Sensor (CE1)
GM722341Courtesy of GENERAL MOTORS CORP.
Rain Sensor (CE1)

Pin Wire Circuit Function
1 0.35 L-GN 482 Outside Moisture Sensor Signal 2
2 0.35 TN 481 Outside Moisture Sensor Signal 1
3 0.35 BK 650 Ground
4 0.35 BN 4 Accessory Voltage
Connector Part Information
  • OEM: 15324252
  • Service: 15324252
  • Description: 4-Way F Micro-Fit Series (BK)
Terminal Part Information
  • Terminal/Tray: 43030-0010/23
  • Core/Insulation Crimp: H/H
  • Release Tool/Test Probe: J-38125-213/J-35616-64B (L-BU)
