Radio X3 (UUC)

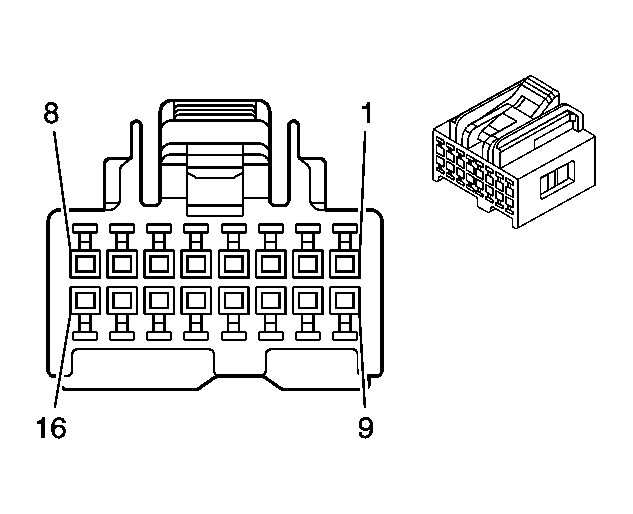

Fig 1: Radio X3 (UUC)

GM1962088

Courtesy of GENERAL MOTORS CORP.

Radio X3 (UUC)

Pin	Wire	Circuit	Function
1	0.35 YE	2059	Auxiliary Audio Left Signal
2	0.35 WH	2058	Auxiliary Audio Right Signal
3	0.35 L-BU	5826	Left DVD Audio Signal (+)
4	0.35 WH	5828	Right DVD Audio Signal (+)
5	0.35 OG/BK	5831	Remote Infra Red Signal (+)
6	0.35 PK/BK	5844	Video Bright Control
7	0.35 GY	5334	Coaxial DVD Video Signal
8	0.35 PU	2056	Auxiliary Video High Signal
9	0.5 BARE	5345	Drain Wire
10	0.35 BN/WH	5846	Video Power Mode Signal
11	0.35 GY	5825	Left DVD Audio Signal (-)
12	0.5 BARE	5827	Right DVD Audio Signal (-)
13	0.35 TN/WH	5830	Remote Infra Red Signal (-)
14	0.5 BARE	5336	Coaxial DVD Video Drain Wire
15	0.35 WH/BK	5335	DVD Video Signal (-)
16	0.5 BARE	2057	Auxiliary Video Low Signal

Connector Part Information

OEM: 15486793
Service: See Catalog
Description: 16-Way F Micro-Pack HVT Series (GY)

Terminal Part Information

Terminal/Tray: 15445905/23
Core/Insulation Crimp: J/J
Release Tool/Test Probe: 12180559/J-35616-16 (L-GN)
