Park Brake Switch

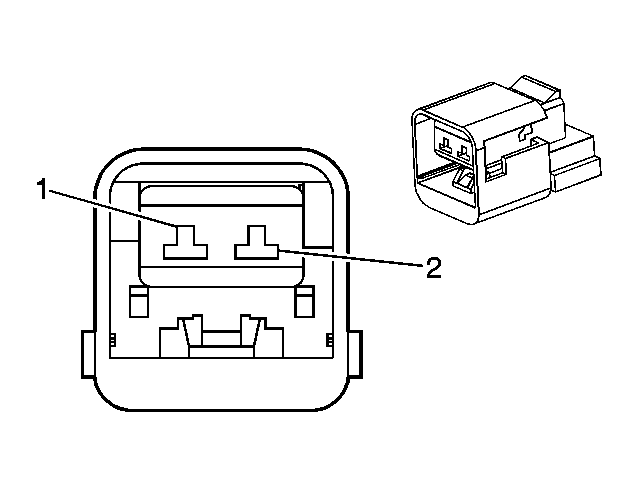

Fig 1: Park Brake Switch
GM1830958Courtesy of GENERAL MOTORS CORP.
Park Brake Switch

Pin Wire Circuit Function
A 0.35 BK 450 Ground
B 0.35 L-BU 1134 Park Brake Switch Signal (Park brake systems only)
Connector Part Information
  • OEM: 15326871
  • Service: See Catalog
  • Description: 2-Way F GT 280 Series (BK)
Terminal Part Information
  • Terminal/Tray: 15304711/8
  • Core/Insulation Crimp: E/A
  • Release Tool/Test Probe: 15315247/J-35616-4A (PU)
