PRNDL Lamp

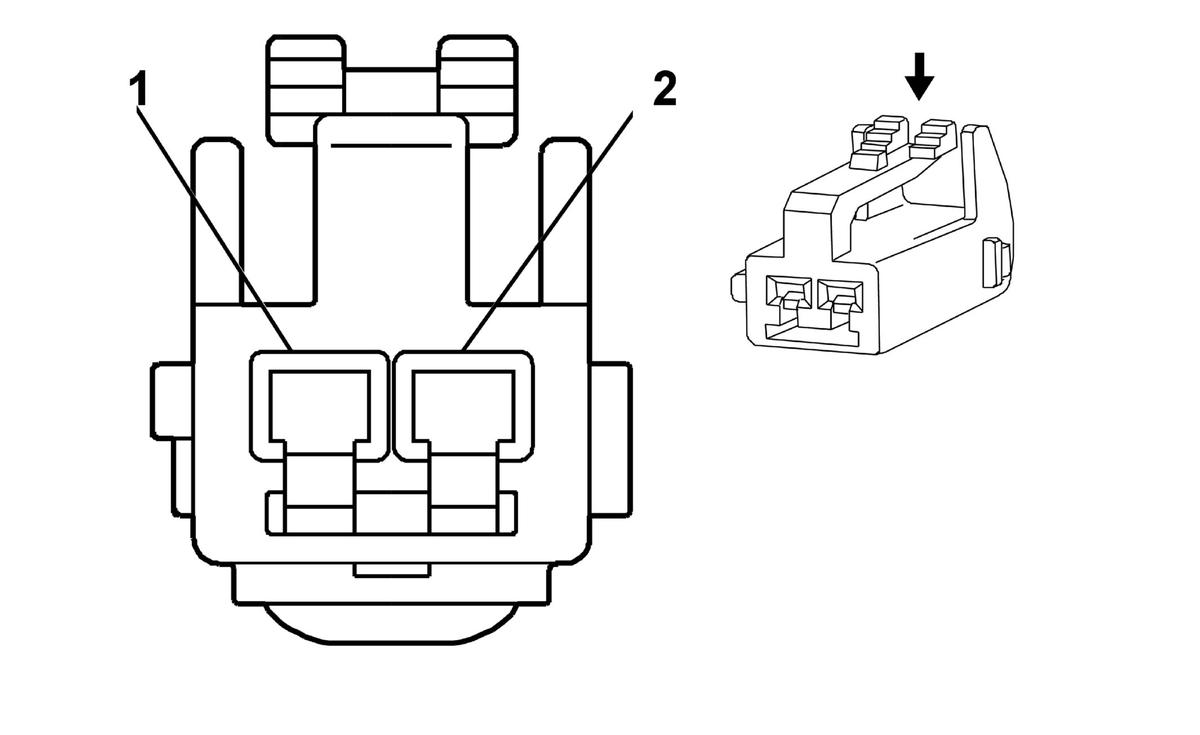

Fig 1: PRNDL Lamp
GM1962083Courtesy of GENERAL MOTORS CORP.
PRNDL Lamp

Pin Wire Circuit Function
1 0.35 BK 350 Ground
2 0.8 BN/WH 230 I/P Lamps Dimming Control
Connector Part Information
  • OEM: 15337962
  • Service: See Catalog
  • Description: 2-Way F 090 II (NA)
Terminal Part Information
  • Pins: 1
  • Terminal/Tray: 7116-4020/11
  • Core/Insulation Crimp: E/C
  • Release Tool/Test Probe: 15315247/J-35616-18 (BK)
  • Pins: 2
  • Terminal/Tray: 7116-4021/11
  • Core/Insulation Crimp: E/A
  • Release Tool/Test Probe: 15315247/J-35616-18 (BK)
