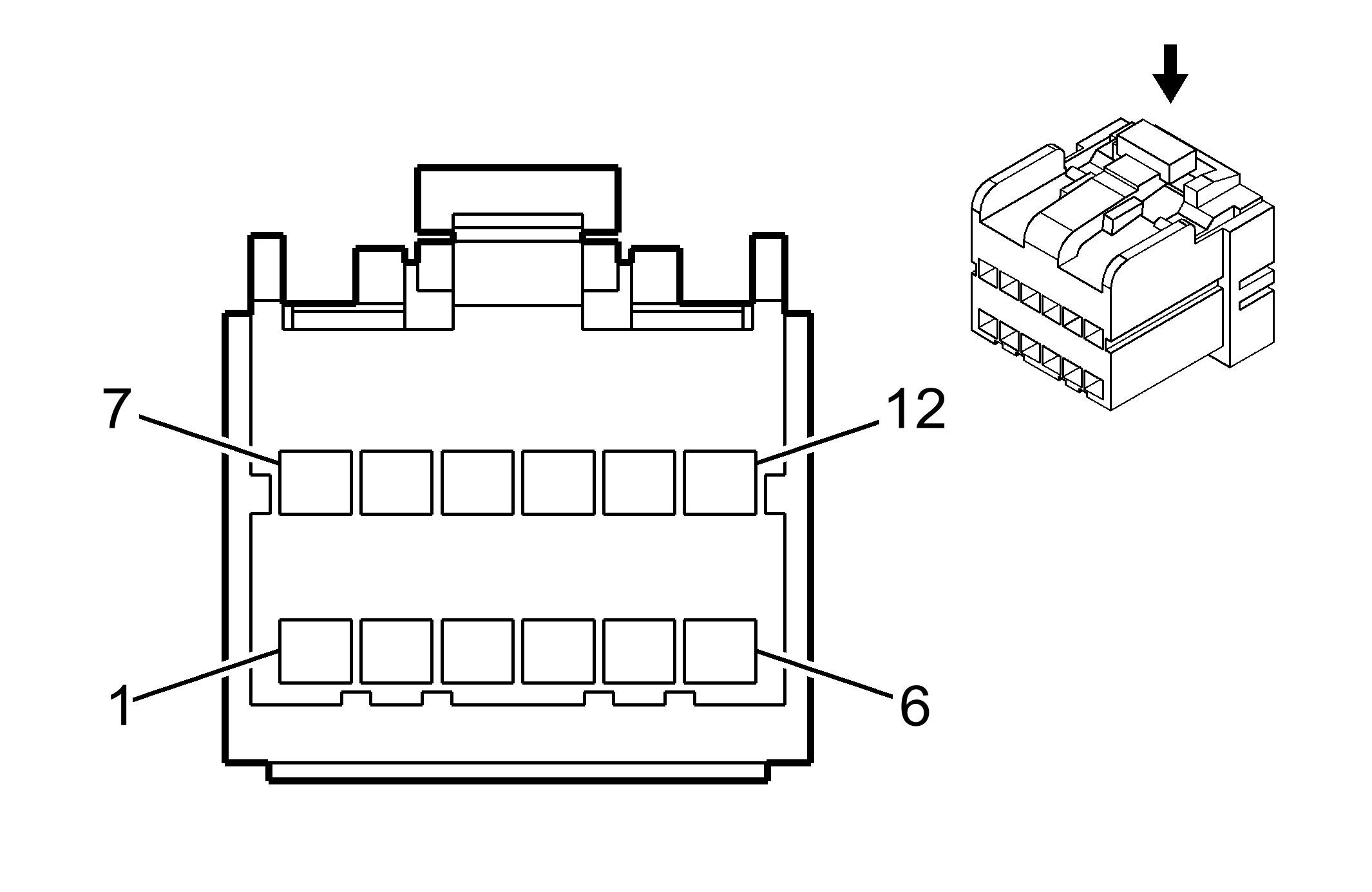

Outside Rearview Mirror - Driver
Courtesy of GENERAL MOTORS CORP. Outside Rearview Mirror - Driver
| Pin |
Wire |
Circuit |
Function |
| 1-3 |
- |
- |
Not Used |
| 4 |
0.35 WH |
81 |
Driver Mirror Motor Right Control |
| 5 |
0.35 YE |
1496 |
Mirror Motor Right/Up Control |
| 6 |
0.35 L-GN |
89 |
Driver Mirror Motor Down Control |
| 7-9 |
- |
- |
Not Used |
| 10 |
0.35 OG |
267 |
Heated Mirror |
| 11 |
0.35 BK |
450 |
Ground |
| 12 |
- |
- |
Not Used |
Connector Part Information
- OEM: 10722617
- Service: 15775804
- Description: 12-Way F 040 Multi-Lock (BK)
|
Terminal Part Information
- Pins: 4-6, 10-11
- Terminal/Tray: 173681-2/17
- Core/Insulation Crimp: E/4
- Release Tool/Test Probe: 15315247/J-35616-16 (L-GN)
|
