License Lamp - Left

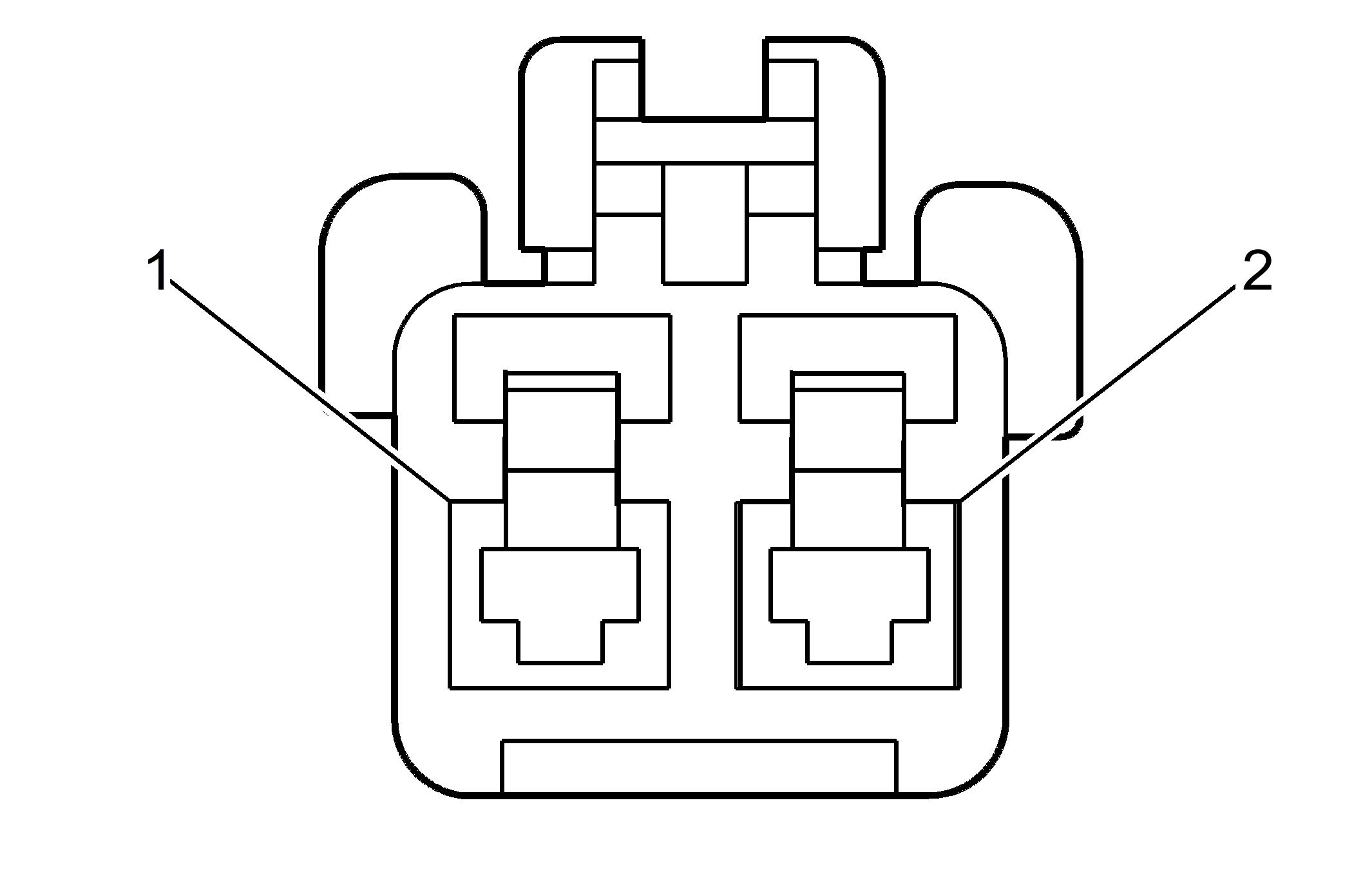

Fig 1: License Lamp - Left
GM1962093Courtesy of GENERAL MOTORS CORP.
License Lamp - Left

Pin Wire Circuit Function
1 0.5 WH 709 Park Lamp Supply Voltage
2 0.5 BK 650 Ground
Connector Part Information
  • OEM: 15337961
  • Service: See Catalog
  • Description: 2-Way F 090 II (WH)
Terminal Part Information
  • Pins: 1- 2
  • Terminal/Tray: 368083-1/26
  • Core/Insulation Crimp: Pins 1-2
  • Release Tool/Test Probe: 15315247/J-35616-18 (BK)
