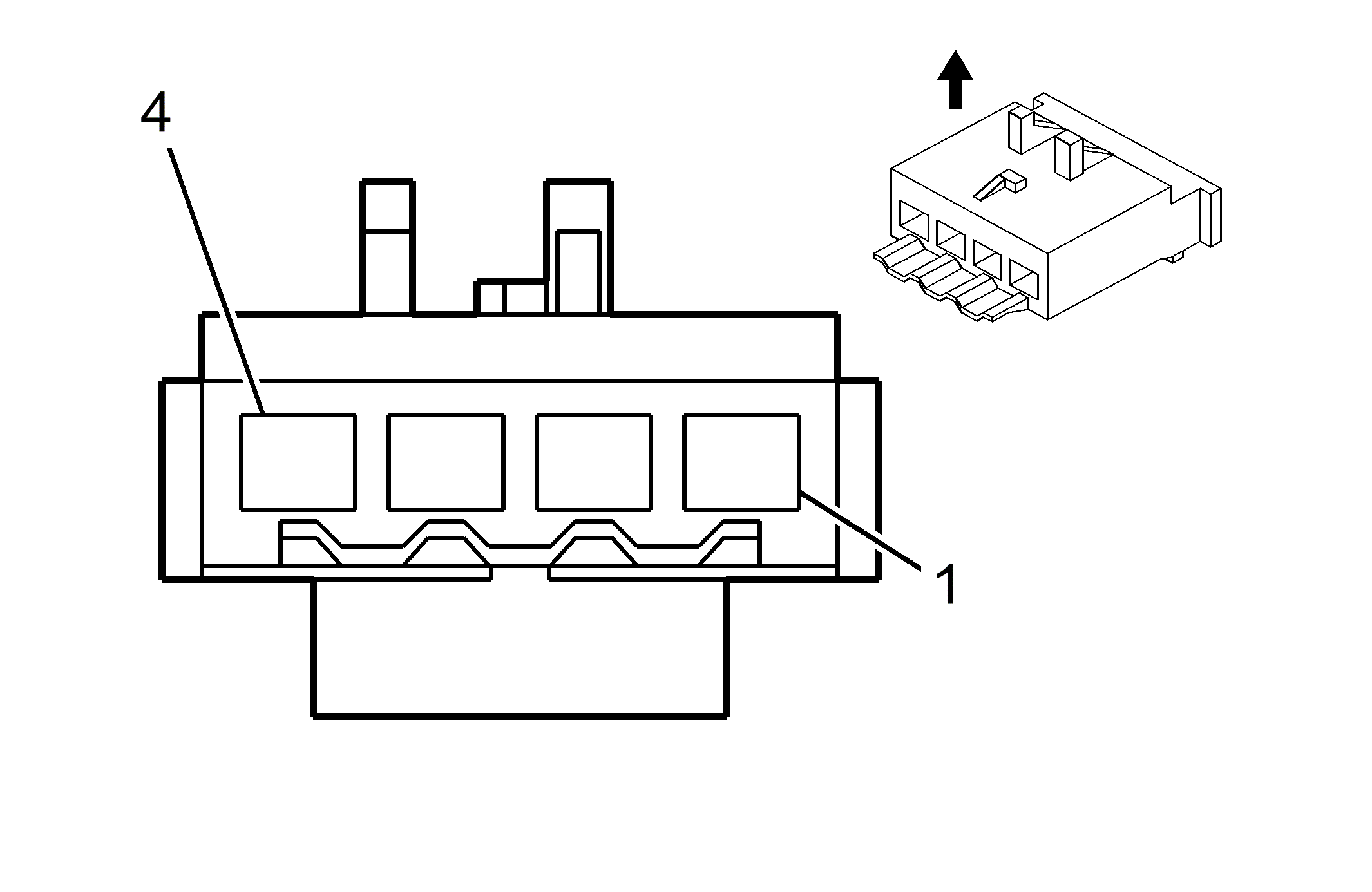

Inflatable Restraint I/P Module
Courtesy of GENERAL MOTORS CORP. Inflatable Restraint I/P Module
| Pin |
Wire |
Circuit |
Function |
| 1 |
0.5 YE |
3025 |
I/P Module - Stage 1 - High Control |
| 2 |
0.5 OG |
3024 |
I/P Module - Stage 1 - Low Control |
| 3 |
0.5 GY |
3027 |
I/P Module - Stage 2 - High Control |
| 4 |
0.5 PU |
3026 |
I/P Module - Stage 2 - Low Control |
Connector Part Information
- OEM: 15422521
- Service: See Catalog
- Description: 4-Way F 2.8 Apex, Sealed (YE)
|
Terminal Part Information
- Terminal/Tray: See Terminal Repair Kit
- Core/Insulation Crimp: See Terminal Repair Kit
- Release Tool/Test Probe: See Terminal Repair Kit
|
