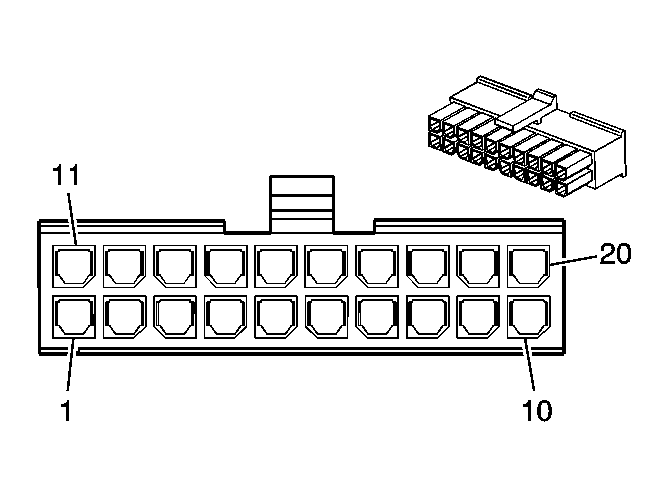

Generator Battery Disconnect Control Module X1 (HP7)
Courtesy of GENERAL MOTORS CORP. Generator Battery Disconnect Control Module X1 (HP7)
| Pin |
Wire |
Circuit |
Function |
| 1 |
0.5 BK |
- |
Battery Ground |
| 2 |
0.5 WH |
- |
Battery 2 Voltage |
| 3 |
0.5 BN |
- |
Generator Battery Temperature Sensor 1A Control |
| 4 |
0.5 WH/BN |
- |
Low Reference |
| 5 |
0.5 GY |
- |
Generator Battery Temperature Sensor 1B Control |
| 6 |
0.5 WH/GY |
- |
Low Reference |
| 7 |
0.5 PU |
- |
Generator Battery Temperature Sensor 2A Control |
| 8 |
0.5 WH/PU |
- |
Low Reference |
| 9 |
0.5 WH/RD |
- |
5-Volt Reference |
| 10 |
0.5 BN |
- |
Current Sensor Signal (Low Range) |
| 11 |
0.5 D-GN |
- |
Battery 1 Voltage |
| 12 |
0.5 RD |
- |
Battery 3 Voltage |
| 13 |
0.5 YE |
- |
Generator Battery Temperature Sensor 2B Control |
| 14 |
0.5 WH/YE |
- |
Low Reference |
| 15 |
0.5 OG |
- |
Generator Battery Temperature Sensor 3A Control |
| 16 |
0.5 WH/OG |
- |
Low Reference |
| 17 |
0.5 L-BU |
- |
Generator Battery Temperature Sensor 3B Control |
| 18 |
0.5 WH/BK |
- |
Low Reference |
| 19 |
0.5 BK/WH |
- |
Low Reference |
| 20 |
0.5 WH/GN |
- |
Current Sensor Signal (Low Range) |
Connector Part Information
- OEM: 15324448
- Service: 15324448
- Description: 20-Way F Micro-Fit (BK)
|
Terminal Part Information
- Terminal/Tray: See Terminal Repair Kit
- Core/Insulation Crimp: See Terminal Repair Kit
- Release Tool/Test Probe: See Terminal Repair Kit
|
