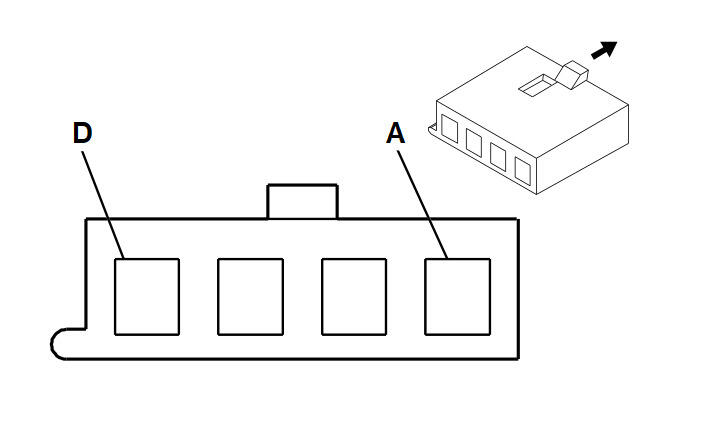

Generator Battery 1 (HP7)
Courtesy of GENERAL MOTORS CORP. Generator Battery 1 (HP7)
| Pin |
Wire |
Circuit |
Function |
| A |
0.5 BN |
- |
Generator Battery Temperature Sensor 1A Control |
| B |
0.5 WH/BN |
- |
Low Reference |
| C |
0.5 GY |
- |
Generator Battery Temperature Sensor 1B Control |
| D |
0.5 WH/GY |
- |
Low Reference |
Connector Part Information
- OEM: 12092162
- Service: See Catalog
- Description: 4-Way F Metri-Pack 150 Series (BK)
|
Terminal Part Information
- Terminal/Tray: See Terminal Repair Kit
- Core/Insulation Crimp: See Terminal Repair Kit
- Release Tool/Test Probe: See Terminal Repair Kit
|
