Door Lock Switch - Driver
Courtesy of GENERAL MOTORS CORP. Door Lock Switch - Driver
| Pin |
Wire |
Circuit |
Function |
| 1 |
0.35 PK/BK |
780 |
Driver Door Lock Switch Lock Signal |
| 2 |
0.35 BK |
450 |
Ground |
| 3 |
0.35 OG/BK |
781 |
Driver Door Lock Switch Unlock Signal |
| 4 |
0.35 YE |
1491 |
Backlight Lamps Control |

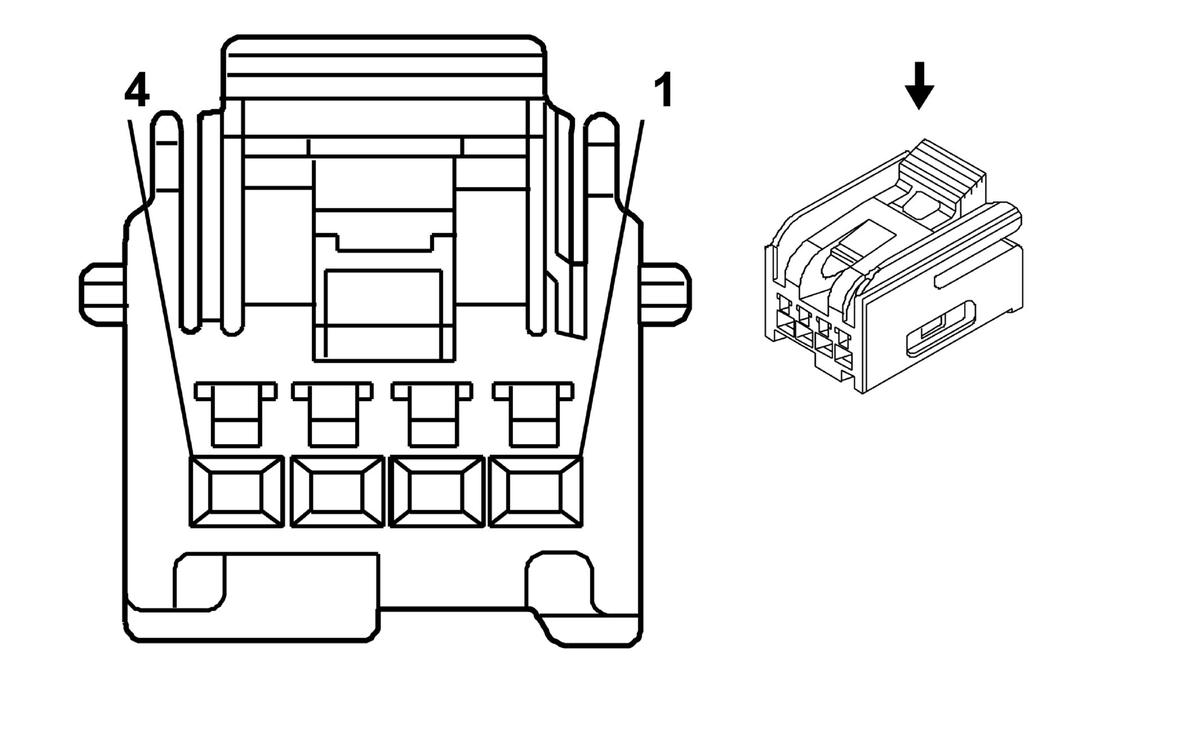

Connector Part Information
- OEM: 13513469
- Service: See Catalog
- Description: 4-Way F Micro-Pack HVT Series (BK)
|
Terminal Part Information
- Terminal/Tray: 15445905/23
- Core/Insulation Crimp: J/J
- Release Tool/Test Probe: 12180559/J-35616-16 (L-GN)
|
