Dome/Map Lamp - Front

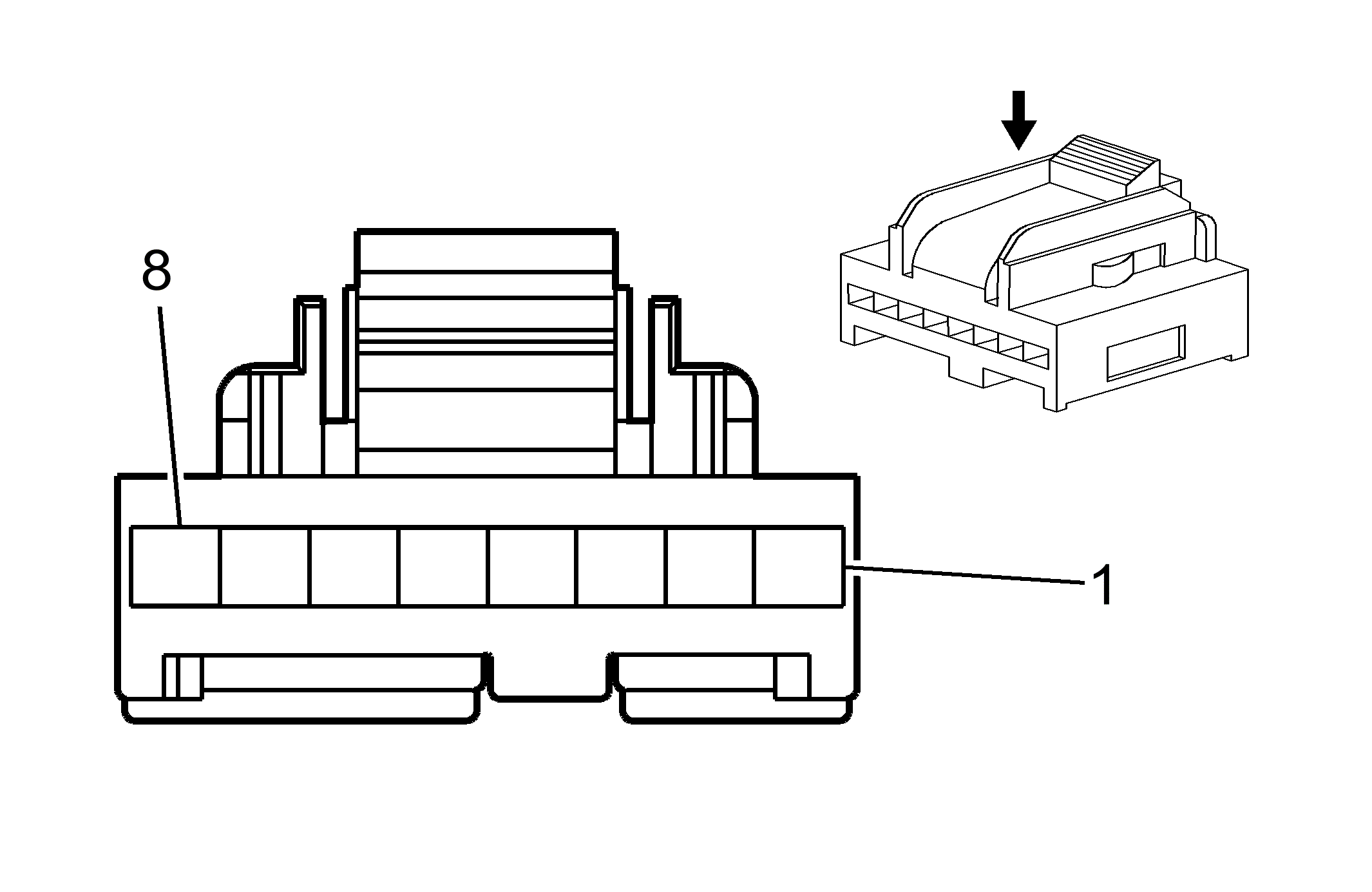

Fig 1: Dome/Map Lamp - Front
GM1835132Courtesy of GENERAL MOTORS CORP.
Dome/Map Lamp - Front

Pin Wire Circuit Function
1 - - Not Used
2 0.35 PU 328 Interior Lamp Switch Voltage Supply Circuit
3 0.5 GY/BK 690 Courtesy Lamp Supply Voltage
4 0.5 BK 650 Ground
5 - - Not Used
6 0.5 OG 1732 Courtesy Lamps Supply Voltage
7 - - Not Used
8 0.5 GY 157 Courtesy Lamp Control
Connector Part Information
  • OEM: 13513470
  • Service: See Catalog
  • Description: 8-Way F Micro-Pack HVT Series (BK)
Terminal Part Information
  • Pins: 2-4, 6, 8
  • Terminal/Tray: 15445905/23
  • Core/Insulation Crimp: J/J
  • Release Tool/Test Probe: 12180559/J-35616-16 (L-GN)
