Cooling Fan Resistor (LAT)

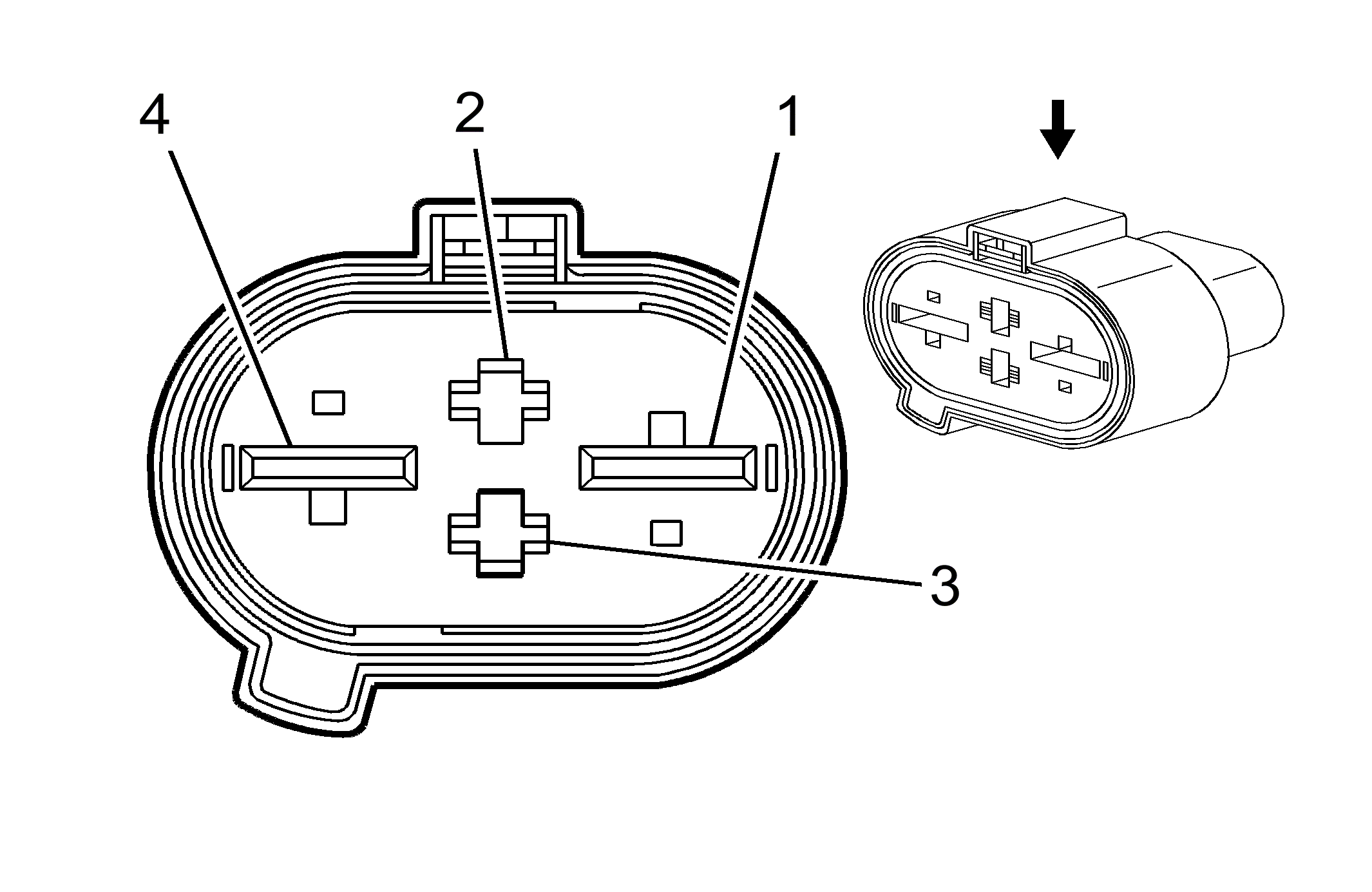

Fig 1: Cooling Fan Resistor (LAT)
GM2002691Courtesy of GENERAL MOTORS CORP.
Cooling Fan Resistor (LAT)

Pin Wire Circuit Function
1 3 GY 532 Cooling Fan Motor Supply Voltage
2 - - Not Used
3 3 L-BU 409 Cooling Fan Low Reference
4 - - Not Used
Connector Part Information
  • OEM: 10756588
  • Service: See Catalog
  • Description: 4-Way F 5.8 Timer 9.5 Sealed (BK)
Terminal Part Information
  • Terminal/Tray: See Terminal Repair Kit
  • Core/Insulation Crimp: See Terminal Repair Kit
  • Release Tool/Test Probe: See Terminal Repair Kit
