Cooling Fan (LAT)

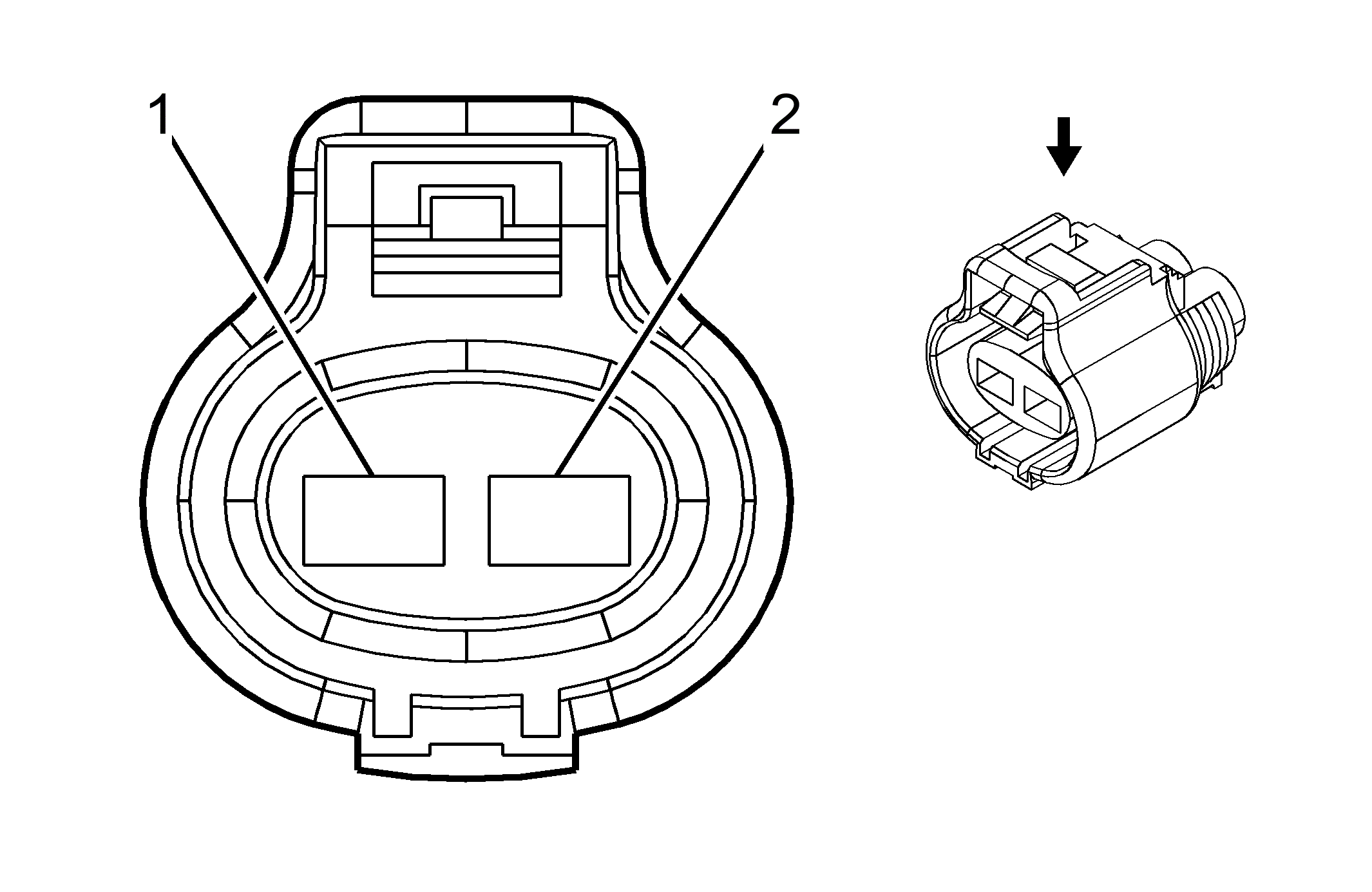

Fig 1: Cooling Fan (LAT)
GM1977737Courtesy of GENERAL MOTORS CORP.
Cooling Fan (LAT)

Pin Wire Circuit Function
1 3 BK 250 Ground
2 3 L-BU 409 Cooling Fan Motor Supply Voltage
Connector Part Information
  • OEM: 15380370
  • Service: See Catalog
  • Description: 2-Way F 187, Sealed (BK)
Terminal Part Information
  • Terminal/Tray: 8100-0468/6
  • Core/Insulation Crimp: F/5
  • Release Tool/Test Probe: 12094430/J-35616-40 (BU)
