Backup Lamp - Left

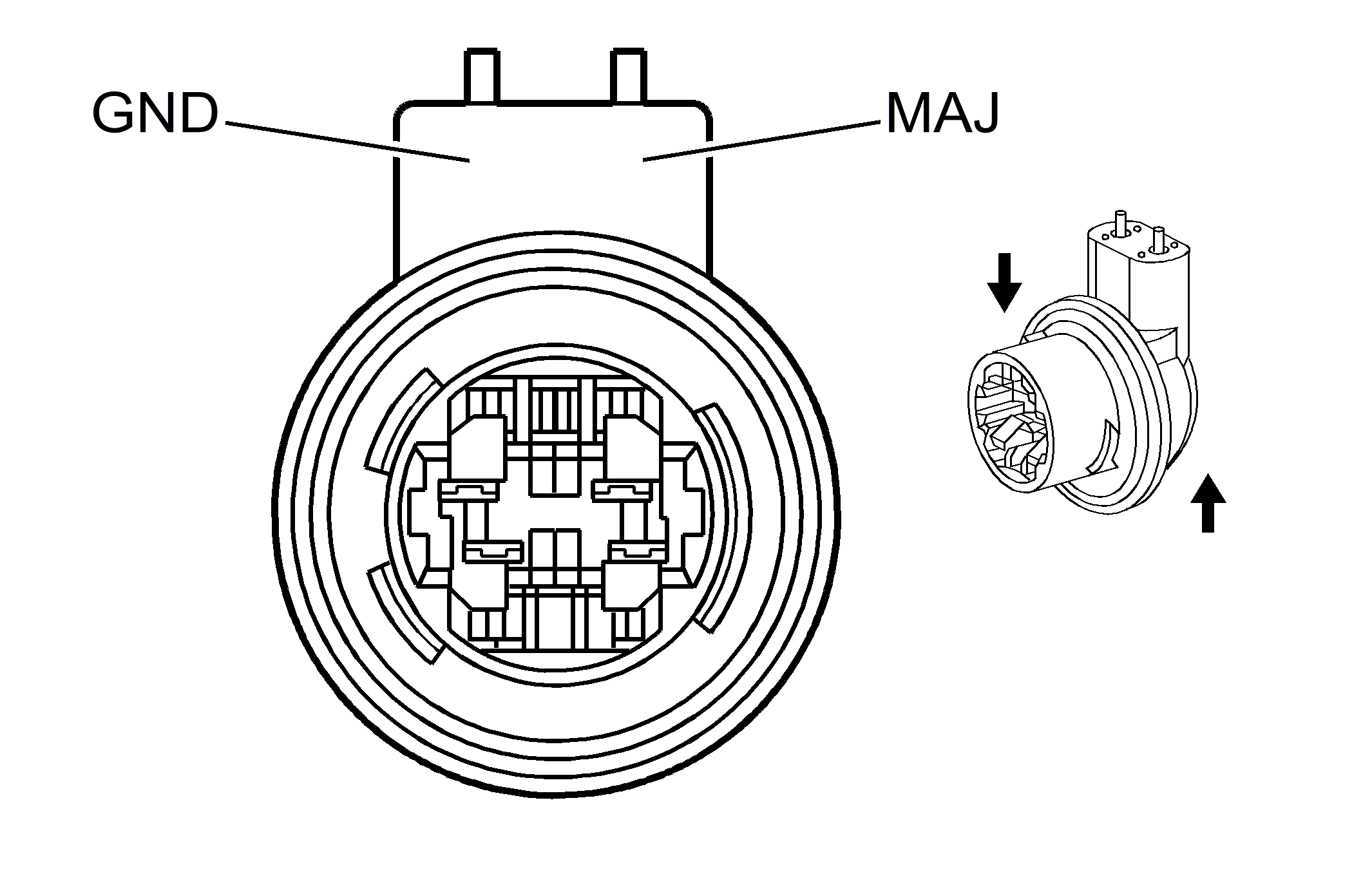

Fig 1: Backup Lamp - Left
GM1290411Courtesy of GENERAL MOTORS CORP.
Backup Lamp - Left

Pin Wire Color Circuit No. Function
MAJ 0.5 L-GN 24 Backup Lamp Supply Voltage
MIN - - Not Used
GND 0.8 BK 650 Ground
Connector Part Information
  • OEM: 021940259
  • Service: See Catalog
  • Description: 3-Way F Bulb 3057 Socket (GY)
