Air Temperature Sensor - Upper (C68)

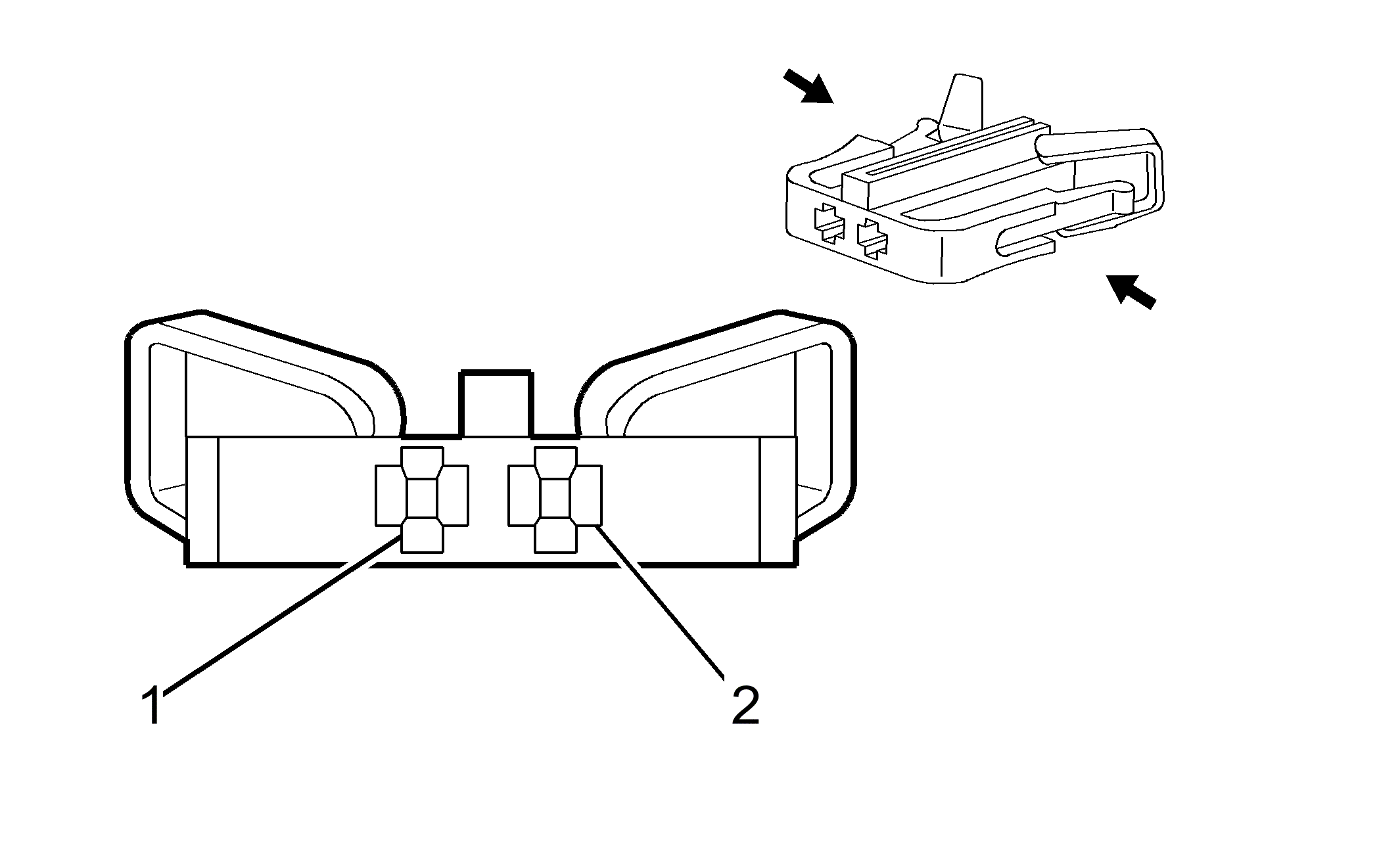

Fig 1: Air Temperature Sensor - Upper (C68)

Courtesy of GENERAL MOTORS CORP.

Air Temperature Sensor - Upper (C68)

Pin	Wire	Circuit	Function
1	0.35 BN	516	Upper Air Temperature Sensor Signal
2	0.35 YE	61	Low Reference

Connector Part Information  OEM: 13069.669.696 Service: See Catalog Description: 2-Way F (BK)

Terminal Part Information  Terminal/Tray: See Terminal Repair Kit Core/Insulation Crimp: See Terminal Repair Kit Release Tool/Test Probe: See Terminal Repair Kit
