Hood Latch Replacement

WARNING: This page is about a different car, the 2006 Buick Lucerne. However, it is still accessible from the selected car via links, so may be relevant.

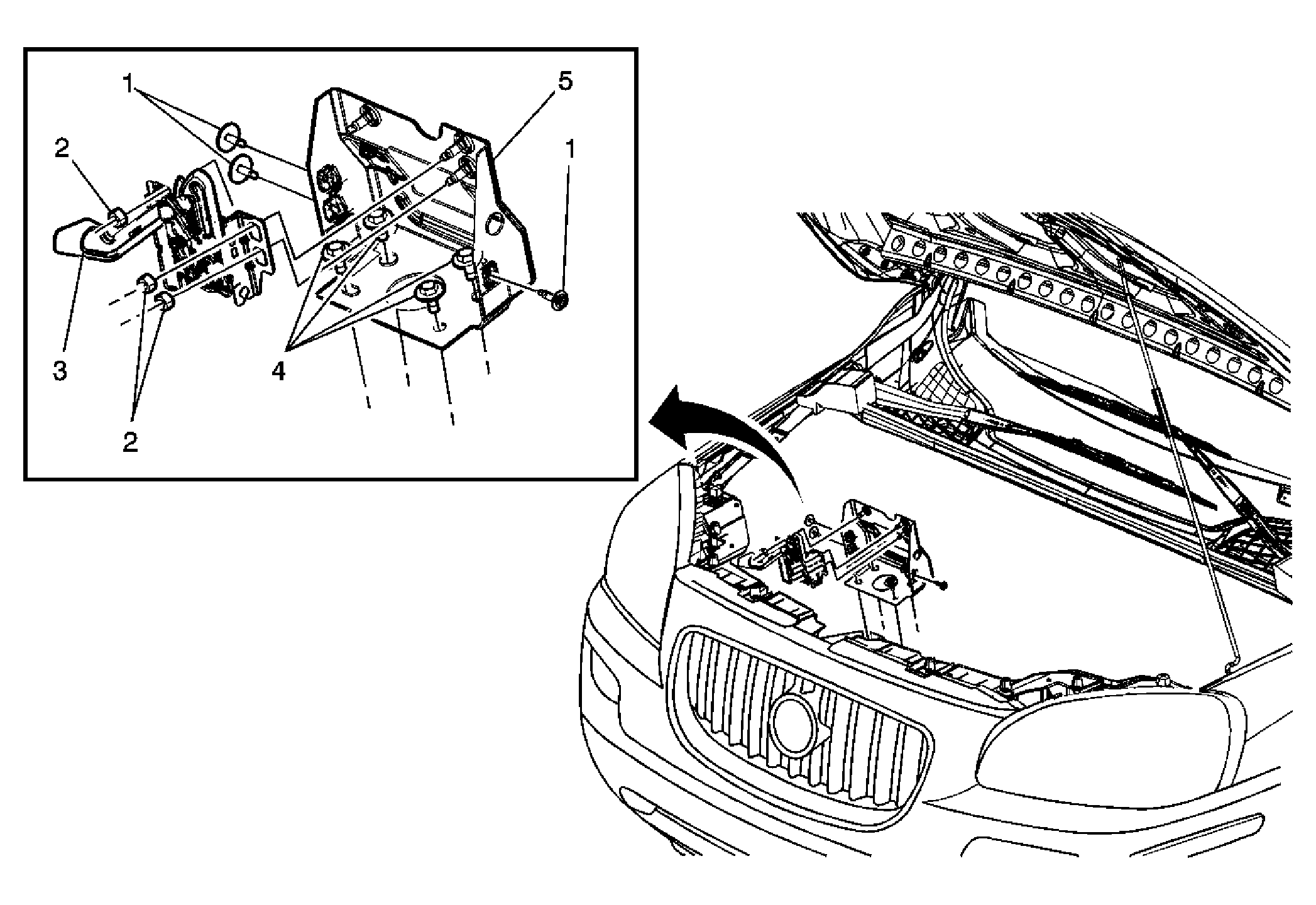

Fig 1: Identifying Hood Latch
GM1535119Courtesy of GENERAL MOTORS CORP.
Hood Latch Replacement

Callout Component Name
Preliminary Procedure:
Remove the sight shield. Refer to Front Compartment Sight Shields Replacement .
1 Hood Latch Bolts (Qty: 3)
NOTE: Refer to Fastener Notice .

Tighten:  10 N.m (89 lb in)
2 Hood Latch
Tip:
  • Disconnect the release cable.
  • Disconnect the electrical connector for the remote start, if equipped.
