Hood Hinge Replacement

WARNING: This page is about a different car, the 2006 Buick Lucerne. However, it is still accessible from the selected car via links, so may be relevant.

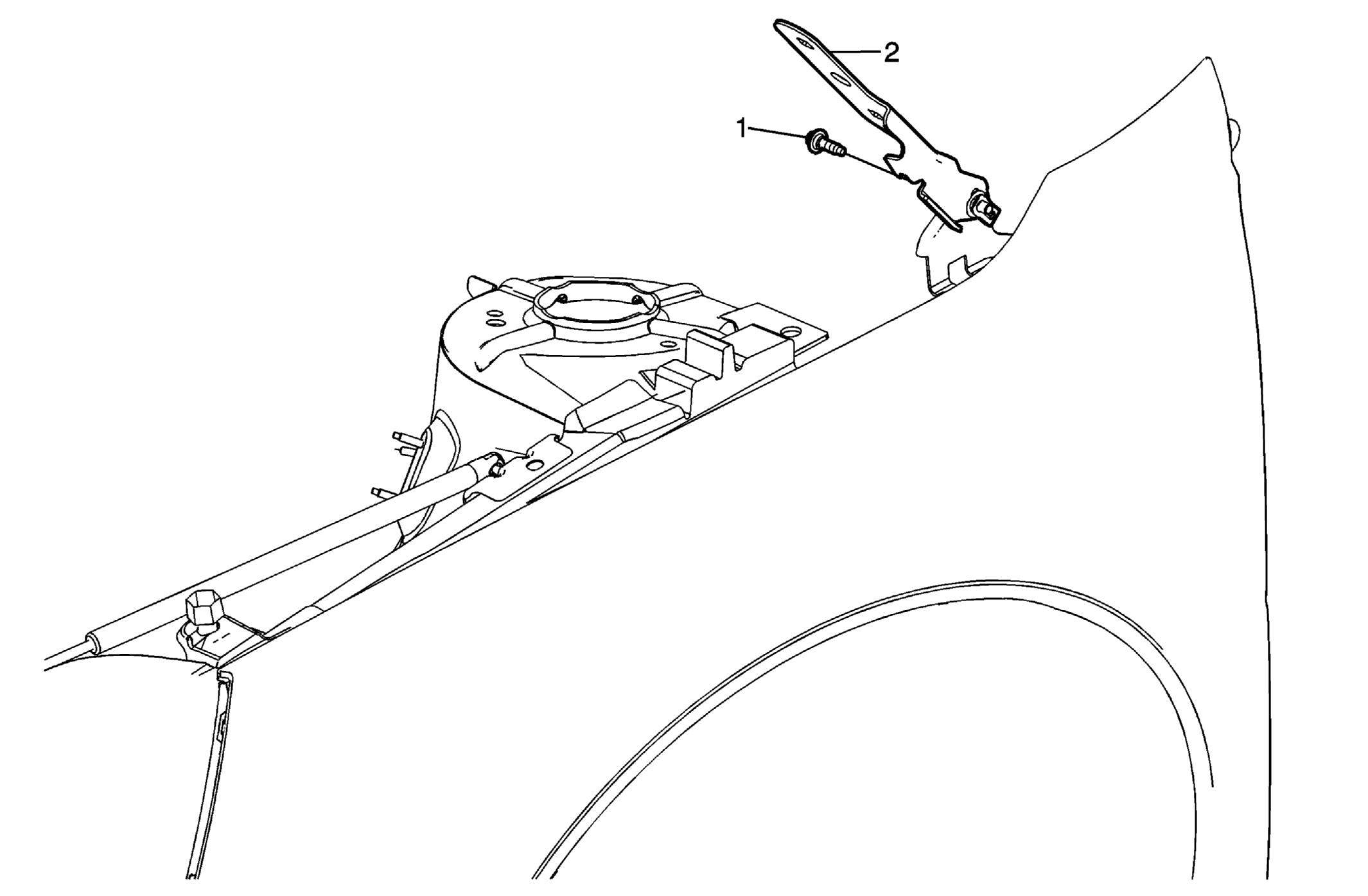

Fig 1: Identifying Hood Hinge

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
NOTE: Refer to Fastener Notice . Fastener Tightening Specifications: Refer to Fastener Tightening Specifications . Preliminary Procedure Remove hood insulator. Refer to Hood Insulator Replacement . Remove hood. Refer to Hood Replacement .
1	Hood Hinge Bolt Tighten: 10 N.m (89 lb in)
2	Hood Hinge

Callout

Component Name

NOTE: Refer to Fastener Notice .

Fastener Tightening Specifications: Refer to Fastener Tightening Specifications .

Preliminary Procedure

Remove hood insulator. Refer to Hood Insulator Replacement .
Remove hood. Refer to Hood Replacement .

Hood Hinge Bolt

Tighten: 10 N.m (89 lb in)

Hood Hinge
