Shift Lock Control Schematics

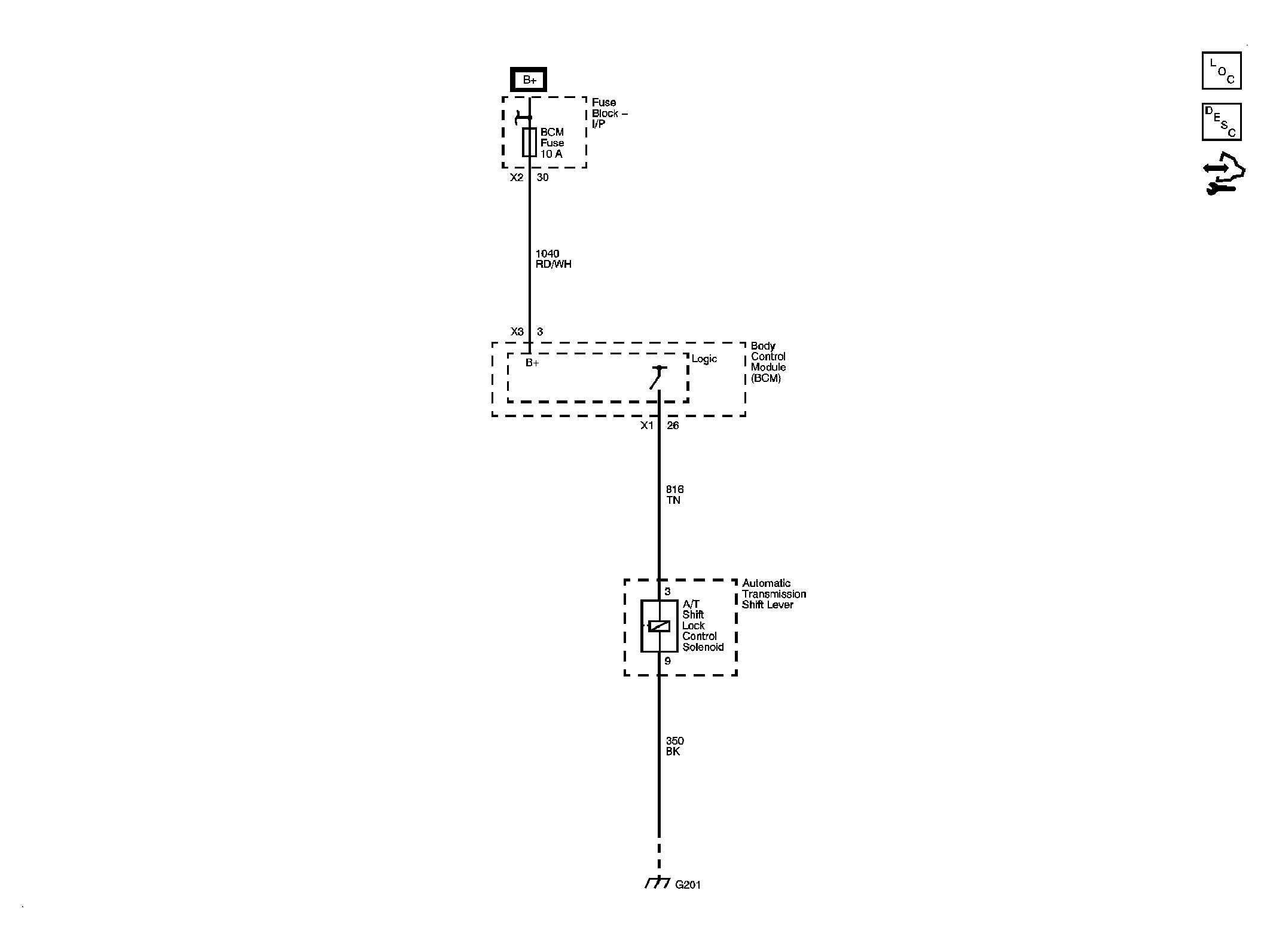

Fig 1: Shift Lock Control - Schematic

GM1883270

Courtesy of GENERAL MOTORS CORP.
