Power Moding Schematics

WARNING: This page is about a different car, the 2008 Buick Lucerne. However, it is still accessible from the selected car via links, so may be relevant.

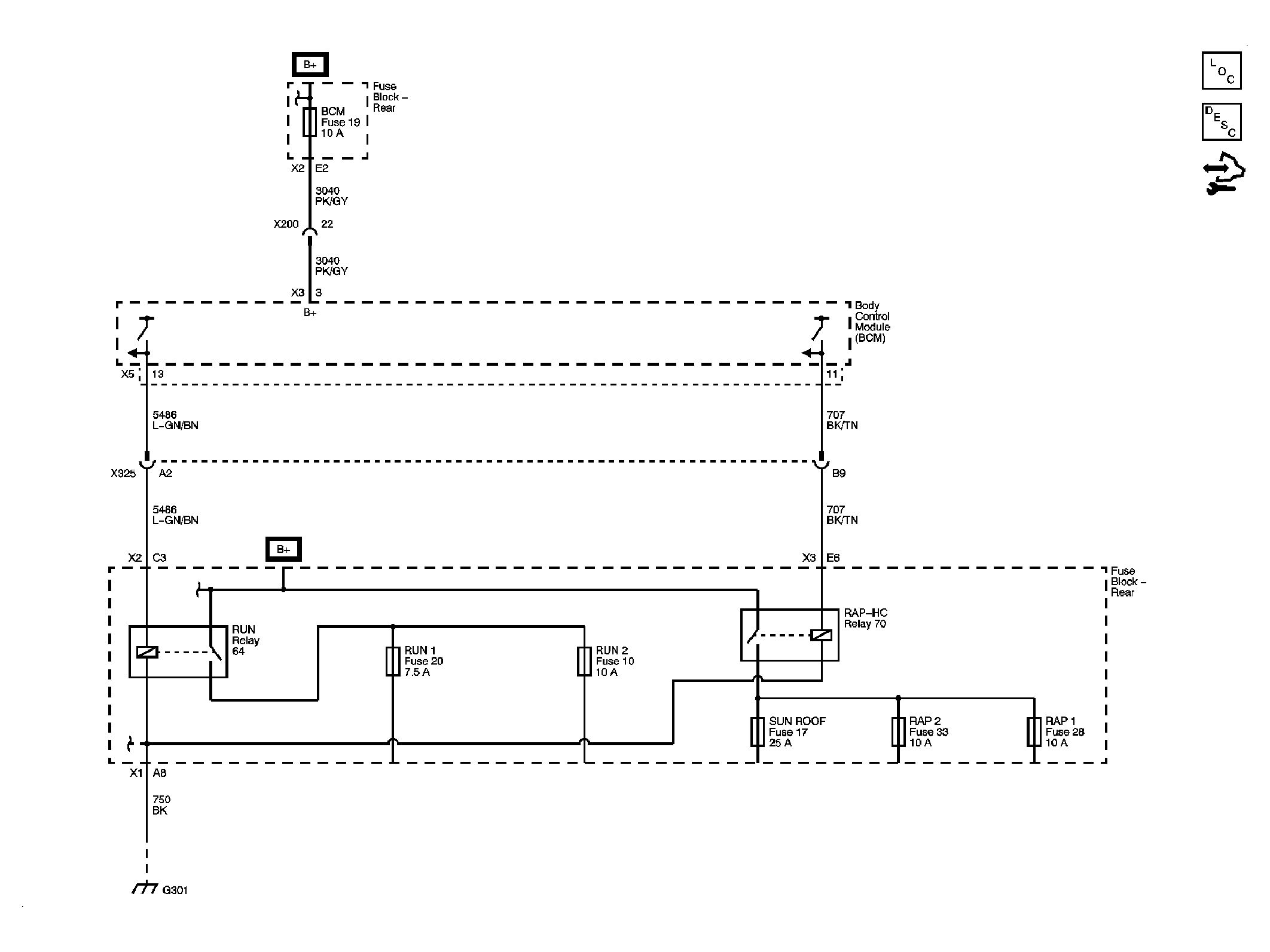

Fig 1: IGN I/II
GM1902883Courtesy of GENERAL MOTORS CORP.

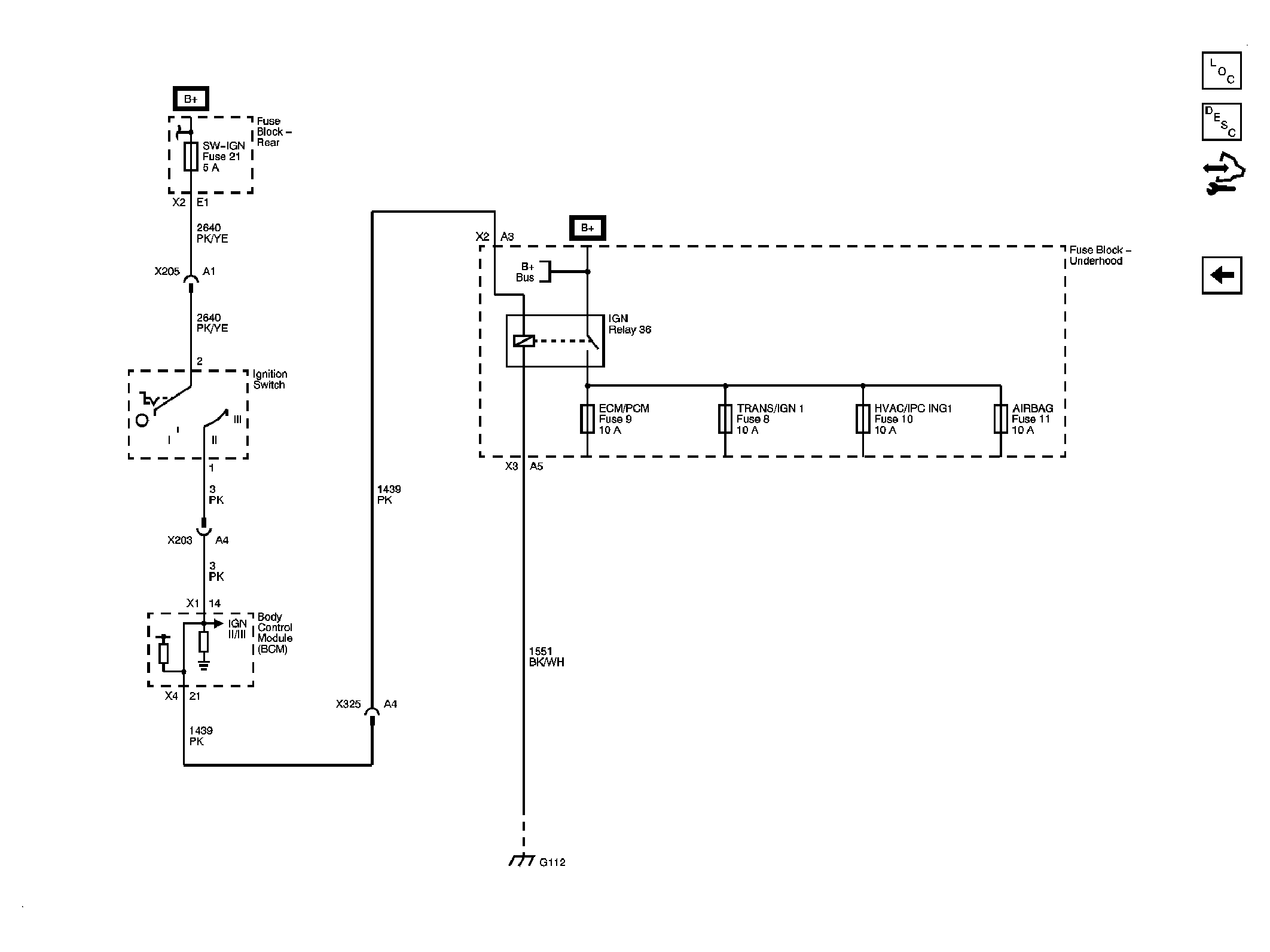

Fig 2: IGN II/III
GM1902884Courtesy of GENERAL MOTORS CORP.
