Schematic and Routing Diagrams: Schematics

WARNING: This page is about a different car, the 2007 Chevrolet Malibu. However, it is still accessible from the selected car via links, so may be relevant.

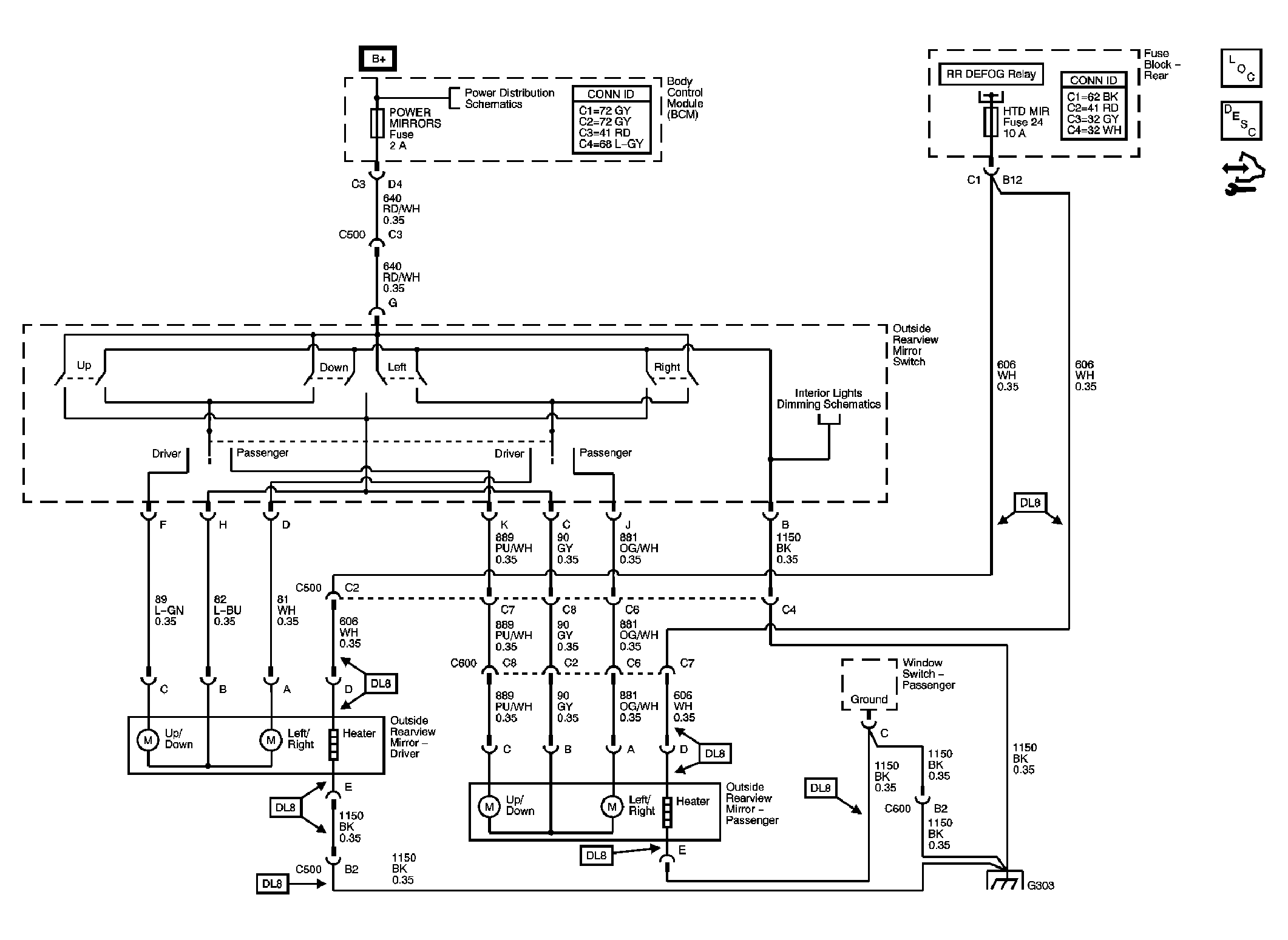

Fig 1: Outside Rearview Mirror - Schematic

Courtesy of GENERAL MOTORS CORP.
