Axle Seals Replacement

WARNING: This page is about a different car, the 2006 Cadillac DTS and 2006 Buick Lucerne. However, it is still accessible from the selected car via links, so may be relevant.

Tools Required

J 39051-1 Right Seal Driver. See Special Tools .
J 39051-2 Left Seal Driver. See Special Tools .

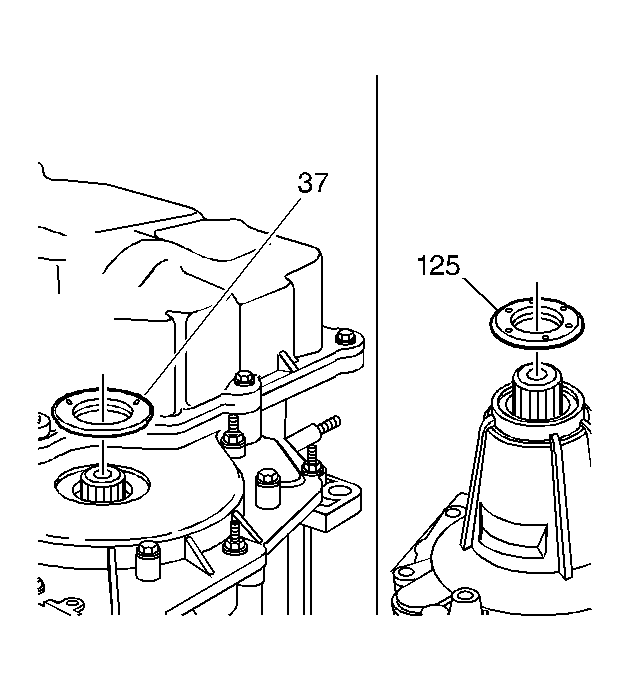

Fig 1: Prying Out Right And Left Axle Seals

Courtesy of GENERAL MOTORS CORP.

Using a screw driver remove the right and left axle seals (37, 125) by prying them out.

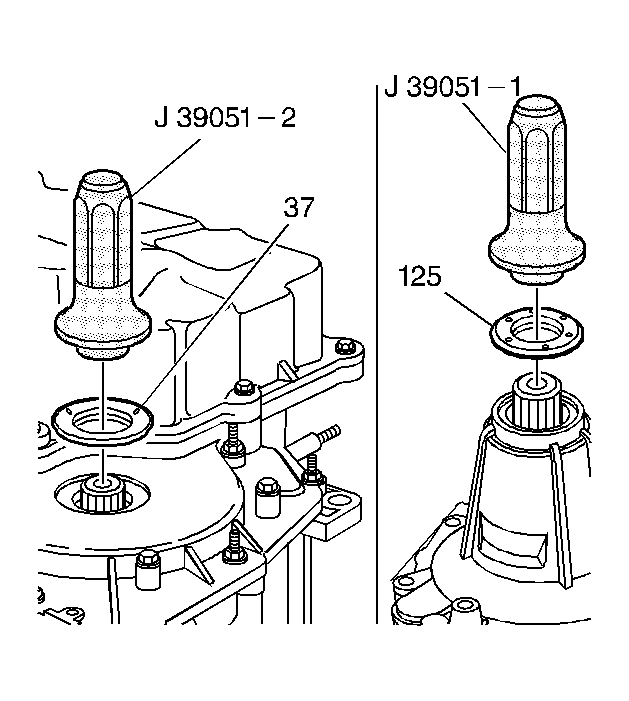

Fig 2: Installing Axle Seals With J 39051-1 & J 39051-2

Courtesy of GENERAL MOTORS CORP.

Using the J 39051-1 and the J 39051-2 , install the new axle seals (37, 125). See Special Tools . Use the output shaft (57) to pilot the seals and the tool into the case. Ensure that the snap rings are installed on the output shaft.
