Installation Procedure

WARNING: This page is about a different car, the 2010 Chevrolet Malibu. However, it is still accessible from the selected car via links, so may be relevant.

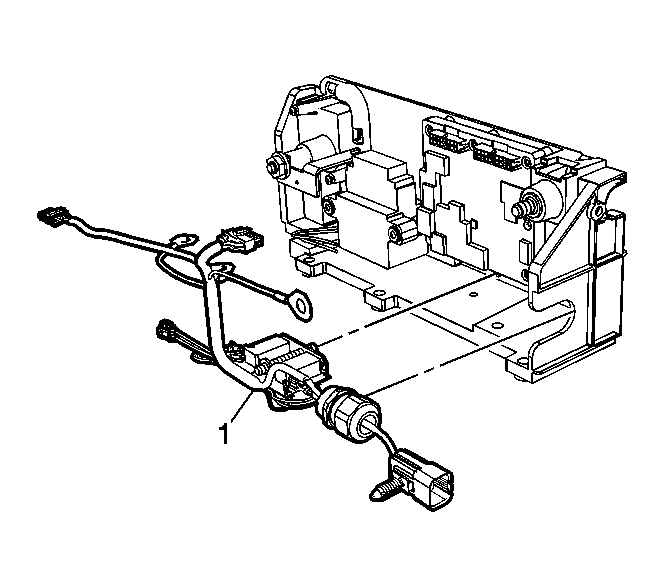

Fig 1: Battery Enegry Control Module Wiring Harness

Courtesy of GENERAL MOTORS CORP.

Install the battery enegry control module wiring harness (1).

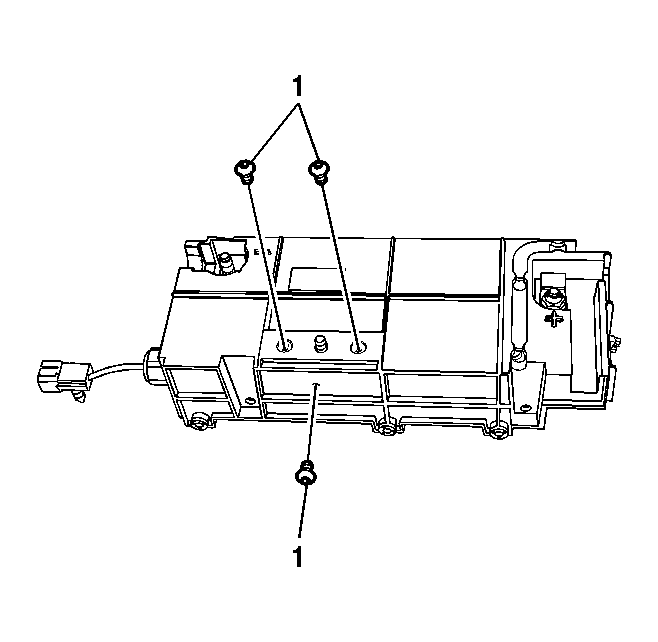

Fig 2: Wire Harness Screws

Courtesy of GENERAL MOTORS CORP.

Install the wire harness screws (1) and tighten to 8 N.m (71 lb in).

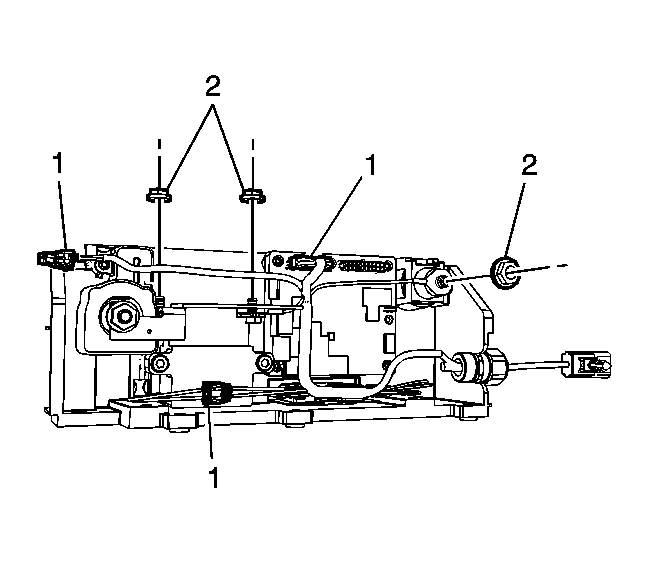

Fig 3: Battery Enegry Control Module Wire Harness Nuts And Electrical Connectors

Courtesy of GENERAL MOTORS CORP.

Connect the electrical connectors (1).
Install the wire harness nuts (2) and tighten to 8 N.m (71 lb in).
Install the battery enegry control module. Refer to Battery Energy Control Module Replacement .
