Battery Energy Control Module Cover Replacement
WARNING: This page is about a different car, the 2010 Chevrolet Malibu. However, it is still accessible from the selected car via links, so may be relevant.

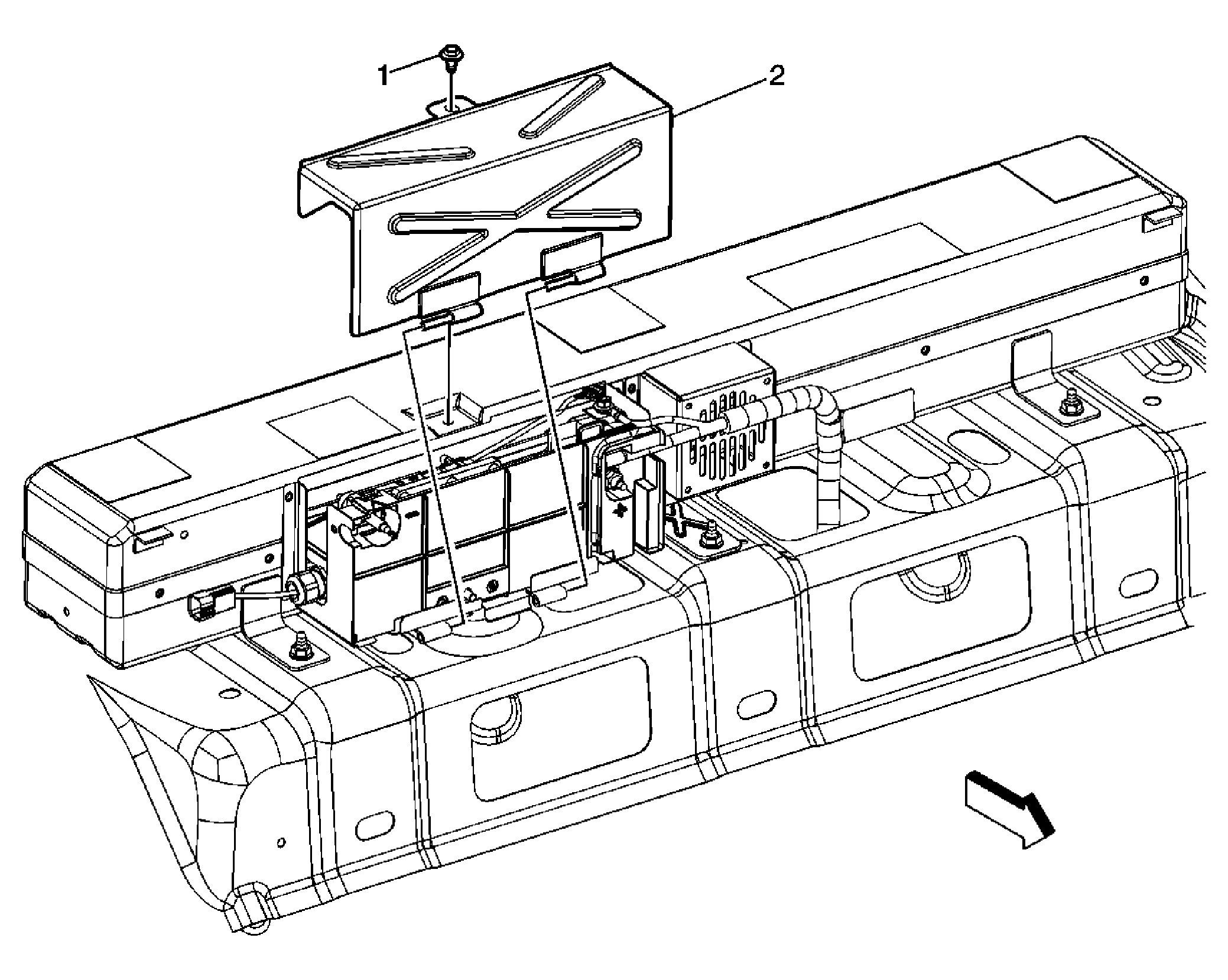

| Callout | Component Name |
|---|---|
| Preliminary Procedure: Disconnect the hybrid battery. Refer to Hybrid Battery Service Disconnect/Connect . |
|
| 1 | Fastener
CAUTION:
Refer to Fastener Caution
.
Tighten: 10 N.m (89 lb in) |
| 2 | Generator Battery Disconnect Control Module Cover |
