Installation Procedure

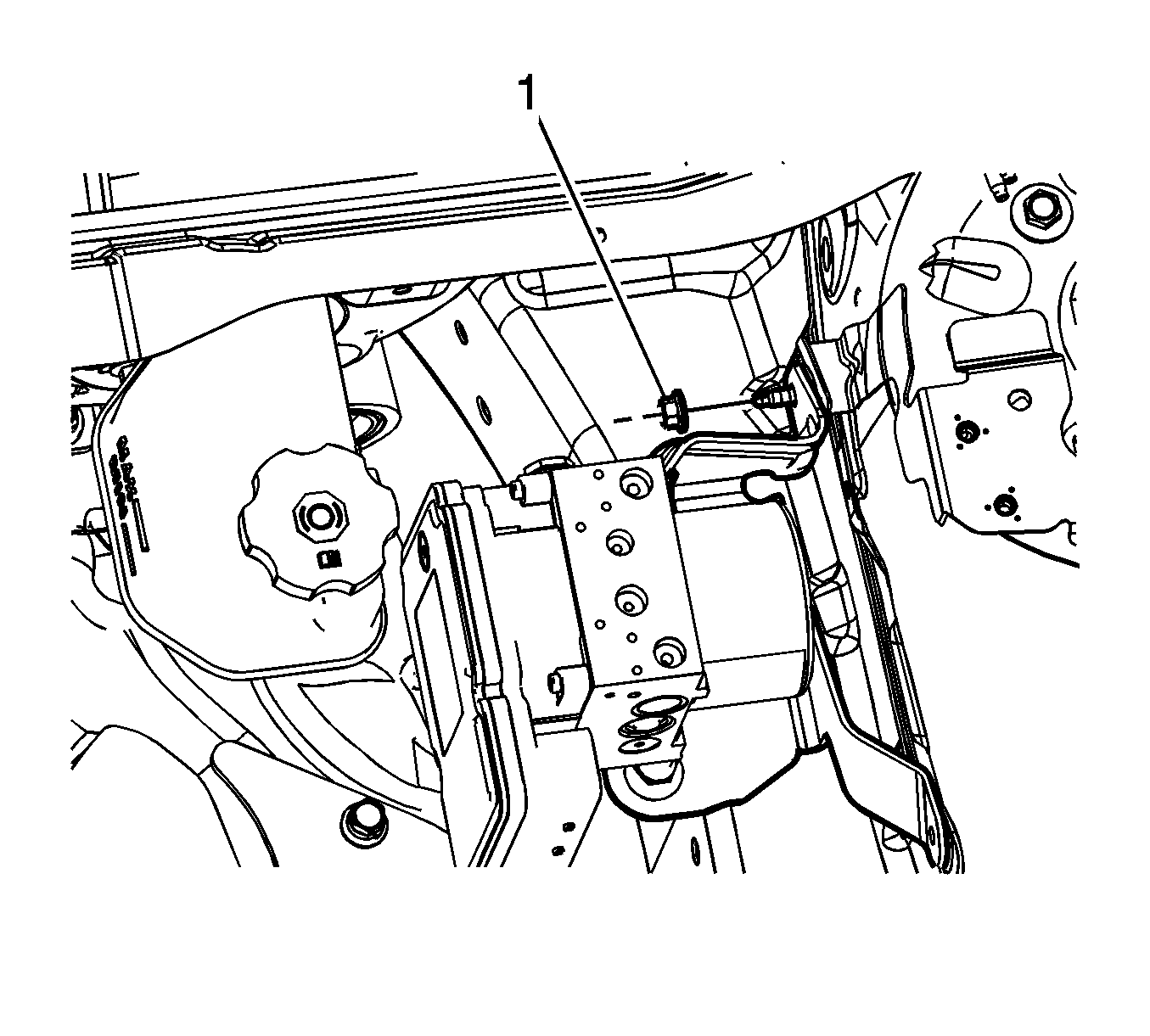

    Fig 1: BPMV Bracket Nut
    GM1873935Courtesy of GENERAL MOTORS CORP.
  1. Install the BPMV bracket.
  2. Loosely install the BPMV bracket nut (1).
    3. NOTE: Refer to Fastener Notice .

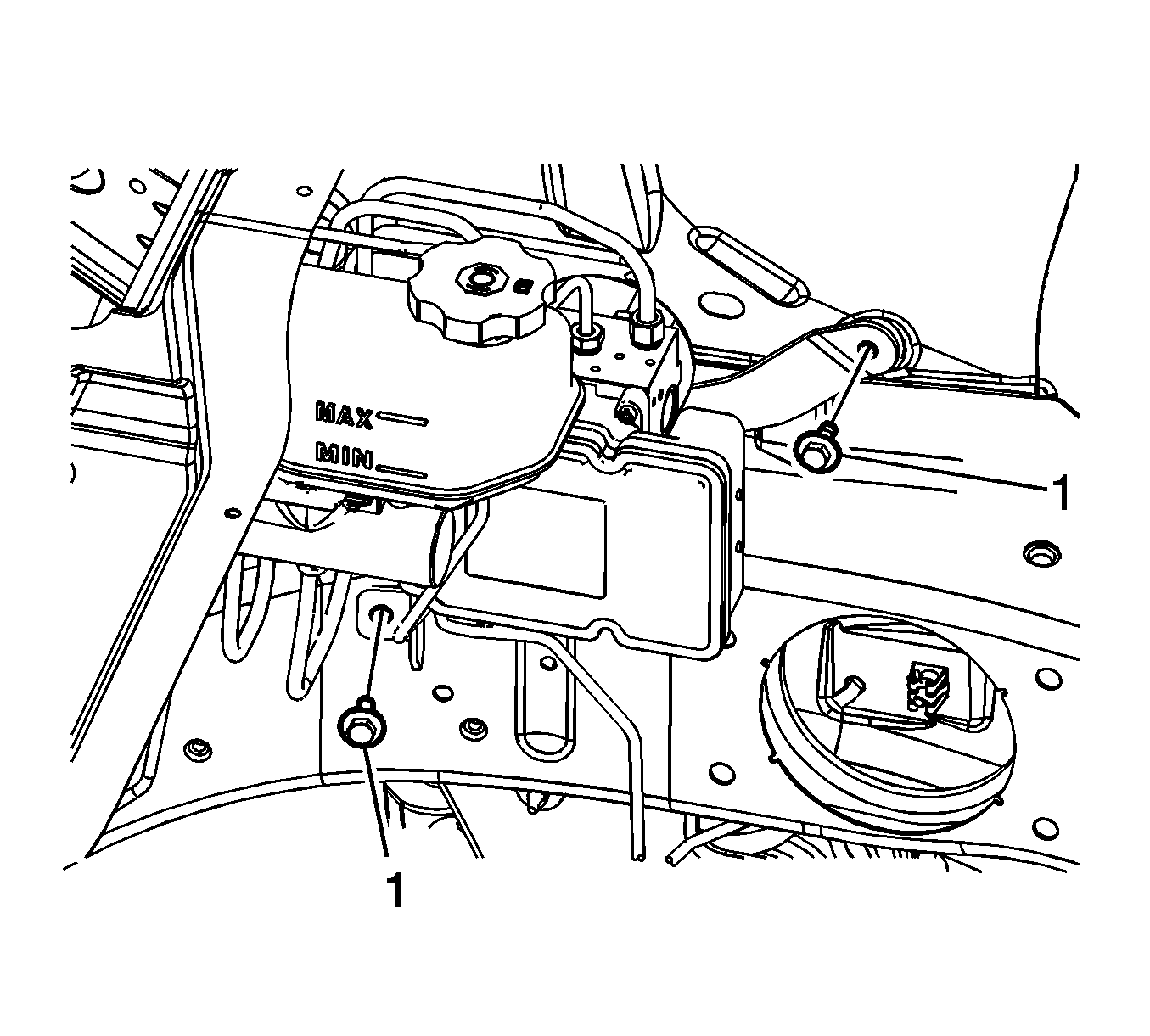

    Fig 2: BPMV Bracket Bolts
    GM1873934Courtesy of GENERAL MOTORS CORP.
  3. Install the 2 BPMV bracket bolts (1).

    Tighten:  Tighten the bolts to 10 N.m (89 lb in).

  4. Tighten the BPMV bracket nut.

    Tighten:  Tighten the nut to 10 N.m (89 lb in).

    5. Fig 3: BPMV Assembly
    GM1873931Courtesy of GENERAL MOTORS CORP.
  5. Carefully position the BPMV assembly (1) to the BPMV bracket insulators.
    6. Fig 4: BPMV Bolt
    GM1873930Courtesy of GENERAL MOTORS CORP.
  6. Install the BPMV bolt (1).

    Tighten:  Tighten the bolt to 10 N.m (89 lb in).

  7. Install the underhood electrical center. Refer to Underhood Electrical Center or Junction Block Replacement .
