Driver Footrest Replacement

WARNING: This page is about a different car, the 2010 Saturn Sky and 2010 Pontiac Solstice. However, it is still accessible from the selected car via links, so may be relevant.

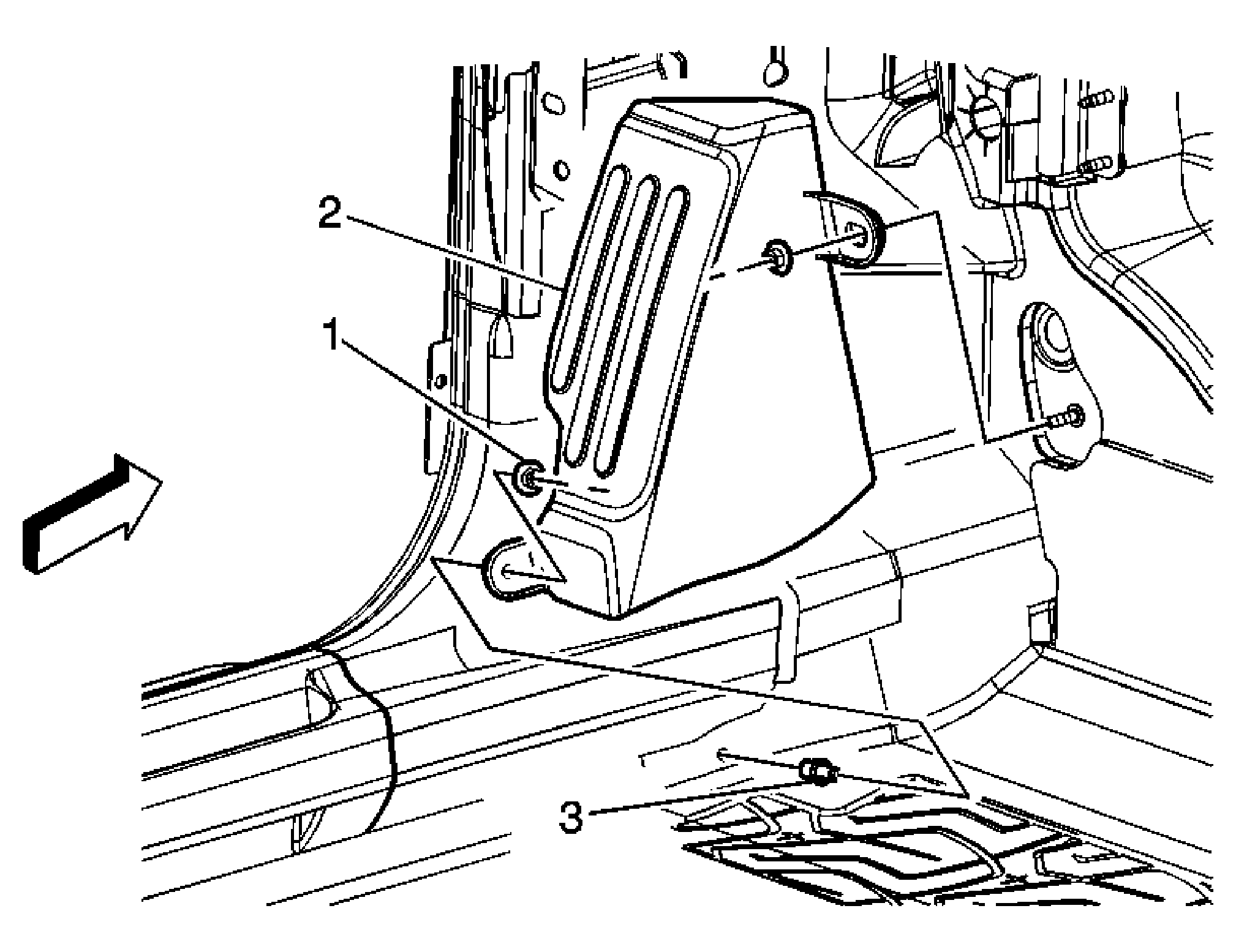

Fig 1: View Of Foot Rest, Stud & Nuts
GM1581533Courtesy of GENERAL MOTORS CORP.
Callout Component Name
Preliminary Procedure:
Remove the front hinge pillar molding. Refer to Body Hinge Pillar Trim Panel Replacement .
1 Driver Foot Rest Nut (Qty: 2)
CAUTION: Refer to Fastener Caution .

Procedure:
Remove the push-on rubber covers to access the nuts.

Tighten:  6 N.m (53 lb in)
2 Driver Foot Rest Assembly
3 Driver Foot Rest Stud (Qty: 2)
